Main

The delivery of transcription factors is a central challenge in medicine. Transcription factors control every major physiological process within a cell, ranging from cell fate determination to inflammation resolution2,3,7, and have the ability to correct the fundamental causes of a wide range of diseases. For example, the transcription factor Nrf2 transcribes genes that resolve states of chronic oxidative stress and inflammation, and can protect against numerous incurable inflammatory diseases, such as atherosclerosis, Alzheimer’s and drug-induced liver failure4,8,9. Therapeutics based on transcription factors, such as Nrf2, have tremendous therapeutic potential, but have been challenging to develop as therapeutics because of delivery problems4,10,11. Also, there is a great need for new transcription-factor delivery vehicles9,12.

Here, we present a transcription-factor delivery vehicle, termed DARTs, which can deliver Nrf2 to the liver and rescue mice from acute liver failure. The chemical structure of the DARTs and the mechanism by which they are designed to deliver transcription factors are shown in Fig. 1. DARTs are composed of an oligonucleotide that contains an Nrf2-binding sequence and hydrophobic C32 alkyl chains that are ‘masked’ by acid-cleavable galactose residues, which are conjugated with acetal linkages13. The DARTs are able to complex Nrf2 because they contain an Nrf2 promoter sequence, which binds Nrf2 with high affinity, and can also target hepatocytes because they have galactose conjugated to their 3′ ends. In addition, the unique molecular architecture of the DARTs allows them to be pH-sensitive membrane-disruptive agents, and disrupt endosomes efficiently with minimal toxicity. The DARTs are designed to have minimal toxicity while they are circulating in the blood, because at pH 7.4 their hydrophobic domains are unable to interact with cell membranes owing to the adjacent galactose groups. However, after endocytosis, the galactose groups of the DARTs are cleaved as a result of hydrolysis, and this activates the hydrophobic domains and allows them to disrupt the endosomal membrane.

Figure 1: DARTs are multifunctional oligonucleotides that can deliver the transcription factor Nrf2 in vivo.
figure 1

DARTs are composed of an oligonucleotide that contains an Nrf2 promoter sequence and hydrophobic membrane-disruptive domains that are masked by acid-cleavable galactose residues. DARTs complex Nrf2 and deliver Nrf2 to the liver by galactose-mediated endocytosis. After endocytosis, DARTs stimulate endosomal disruption and the release of Nrf2 into the cytoplasm, owing to acid-catalysed unmasking of their hydrophobic domains.

Full size image

The DARTs are designed to address several key challenges associated with delivering transcription factors in vivo. For example, transcription factors can be delivered using the DARTs by simply mixing them together. In contrast, traditional protein-delivery strategies require chemical modification of the protein or exposure to organic solvents, both of which frequently cause protein denaturation or the generation of antigenicity14. DARTs are well-defined molecules that can also be synthesized on a large scale, and avoid the characterization and manufacturing problems associated with self-assembled systems. In addition, DARTs are able to disrupt endosomes without using cationic peptides or polymers, and thus overcome the toxicity problems associated with traditional endosomal-disruptive strategies15. Finally, the DART delivery strategy is modular, and a variety of transcription factors can potentially be delivered with the DART strategy by simply changing their oligonucleotide sequence and targeting moieties.

The pH-sensitive hydrolysis of the acetal linkage in the DARTs is a critical feature of their molecular design. The DARTs need to be stable at pH 7.4 to allow for circulation in the blood with low toxicity, but hydrolyse rapidly at pH 5.0 and trigger endosomal disruption, before extensive degradation in the lysosome occurs. The hydrolysis kinetics of the DARTs was measured at pH 5.0 and pH 7.4, by gel electrophoresis (see Supplementary Section 3 for details). Figure 2a demonstrates that DARTs undergo pH-sensitive hydrolysis with an estimated half-life of 41 min at pH 5.0, but have an estimated half-life of 12 h at pH 7.4. Intravenously injected galactose-containing molecules are internalized by the liver within 1 h (ref. 16), and the pH 7.4 hydrolysis kinetics of the DARTs should be suitable for delivering transcription factors to the liver. In addition, the rapid hydrolysis of the DARTs at pH 5.0 suggests that they will trigger endosomal escape before extensive degradation of Nrf2 in the lysosomes occurs.

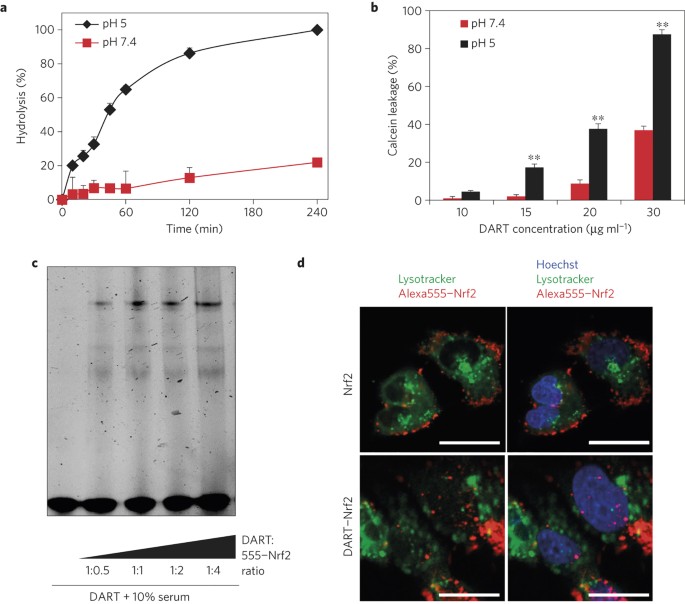

Figure 2: The DARTs are acid-sensitive endosomal-disruptive agents and their hydrolysis is pH sensitive.
figure 2

a, The hydrolysis of the DARTs is acid catalysed. DART hydrolysis was conducted at pH 5 and pH 7.4 PBS; mean ± s.e.m.; n = 5. b, DARTs disrupt calcein-containing liposomes in a pH-dependent manner. Liposome disruption by the DARTs was assessed by calcein leakage; mean ± s.e.m.; n = 5. ∗∗, p < 0.01. c, Nrf2 binds the DARTs in 10% serum. An electrophoretic mobility shift assay on Nrf2–DART complexes demonstrates that the migration of the DARTs is shifted after complexation with Nrf2 in serum. d, DARTs alter the intracellular delivery of Nrf2 and enhance lysosomal release. Alexa555-labelled Nrf2 (red) was complexed with the DARTs and incubated with HepG2 cells. Endosomes were counterstained with Lysotracker green. Nrf2 complexed with the DARTs has a substantially different intracellular distribution than free Nrf2, with a large fraction existing outside the lysosome, whereas free Nrf2 is predominantly on the cell membrane or in lysosomes. Scale bars, 5 μm.

Full size image

The acid-catalysed hydrolysis of the DARTs is designed to trigger endosomal disruption by unmasking of their hydrophobic domains. We therefore investigated whether DARTs could disrupt liposomes in a pH-sensitive manner using a calcein leakage assay (see Supplementary Section 4 for details). DARTs were incubated with calcein-containing liposomes at either pH 5.0 or 7.4 for 30 min, at concentrations between 10 and 30 μg ml−1, and the disruption of liposomes was measured by the increase in calcein fluorescence. Figure 2b demonstrates that DARTs have pH-sensitive membrane-disruptive properties, and can disrupt lipid bilayers in an efficient manner. For example, calcein-containing liposomes incubated with DARTs at a 20 μg ml−1 (1 μM) concentration at pH 5.0 released approximately 40% of their encapsulated calcein in 30 min, whereas liposomes incubated at pH 7.4 released only 10% of their encapsulated calcein. DARTs have a membrane-disruptive capacity similar to commonly used endosomal-disruptive polymers, such as co-polymers of diethylaminoethyl methacrylate and butyl methacrylate, which also require microgram per millilitre concentrations to disrupt membranes, and this suggests that the DARTs will be able to enhance the cytoplasmic delivery of transcription factors17.

The DARTs are designed to complex Nrf2 because they contain the antioxidant responsive element (ARE) sequence, which is a DNA sequence found in the promoter region of Nrf2-dependent genes. We performed experiments to determine whether the DARTs could complex Nrf2. The binding of the DARTs with Nrf2 was determined by a competitive enzyme-linked immunosorbent assay between DARTs and ARE DNA for binding to Nrf2. The results of this experiment are shown in Supplementary Fig. 5 (see Supplementary Section 6 for details), and demonstrate that the DARTs bind Nrf2 with an affinity similar to unmodified ARE DNA. In addition, we performed experiments to determine whether the DARTs could bind Nrf2 in serum. Alexa555–Nrf2 was complexed with the DARTs in 10% serum, and binding to the DARTs was analysed by gel electrophoresis (see Supplementary Section 8 for details). Figure 2c demonstrates that Nrf2 can complex the DARTs in 10% serum; addition of Nrf2 to DARTs generated a high-molecular-weight band that was significantly larger than the free DARTs.

We performed fluorescent microscopy experiments to determine whether DARTs could enhance the endosomal release of Nrf2. HepG2 cells were treated with DART–Alexa555–Nrf2 complexes and the intracellular localization of Nrf2 was investigated by confocal microscopy, using Lysotracker green to mark endosomes and lysosomes (see Supplementary Section 9.1 for details). Figure 2d demonstrates that DARTs can markedly alter the intracellular distribution of Nrf2, and causes a significant fraction of the delivered Nrf2 to localize in compartments distinct from lysosomes. In contrast, free Nrf2 is mostly found on the cell membrane or in lysosomes.

DARTs contain a tetravalent galactose group for hepatocyte targeting. We performed experiments to determine whether the DARTs were efficiently internalized by hepatocytes. DARTs containing Cy3 were incubated with Hepa-1C1C7 and their uptake was compared against Cy3-labelled DNA by flow cytometry (see Supplementary Section 9 for details). Figure 3a demonstrates that the DARTs markedly enhance the uptake of DNA, causing an eightfold increase in mean red fluorescence versus free DNA. On the basis of these results, we further performed in vivo biodistribution and pharmacokinetic experiments with Nrf2 complexed with DARTs, to determine whether the DARTs could enhance the accumulation of Nrf2 in the liver (see Supplementary Section 11.1 for details). Figure 3b demonstrates that the DARTs can increase the delivery of Nrf2 to the liver, causing an approximately 1.4-fold increase in liver delivery compared with free Nrf2, suggesting that the galactose targeting through the DARTs increases the delivery of Nrf2 to the liver. An increase in serum half-life was also observed with DART–Nrf2, which had a 1.3-fold increase in serum half-life over free Nrf2 (104 min versus 83 min; see Supplementary Section 11.2 for details). The 1.3-fold increase in serum half-life is consistent with the modest increase in molecular mass of Nrf2 caused by complexation with the DARTs. The molecular mass of the DART is approximately 20 kDa and the DART–Nrf2 complex should therefore have a molecular mass that is only 35% greater than free Nrf2. In addition, no evidence of systemic toxicity was observed in mice injected with Nrf2 complexed with the DARTs, as determined by blood TNF-α levels (Supplementary Fig. 9).

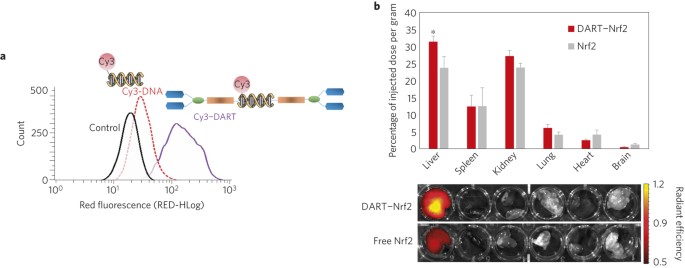

Figure 3: The DARTs can target hepatocytes and enhance the delivery of Nrf2 to the liver.
figure 3

a, Hepa-1C1C7 cells were treated with Cy3–DNA or Cy3–DART for 4 h and uptake was measured by flow cytometry. Cy3-labelled DARTs have enhanced uptake in Hepa-1C1C7 cells and have 8 times higher mean red fluorescence than free DNA. b, DARTs enhance the delivery of Nrf2 to the liver. Nrf2 labelled with IRDye 800CW-NHS-ester was complexed with the DARTs, and injected into mice. The biodistribution of Nrf2 was quantified by fluorescence 4 h after Nrf2 injection. DARTs enhance the delivery of Nrf2 to the liver by a factor of 1.4. Mean ± s.e.m., n = 6. ∗, p < 0.05. The units of radiant efficiency are ×108 p s−1 cm−2 sr−1/μW cm−2.

Full size image

DARTs are designed to deliver Nrf2 to hepatocytes, induce the expression of antioxidant genes, and protect hepatocytes from inflammatory diseases associated with oxidative stress18,19. We investigated whether DARTs could deliver Nrf2 to HepG2 cells and upregulate the transcription of antioxidant genes that are regulated by Nrf2, in particular, heme oxygenase-1 (HO-1), NAD(P)H dehydrogenase (quinone; NQO1) and glutamate-cysteine ligase catalytic subunit4,20 (GCLC). We selected these three genes for analysis because of their central role in protecting against oxidative stress, and because they are signatures of Nrf2 activity. For example, HO-1 increases carbon monoxide production and is therapeutic against a wide variety of inflammatory diseases21. In addition, NQO1 upregulates quinone antioxidant production and GCLC increases the production of glutathione, both of which protect against oxidative stress by remodelling metabolic and cell signalling pathways4,22.

Nrf2 was bound to DARTs at a 1:1 molar ratio (DART–Nrf2), incubated with HepG2 cells at a 0.6 μM concentration overnight, and then analysed for gene expression by PCR with reverse transcription (RT–PCR). As a control, HepG2 cells were treated with free Nrf2. Figure 4a demonstrates that DARTs can deliver functional Nrf2 into hepatocytes and induce the expression of Nrf2 target genes. For example, HepG2 cells treated with DART–Nrf2 had a significant increase in HO-1 expression in comparison with cells treated with Nrf2 or control cells. Similarly, DART–Nrf2 was able to increase the transcription of NQO1 and GCLC, whereas free Nrf2 had no effect on these genes.

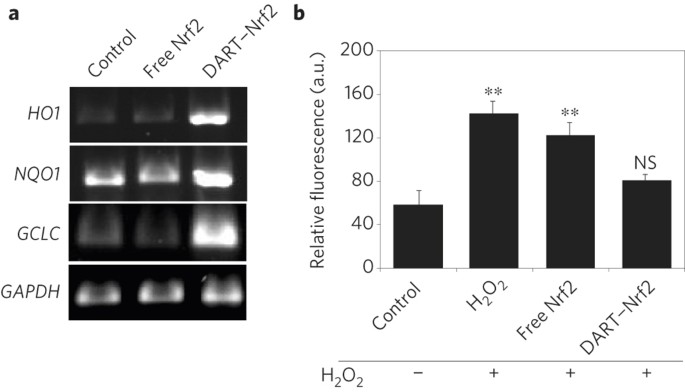

Figure 4: DARTs are able to deliver Nrf2 to hepatocytes, upregulate Nrf2 downstream genes, and can protect hepatocytes against reactive oxygen species (ROS).
figure 4

a, Nrf2 delivered by DARTs enhances the expression of HO1, NQO1 and GCLC. RT–PCR shows that HepG2 cells treated with DART–Nrf2 have upregulated mRNA expression of HO1, NQO1 and GCLC. Free Nrf2 had no effect on HO1, NQO1 and GCLC gene expression. Raw gel scans are available in Supplementary Fig. 13. b, Nrf2 delivered by DARTs reduces ROS levels in HepG2 cells stressed with hydrogen peroxide. ROS levels in hydrogen-peroxide-stressed cells were not significantly reduced by free Nrf2, whereas DART–Nrf2 decreased ROS production down to levels comparable to control cells, mean ± s.e.m., n = 9. ∗∗, p < 0.01; NS, statistically not significant.

Full size image

We also investigated whether the transcription of Nrf2 downstream genes by DART-delivered Nrf2 could protect hepatocytes from oxidative stress. HepG2 cells were pretreated with a 200 μM concentration of hydrogen peroxide for 4 h, to induce oxidative stress, and then treated with either free Nrf2 or DART–Nrf2 (0.6 μM) for 14 h. Cellular oxidative stress was measured with CM-H2DCFDA using flow cytometry (see Supplementary Section 9.3 for details). Figure 4b demonstrates that DART-delivered Nrf2 can protect hepatocytes from hydrogen-peroxide-induced oxidative stress. Cells treated with hydrogen peroxide had a 2.5-fold increase in CM-H2DCFDA oxidation, whereas this was reduced down to levels comparable to the control with DART–Nrf2. In contrast, Nrf2 by itself had a minimal effect on cellular oxidative stress levels. Thus, DARTs are able to deliver functional Nrf2, induce the transcription of antioxidant genes, and protect cells against oxidative stress.

Nrf2 delivered by DARTs has great potential for treating liver associated inflammatory diseases, such as acute liver failure and liver fibrosis, which collectively effect millions of people each year4,10,11. We investigated whether Nrf2 delivered by DARTs could protect mice against acetaminophen (APAP)-induced liver injury. APAP-induced liver injury was selected as an initial disease model for the DARTs because of the great need for new therapeutics against this disease23,24 and the well-established role of Nrf2 in protecting against APAP-induced liver injury. APAP-induced toxicity in mice was induced by the intraperitoneal injection of APAP (50 mg kg−1), and 1 h afterwards an intravenous injection of either free Nrf2 or DART–Nrf2 was given. Liver toxicity was determined 24 h later by measuring ALT levels in the serum and also by histology. In addition, liver tissue was isolated from these mice and analysed by western blotting to determine whether Nrf2 delivered by the DARTs could induce the expression of Nrf2 downstream genes (see Supplementary Section 11 for details).

Figure 5a–c demonstrates that DARTs can enhance the delivery of Nrf2 in vivo, induce the transcription of Nrf2 downstream genes, and protect mice from APAP-induced liver injury. For example, Fig. 5a demonstrates that mice receiving DART–Nrf2 and APAP had a fourfold decrease in ALT levels in comparison with mice that received APAP alone, or mice that received APAP and free Nrf2. A similar therapeutic benefit was observed in the histology sections of the mice that received DART–Nrf2 and APAP, which had a histological profile similar to healthy mice; in contrast mice receiving free Nrf2 and APAP had significant signs of toxicity (Fig. 5b). Importantly, DART–Nrf2 was able to have a therapeutic effect on APAP-treated mice, even though it was given an hour after APAP administration, suggesting that it can be effective in a clinical scenario where patients present hours after drug intake. In addition, we investigated whether Nrf2 complexed with DARTs could stimulate the transcription of Nrf2 downstream genes in vivo, by western blotting for the Nrf2 downstream genes HO1 and NQO1. Figure 5c demonstrates that Nrf2 delivered by the DARTs can increase the expression of HO1 and NQO1 in the liver, and suggests that the therapeutic effects of DART-delivered Nrf2 are due to the enhanced transcription of Nrf2 downstream genes.

Figure 5: The DARTs can deliver Nrf2 to the liver, upregulate Nrf2 downstream genes, and rescue mice from APAP-induced liver injury.
figure 5

a, Nrf2 delivered by DARTs rescues mice from APAP-induced liver injury. DART–Nrf2 complexes reduce serum ALT levels in APAP-treated mice by a factor of 4. Free Nrf2 had no effect. Nrf2 complexed with either Glu–DARTs or Gal–DNA, and free DARTs, did not cause a statistically significant reduction in ALT levels. Mean ± s.e.m., n = 10. ∗∗p < 0.01; NS, statistically not significantly different from APAP. b, Nrf2 delivered by DARTs reduces liver damage in APAP-treated mice. Histological sections of livers from APAP-treated mice showed that there was significant inflammation. In contrast, histological sections of livers from APAP mice treated with DART–Nrf2 had reduced liver damage and resembled the histological sections of healthy mice. Free Nrf2 was unable to suppress liver damage. Scale bars, 50 μm. c, Nrf2 delivered by DARTs enhances the expression of the proteins HO1 and NQO1 in the liver. APAP-treated mice were given either DART–Nrf2 or free Nrf2, and their livers were collected and western blot analysis was conducted for the proteins HO1, NQO1 and GAPDH. Mice treated with DART–Nrf2 complexes have increased HO1 and NQO1 expression in comparison with free-Nrf2- or APAP-treated mice. Control, no treatment; APAP, APAP alone; Nrf2, APAP + Nrf2; DART–Nrf2, APAP + DART–Nrf2. Raw gel scans are available in Supplementary Fig. 14.

Full size image

We performed additional experiments to determine whether the endosomal-disruptive or galactose-targeting groups of the DARTs were essential for Nrf2 delivery in vivo. To determine the importance of the endosomal-disruptive unit, we synthesized galactose-conjugated DNA and investigated its ability to deliver Nrf2 and rescue mice from APAP-induced liver injury. Figure 5a demonstrates that galactose-conjugated DNA is unable to deliver Nrf2 in vivo, demonstrating that the endosomal-disruptive unit of the DARTs is critical for efficacy. In addition, we performed experiments to determine whether the galactose-targeting groups of the DARTs were critical for Nrf2 delivery. DARTs containing glucose residues instead of galactose were synthesized and their ability to rescue mice from APAP-induced liver injury was investigated. Figure 5a demonstrates that glucose-containing DARTs were inefficient at delivering Nrf2, but were more effective at delivering Nrf2 than galactose-conjugated DNA. Thus, the galactose targeting plays a role in enhancing Nrf2 delivery in vivo, but is perhaps not as important as the endosomal disruption unit.

We have presented a multifunctional oligonucleotide, termed DARTs, which can deliver transcription factors in vivo. The DART delivery strategy has numerous potential applications given the central role of transcription factors in liver biology. In addition, it should be possible to deliver transcription factors to cell types outside the liver by using targeting groups other than galactose. Finally, the DART delivery strategy demonstrates that DNA-based scaffolds can be used to deliver DNA-binding proteins, and provides a platform for the development of DNA origami-based delivery vehicles.

Methods

Synthesis of the DARTs.

The synthesis of the DARTs is shown in detail in the Supplementary Information and is described in Supplementary Figs 1 and 2.

In vitro delivery of Nrf2 with DARTs.

HepG2 cells were cultured in DMEM media containing 10% FBS and antibiotics (penicillin and streptomycin). Cells with a passage number less than 15 were used for experiments. HepG2 and Hepa-1C1C7 cells were seeded at 40% confluency the day before experiments. Nrf2 and DARTs were mixed at equal molar ratios and incubated for 15 min in binding buffer before the addition to cells. For all in vitro studies, 0.6 μM of Nrf2 or 0.6 μM of Nrf2 complexed with 0.6 μM of DARTs was used.

RT–PCR analysis of HepG2 cells treated with Nrf2 delivered by DARTs.

HepG2 cells were treated with either free Nrf2 or DART–Nrf2 in culture media for 24 h and the RNA was extracted from the cells using the RNeasy Mini Kit with additional DNase I digestion (Qiagen), according to the manufacturer’s protocol. RNA purity and concentration were determined by measuring the optical density using an ND-1000 Spectrophotometer (NanoDrop Technologies). Purified mRNAs were normalized by total mRNA concentration, and Qiagen one-step RT–PCR was conducted with primers for HO1, NQO1, GCLC and GAPDH, which were purchased from Origene. Amplified DNAs were visualized with a ChemiDoc XRS system, after gel electrophoresis in a 1% agarose gel and staining with SYBR safe.

Intracellular localization of Nrf2 delivered by DARTs.

The intracellular localization of Nrf2 delivered by the DARTs was observed by confocal microscopy (Swept Field Confocal microscope-Prairie Technology). Nrf2 was labelled with Alexa555 to visualize its intracellular localization. Five hundred micrograms of Nrf2 (500 μg ml−1) was reacted with 9 times molar excess of Alexa555-NHS-ester (Life Technologies) at 4 °C overnight in 0.1 M phosphate buffer (pH 8.5). A PD-10 column was used to remove unreacted Alexa555. The concentrations of Nrf2 and conjugated Alexa555 were measured with a NanoDrop 2000 (Thermo). Alexa555–Nrf2 and DART were mixed at equal molar ratios and incubated for 15 min. HepG2 cells in 35 cm culture dishes were treated with 0.6 μM of Alexa555–Nrf2 prepared with or without DARTs for 30 min. After a PBS wash, cells were incubated for an additional 4 h in culture medium. Lysotracker green DND-26 (Life Technologies) was added to the cells (100 nM final concentration) to visualize endosomes and lysosomes. HepG2 cells were washed with PBS and images were taken using confocal microscopy.

Intracellular uptake analysis of Cy3–DART in HepG2 cells.

3′-azide-functionalized oligonucleotides containing the Nrf2 consensus sequence and Cy3 (forward strand 5′-/Cy3/ GTC ACA GTG ACT CAG CAG AAT CTG TTT T-N3-3′) and (reverse strand 5′-CAG ATT CTG CTG AGT CAC TGT GAC TTT TT-N3-3′) were purchased from IDT. Cy3-labelled DARTs were synthesized following procedures described in the Supplementary Information (see Supplementary Section 2.2 for details). HepG2 cells were treated with 0.6 μM of either Cy3–DNA or Cy3–DARTs in OptiMEM medium with 1% FBS for 24 h. HepG2 cells were washed 3 times with PBS and analysed with flow cytometry (Guava easyCyte).

Treatment of APAP-induced liver injury in mice with DART–Nrf2.

After overnight fasting, mice were administered an intraperitoneal injection of APAP (500 mg kg−1) dissolved in PBS (5% dimethylsulphoxide). One group of mice received free Nrf2 at a dose of 25 μg per mouse (1.25 mg kg−1 of Nrf2), and the other groups of mice were administered DARTs, DART–Nrf2, glucose–DART–Nrf2 and Gal–DNA–Nrf2 in 100 μl of PBS by tail-vein injection. Twenty-four hours after the injection of APAP, the mice were euthanized by CO2 asphyxiation. The blood was collected by cardiac puncture and the livers were isolated. APAP-induced liver injury was determined by measuring the alanine aminotransferase (ALT) activity in the serum using a commercial ALT assay kit (Biovision). Liver samples were used for RNA isolation and histology to assess the liver damage. For histological analysis liver sections were stained by haematoxylin and eosin, observed under light microscopy (Zeiss AxioCam ERc 5s), and the necrosis was compared between the groups of control, Nrf2- and DART–Nrf2-treated mice. Western blotting was performed with the liver samples to analyse the expression of HO1, NQO1 and GAPDH, using standard procedures. Transfer of proteins from liver homogenates to the nitrocellulose membrane (Bio-rad) was performed at 65 V for 60 min. Primary antibodies (1:500) were incubated overnight at 4 °C and the secondary antibody, bovine anti-rabbit–HRP, (1:2,000) was incubated for 2 h at room temperature. Images were taken using a ChemiDoc XRS system (Bio-Rad Laboratories). HO1 antibody (sc-10789), NQO1 antibody (sc-25591) and bovine anti-rabbit IgG–HRP (sc-2370) were purchased from Santa Cruz Biotech.

Detailed experimental procedures regarding the DART synthesis, characterization, and in vitro and in vivo testing are described in the Supplementary Information.
