Real-time observation of laser-driven electron acceleration

Nature Physics volume 7, pages 543–548 (2011)Cite this article

This article has been updated

Abstract

Electron acceleration by laser-driven plasma waves1,2 is capableof producing ultra-relativistic, quasi-monoenergetic electron bunches3,4,5 with orders of magnitude higher accelerating gradients and much shorter electron pulses than state-of-the-art radio-frequency accelerators. Recent developments have shown peak energies reaching into the GeV range6 and improved stability and control over the energy spectrum and charge7. Future applications, such as the development of laboratory X-ray sources with unprecedented peak brilliance8,9 or ultrafast time-resolved measurements10 critically rely on a temporal characterization of the acceleration process and the electron bunch. Here, we report the first real-time observation of the accelerated electron pulse and the accelerating plasma wave. Our time-resolved study allows a single-shot measurement of the 5.8−2.1+1.9 fs electron bunch full-width at half-maximum (2.5−0.9+0.8 fs root mean square) as well as the plasma wave with a density-dependent period of 12–22 fs and reveals the evolution of the bunch, its position in the surrounding plasma wave and the wake dynamics. The results afford promise for brilliant, sub-ångström-wavelength ultrafast electron and photon sources for diffraction imaging with atomic resolution in space and time11.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

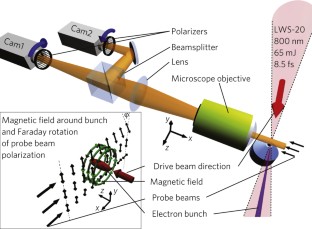

Figure 1: Experimental set-up.

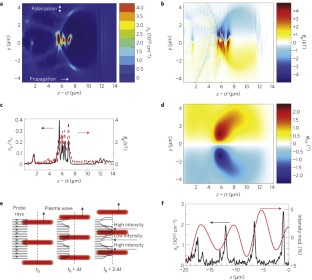

Figure 2: Particle-in-cell simulation results.

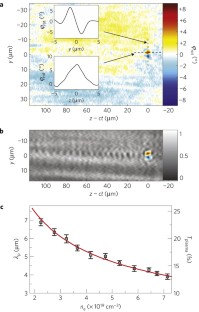

Figure 3: Visualization of the electron bunch and the plasma wave.
Figure 4: Evolution of the electron bunch and the plasma wave during the acceleration process.

Similar content being viewed by others

Change history

  • 21 March 2011

    In the version of this Letter originally published, the description of panels c–i in the caption for Fig. 4 was incomplete. This error has now been corrected in all versions of the Letter.
