The fractional a.c. Josephson effect in a semiconductor–superconductor nanowire as a signature of Majorana particles

Nature Physics volume 8, pages 795–799 (2012)Cite this article

Subjects

Abstract

Topological superconductors that support Majorana fermions have been predicted when one-dimensional semiconducting wires are coupled to a superconductor1,2,3. Such excitations are expected to exhibit non-Abelian statistics and can be used to realize quantum gates that are topologically protected from local sources of decoherence4,5. Here we report the observation of the fractional a.c. Josephson effect in a hybrid semiconductor–superconductor InSb/Nb nanowire junction, a hallmark of topological matter. When the junction is irradiated with a radiofrequency f0 in the absence of an external magnetic field, quantized voltage steps (Shapiro steps) with a height Δ V = h f0/2e are observed, as is expected for conventional superconductor junctions, where the supercurrent is carried by charge- 2e Cooper pairs. At high magnetic fields the height of the first Shapiro step is doubled to h f0/e, suggesting that the supercurrent is carried by charge- e quasiparticles. This is a unique signature of the Majorana fermions, predicted almost 80 years ago6.

This is a preview of subscription content, access via your institution

Access options

Buy this article

  • Purchase on SpringerLink
  • Instant access to the full article PDF.

USD 39.95

Prices may be subject to local taxes which are calculated during checkout

Figure 1: Devices layout.

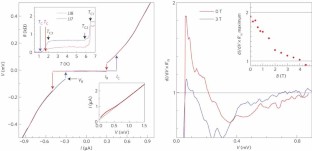

Figure 2: Characterization of Josephson junctions.

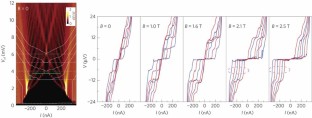

Figure 3: a.c. Josephson effect and Shapiro steps.

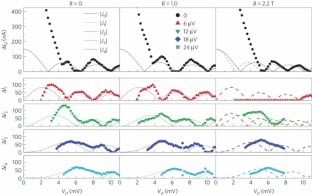

Figure 4: Evolution of Shapiro steps with rf power.
