Fig. 4: Coordination of epigenetic regulators and ferroptosis-associated TFs in neurological diseases.

From: Ferroptosis-associated transcriptional factors in neurological diseases: molecular mechanisms and therapeutic prospects

Fig. 4

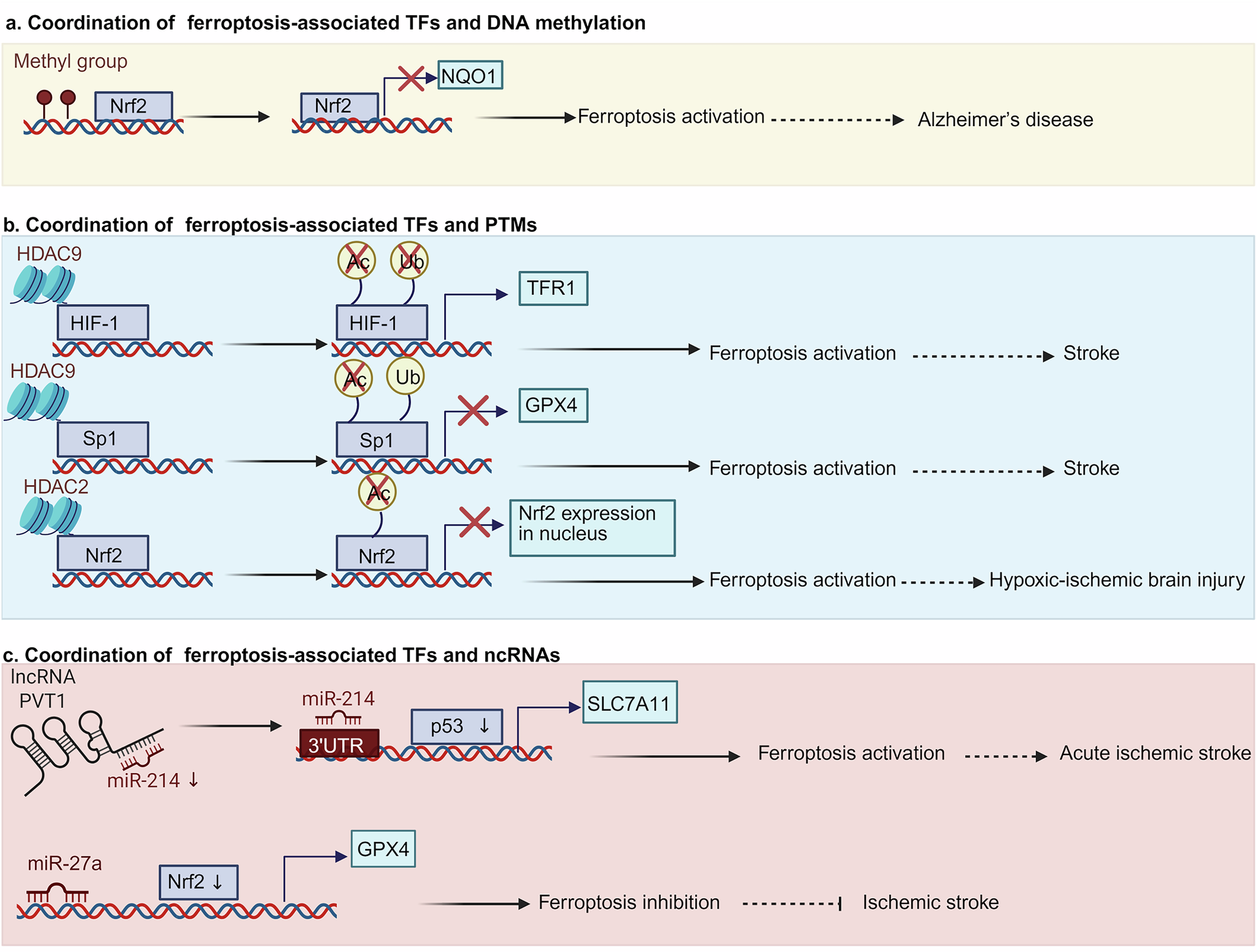

a–c The representative examples indicating the coordination of ferroptosis-associated TFs and DNA methylation, histone PTM and ncRNA in neurological diseases, respectively. Ub, ubiquitination; Ac, acetylation; ↓, downregulation; ⟶, activation; ⊣ inhibition. Figure created with BioRender.com.
