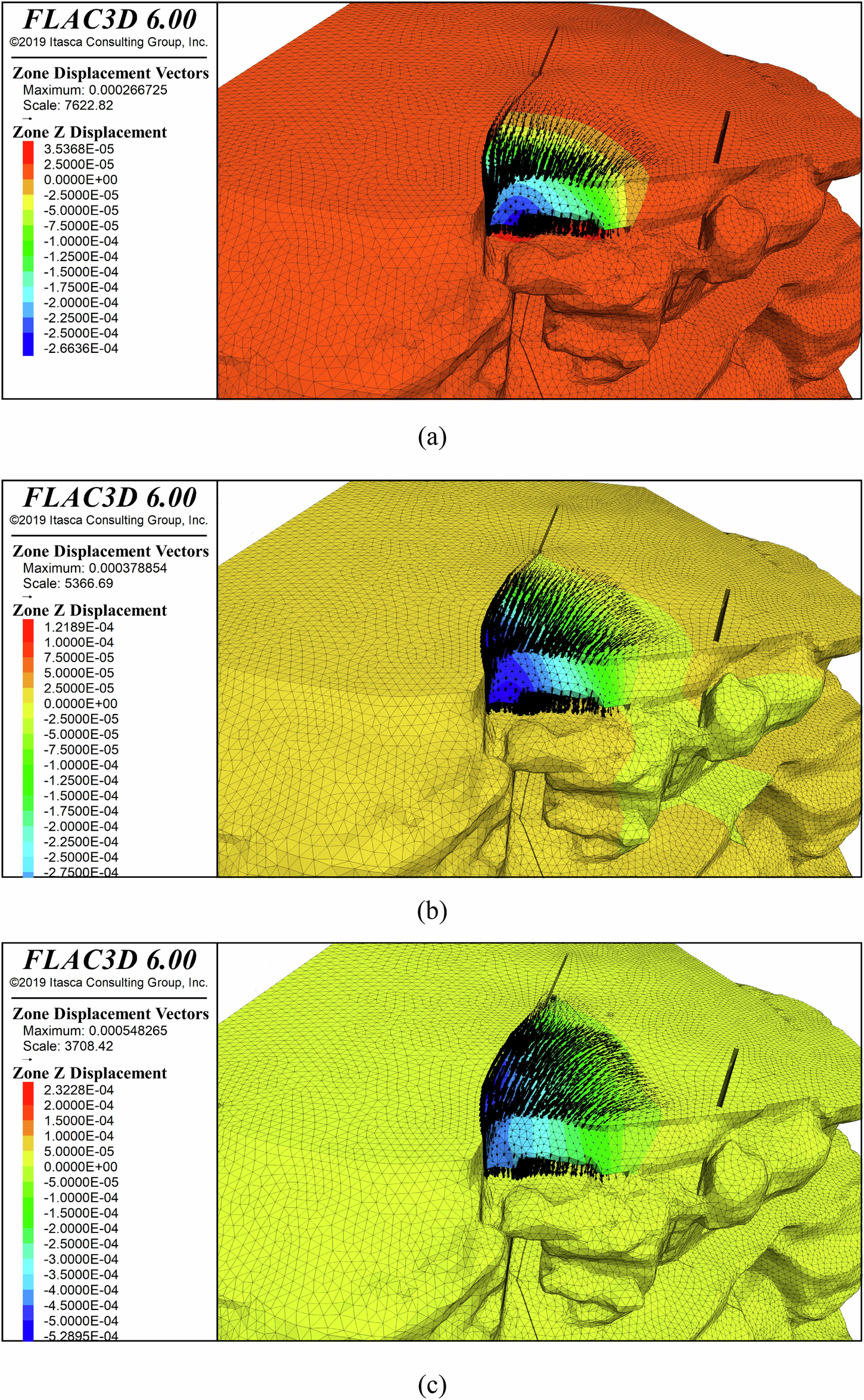

Fig. 19: Cloud and vector diagrams of vertical displacement in the roof under different broken strip stone lengths.
From: Stability study of complex caves: a case study of Yuanjue Cave in the Dazu Rock Carvings
a Broken strip stone length 5 m; b Broken strip stone length 9 m; c Broken strip stone length 14 m. Negative values in the figure represent settlement.
