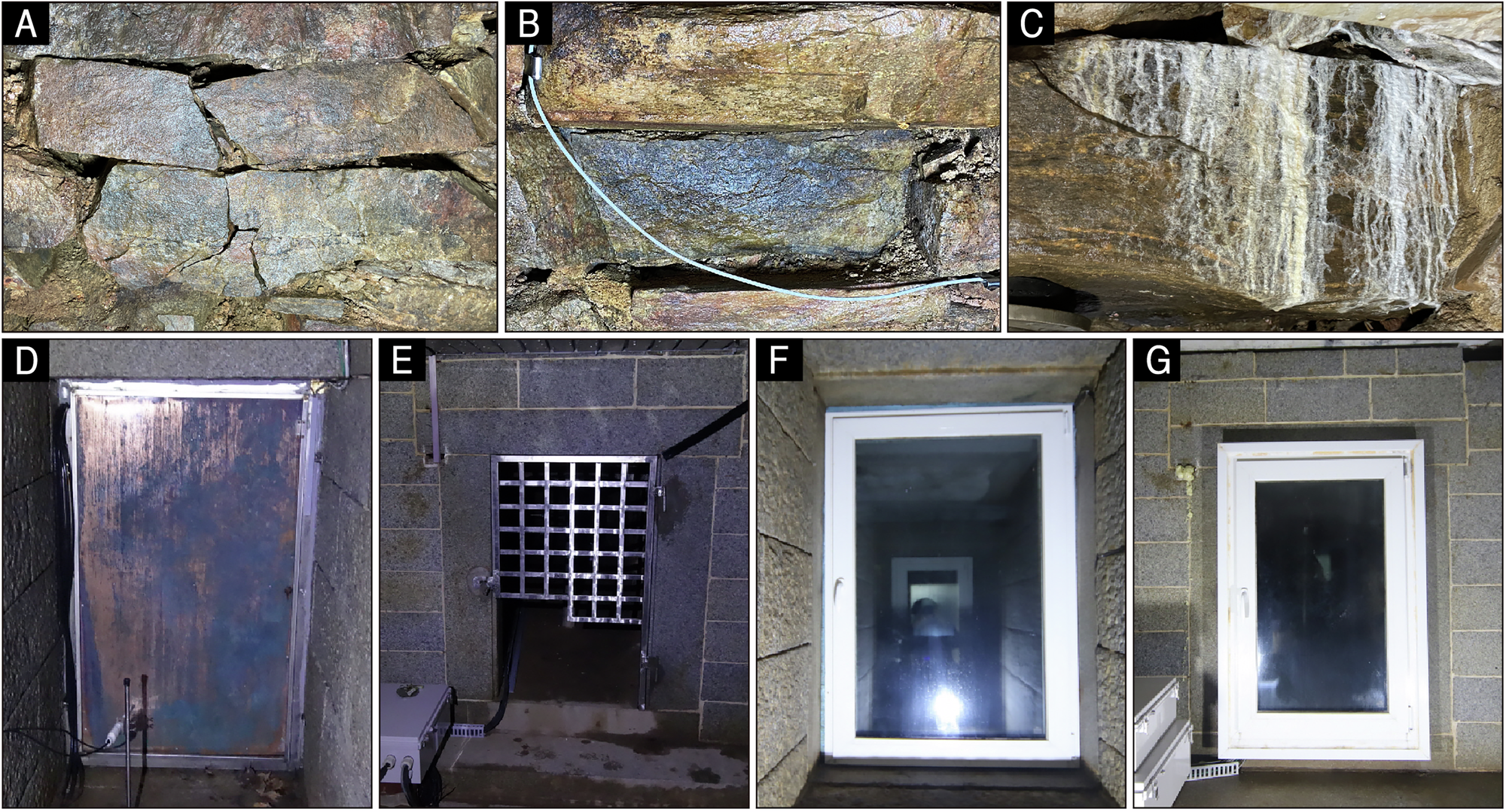

Fig. 3: Current state within the Tomb No. 5.
From: Microscale movements of an ancient Korean Royal Tomb in Gongju based on environmental changes
A Cracks and break of stone properties. (B) Leakage and detachment of stone. (C) Efflorescence on the stone surface caused by water leakage. D, E Steel windows prior to environmental improvement. F, G PVC airtight windows after environmental improvement. This figure was created by the authors using original data and Adobe Illustrator CS6. No third-party copyrighted materials were used.
