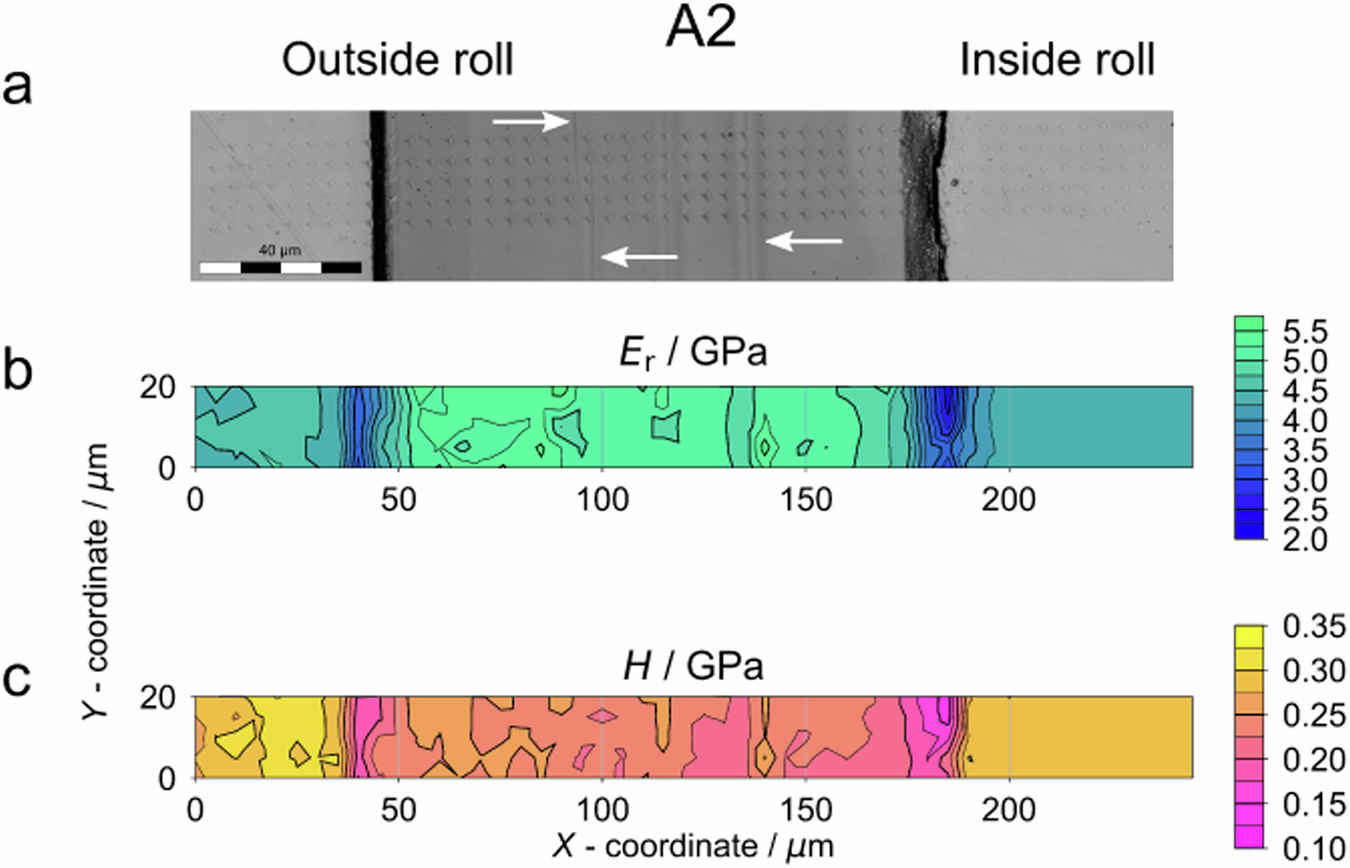

Fig. 6: A2 sample indentation results.
From: Using nanoindentation to study the aging of cellulose acetate in cinematographic films
a CLSM laser intensity image of grid indents. Arrows indicate positions of delaminations. Maps of the b reduced elastic modulus and c over the sample using the grid data and colour scales. (Colour online).
