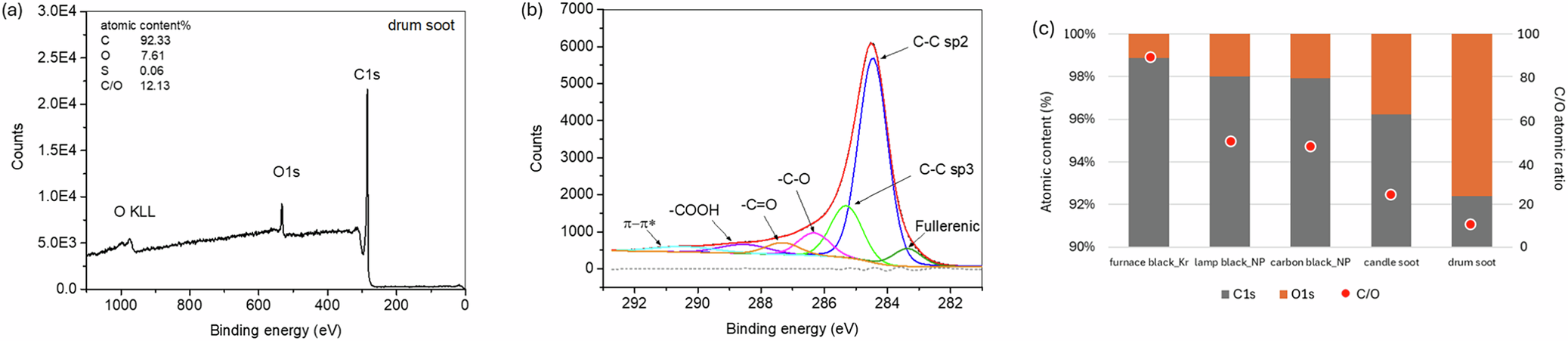

Fig. 10: XPS results of soot samples.
From: The reproduction of fire-born soot for comparative cleaning tests on heritage objects
a Illustration of xps survey scan spectra with atomic content (%); b a high-resolution scan over C1s for drum soot; c C,O contents and C/O ratio of soot samples.
