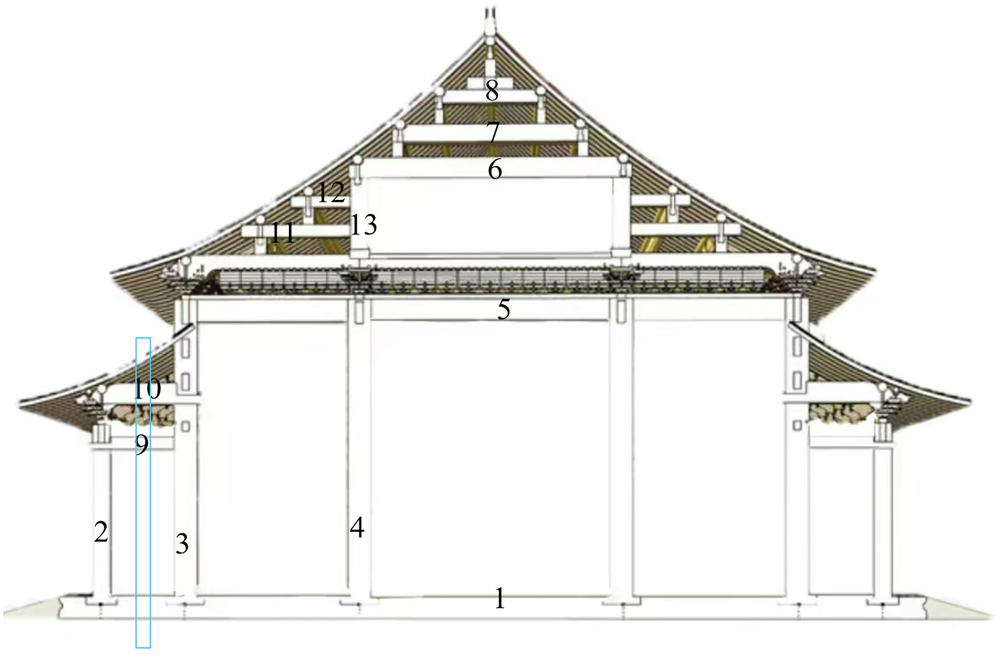

Fig. 14: Locating section cut position 1.

From: Individual segmentation method of ancient architectural components based on point cloud and construction techniques

Fig. 14: Locating section cut position 1.The alternative text for this image may have been generated using AI.

(1) Ground, (2) eave columns, (3) outer hypostyle columns, (4) inner hypostyle columns, (5) ceiling beam, (6) 7-purlin beam, (7) 5-purlin beam, (8) 3-purlin beam. (9) penetrating tie beam, (10) corner beam, (11) double-step beam, (12) single-step beam, and (13) short post.
