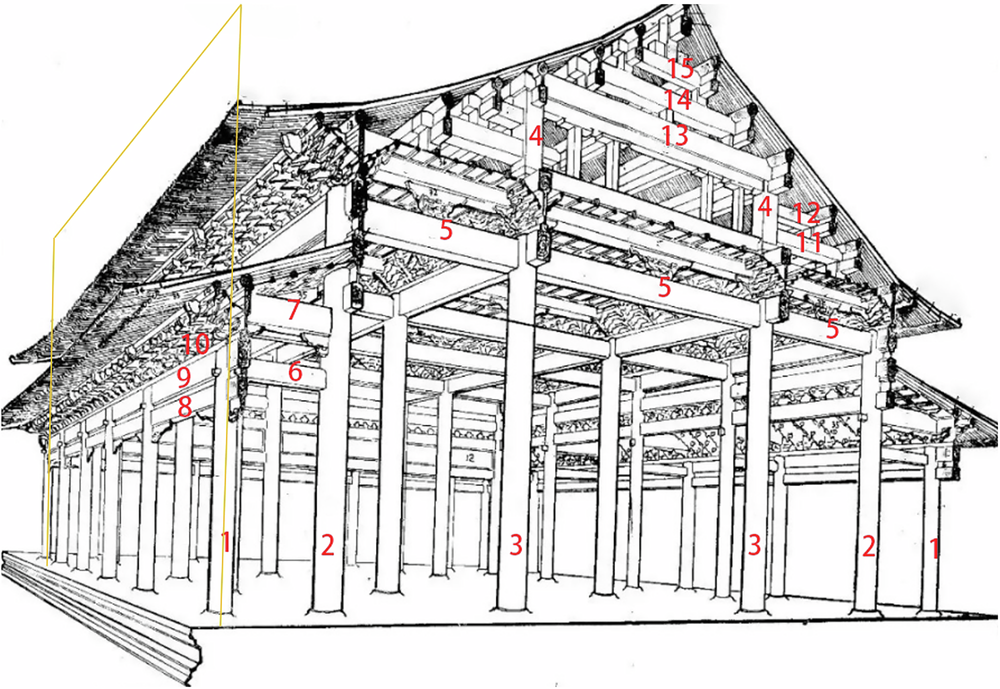

Fig. 6: Longitudinal section of the eave column axial plane.

From: Individual segmentation method of ancient architectural components based on point cloud and construction techniques

Fig. 6: Longitudinal section of the eave column axial plane.The alternative text for this image may have been generated using AI.

(1) Eave columns, (2) outer hypostyle columns, (3) inner hypostyle columns, (4) short post, (5) ceiling beam, (6) penetrating tie beam, (7) corner beam, (8) and (9) architraves, (10) Dougong bracketing clusters, (11) double-step beam, (12) single-step beam, (13) and (15) beams.
