Introduction

The rapid advancement of digital technologies has profoundly transformed the conservation, dissemination, and education of architectural heritage1,2,3. Digital tools such as Virtual Reality (VR) and Augmented Reality (AR) have overcome the spatial and temporal limitations of traditional heritage education, enhancing public engagement and improving the effectiveness of cultural transmission4,5,6. Built on this, multi-sensory digital heritage has emerged as a new and important research field, where the accuracy of details is critical for effective multi-sensory digital representation. This is particularly important for climate-adaptive building components in architectural heritage, as they are closely related to human perception. Inaccurate representations may undermine the design wisdom embedded in historical architecture and weaken the scientific value of heritage education. The Song Dynasty (960–1279 AD) was a remarkable period in the history of Chinese architecture, characterized by significant advancements in building techniques. Over time, the architecture of the Song Dynasty accumulated a wealth of climate-responsive design measures, while only a few buildings from this time have been retained7,8. Fortunately, the paintings of the Song Dynasty, renowned for their realism and meticulous details, contain rich information on building components and structures (a.k.a. the way of assembling building components)9. This study investigates the architectural component “Yinyan”, as depicted in the paintings of the Song Dynasty, focusing on its impact on indoor wind environments. It aims to extract the design wisdom embedded in traditional architecture. The findings are expected to enrich the multi-sensory digital representation of architectural heritage in the Song Dynasty and offer insights for both the conservation of Song architectural heritage and the sustainable design of contemporary architecture.

The digitalization of architectural heritage is undergoing diversified development, with accurate and efficient 3D representation widely regarded as its fundamental core. Zhou et al. integrated multi-source historical images and employed shape grammar analysis in combination with parametric design algorithms, significantly improving the efficiency of modeling Song Dynasty architecture10. To address the challenge of replicating repetitive textures and structural patterns in historic buildings, Yao et al. proposed a self-attention-guided unsupervised single image-based depth estimation method, offering a novel approach to high-precision 3D representation11. Valenti et al. conducted a comprehensive digital reconstruction of the Saint Lucia di Mendola site by combining archive research, geometric analysis, high-resolution 3D scanning and photogrammetry, digital recomposition of architectural fragments, and virtual modeling techniques12. The application of digital technologies in architectural heritage has expanded beyond traditional documentation and conservation. It now encompasses risk detection and mitigation, facility management, immersive educational experiences, and public engagement13,14. For example, De Fino et al. introduced a 360° thematic virtual tour system that integrates various digital resources to support cultural dissemination, performance evaluation, and risk management of historic buildings15. Nguyen et al., using the Temple of Hung Kings in Vietnam as a case study, applied Scan-to-HBIM technologies for digital reconstruction and incorporated tools such as VR and AR for building management and tourism promotion16. Milic et al., through a real-world architectural heritage project, explored new pedagogical strategies for architectural history education, integrating field surveys, data processing, and BIM model development17. Among these, the educational value of digital heritage is increasingly recognized as a key dimension that transcends technological innovation. As a bridge between heritage and societal value, the accurate digital representation of architectural heritage holds significant potential for revealing cultural meaning and enhancing educational impact. This is an area that deserves further exploration.

Traditional architecture around the world has gradually developed climate-adaptive features in response to local environmental conditions18,19,20. Among various passive design strategies, natural ventilation has been widely researched due to its effectiveness in enhancing indoor comfort. Previous studies have explored not only the influence of spatial layout and architectural form in traditional villages on airflow patterns, but also the role of specific building components in regulating indoor ventilation21,22,23. For example, Aydin and Mirzaei examined the function of “Cumba” in traditional Turkish architecture and found that it could significantly improve indoor ventilation. When combining it with flexible window-opening strategies, both the average wind speed and ventilation rate could be adjusted towards a wide range24. Similarly, Suleiman and Himmo analyzed the “Malqaf” in Arab traditional architecture and explored its ability to channel wind into buildings to create a comfortable wind environment25. Climate-adaptive building components can be flexibly adjusted to respond to varying climatic conditions. However, limited attention has been paid to such components of traditional Chinese architecture.

To summarize, substantial progress has been achieved in the digital representation of architectural heritage, particularly in 3D modeling technologies, information management, and practical applications, which have strongly supported heritage conservation and dissemination. In the field of natural ventilation and climate-responsive design, previous research has examined how various design strategies, such as building layouts, spatial organization, and building components, affect indoor wind environments, thereby confirming the value of traditional climate-adaptive design strategies. However, in-depth studies focusing specifically on the climate adaptability of Song Dynasty architecture remain limited. Moreover, research on multi-sensory digital representation of architectural heritage seldom explores the relationship between climate-adaptive building components and human indoor perception, which constrains the effective transmission of design wisdom embedded in traditional architecture. This study looks into Chinese traditional architecture from the Song Dynasty. By integrating historical paintings, literature, and preserved architectural heritages, we build the digital mock-up of buildings from the Song Dynasty and employ numerical simulations to assess the impact of the building component “Yinyan” on indoor ventilation. It aims to provide scientific evidence for the accurate digital representation of “Yinyan” and provide insights for both the conservation and restoration of Song architectural heritage, as well as the climate-responsive design of contemporary architecture.

Methods

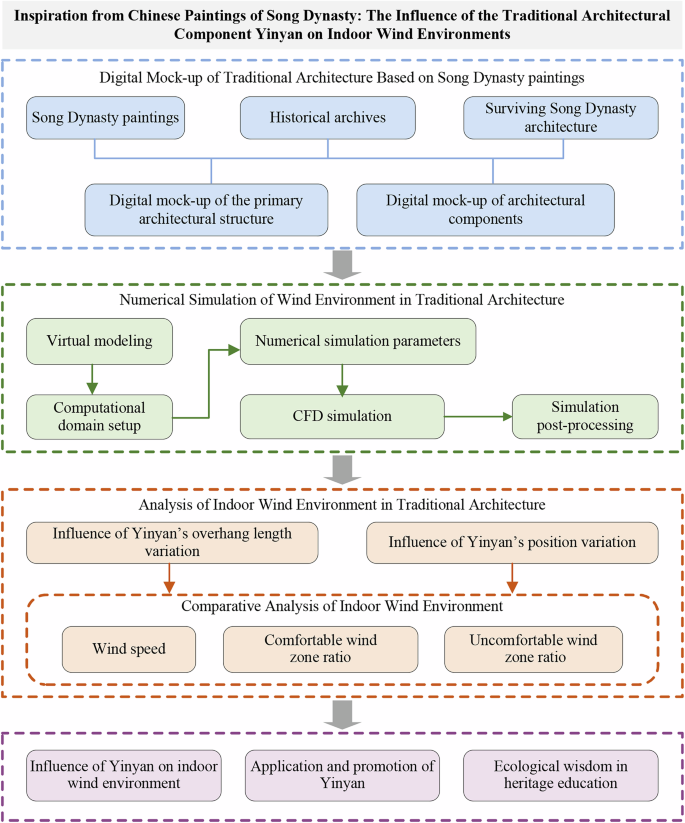

The overall research design is shown in Fig. 1. Based on paintings and historical archives from the Song Dynasty, a digital model of a traditional building from the Song Dynasty was constructed. The Computational Fluid Dynamics (CFD) numerical simulations were then conducted to investigate the impact of the building component “Yinyan” on the indoor wind environment.

Fig. 1
Fig. 1
Full size image

Flowchart of the research process adopted in this study.

The digital mock-up of traditional architecture based on Song Dynasty paintings

Research on the digital representation of architectural heritage based on iconographic evidence has gained increasing attention in recent years10,26. “Wumu” painting, one of the ten prevailing painting genres of Song Dynasty in China, employed scientific tools such as scale bars to illustrate cityscapes, buildings, and their surrounding natural environments with exceptionally high precision. Artists were required to maintain precise proportions and details in paintings, making the paintings function equally to modern architectural blueprints27. Chiu et al. rebuilt the scenes portrayed in Life along the Bian River at the Qing Ming Festival (Qing Ming Shang He Tu in Pinyin), a famous painting by Zhang Zeduan of the Northern Song Dynasty, and analyzed the seasonal context depicted in the painting28,29. Dong utilized the wooden pavilions from paintings of the Song Dynasty as a reference, along with Yingzao Fashi, an official building construction guide in the Song Dynasty, to rebuild the mock-up pavilions of the Song Dynasty30,31. These studies demonstrate that, by integrating “Wumu” paintings with historical archives and preserved architectural heritages from the Song Dynasty, it is feasible to replicate the traditional buildings in the Song Dynasty as well as their architectural components.

Architectural component “Yinyan” in Song Dynasty paintings

During the Northern Song Dynasty, Bianjing (current Kaifeng City located in Henan Province) experienced low rainfall and frequent sandstorms32. To cope with these climatic conditions, a transitional space has often been added between indoor and outdoor spaces. The “Yinyan”, a typical climate-responsive building component, was widely adopted for this purpose due to its ease of installation and replacement33. It typically consisted of a wooden frame inlaid with wooden panels or bamboo strips and was affixed to exterior walls. This component was frequently noted in the paintings of Song Dynasty, including Life along the Bian River at the Qing Ming Festival by Zhang Zeduan, Reading the Book of Change in a Cottage (Qiu Chuang Du Yi Tu in Pinyin) by Liu Songnian, and other notable works such as Nine Elders Enjoying a Gathering in the Huichang Period (Hui Chang Jiu Lao Tu in Pinyin), Autumn Trees and Mountains (Qiu Shan Hong Shu Tu in Pinyin), Conversation in Snowy Hall (Xue Tang Ke Hua Tu in Pinyin) and Boating on a Lotus Pond (Lian Tang Fan Ting Tu in Pinyin) (Fig. 2)29,34.

Fig. 2: Yinyan in partial views of Song Dynasty paintings.
Fig. 2: Yinyan in partial views of Song Dynasty paintings.
Full size image

a Life along the Bian River at the Qing Ming Festival; b Autumn Trees and Mountains; c Nine Elders Enjoying a Gathering in the Huichang Period; d Reading the Book of Change in a Cottage; e) Conversation in Snowy Hall; f Boating on a Lotus Pond.

Based on the analysis of these paintings, it was found that “Yinyan” was typically installed by attaching one long edge to the eaves or the upper frame of a window located beneath the eaves. The opposite long edge was either left unsupported (Fig. 2a, d)) or reinforced with diagonal braces (Fig. 2b, e, f).

Architectural components depicted in the painting of “Life along the Bian River at the Qing Ming Festival” and the mock-up building designs

This research selects a two-story tavern, with two standard rooms, located next to the Rainbow Bridge in the Life along the Bian River at the Qing Ming Festival (Fig. 2a), for further study. Using the digital mock-up of this building, this research investigates the impacts of the position and lengths of “Yinyan” on the indoor wind environment of traditional buildings in the Song Dynasty.

“Zhang”, “chi”, and “cun” are traditional Chinese length units, where 1 “zhang” is equal to 10 “chi”, and 1 “chi” is equal to 10 “cun”. During the Song Dynasty, the length of 1 “chi” was not unified across regions. In the book History of Ancient Chinese Architecture, Liu reported that the length of 1 chi ranged from 0.309 to 0.329 meters across different regions35. This study adopts a standardized mean value of 0.32 m for 1 chi, corresponding to 3.2 m for 1 zhang and 0.032 m for 1 cun.

“Wumu” paintings employed a drawing method similar to modern oblique axonometric projections36. In the selected painting, parallel lines were drawn along the ridge, eaves, and railings of the tavern’s main facade (Fig. 3). Since the extensions of these lines do not intersect, it can be inferred that the facade is depicted in a nearly parallel projection. Measurements of the height of columns and the width of rooms in the painting reveal a column height-to-room width ratio of approximately 0.72 (Fig. 3). Wang’s survey and analysis of architectural heritages from the Tang and Song Dynasties (e.g., the Main Hall of Baoguo Temple, the Shanmen of Dule Temple, and the Xiandian of Jinci Temple) found that, in small-scale Tang and Song buildings (2–3 standard rooms), the column height-to-room width ratio typically ranged from 0.70 to 0.7437. Since the ratio of 0.72 derived from the painting fits into this range, it becomes reasonable to build the digital mock-ups of Song buildings referring to the “Wumu” paintings.

Fig. 3
Fig. 3
Full size image

Tavern’s main facade and inferred room width, column height, and roof height.

Historical records and preserved buildings from the Song Dynasty indicate that the width of a standard room was normally in a range of 1.8–1.2 zhang (e.g., 1.8 zhang, 1.5 zhang, 1.3 zhang, or 1.2 zhang)30. Assuming the room width of this tavern is 1.3 zhang (equal to 4.16 m) and applying the column height-to-room width ratio of 0.72, the estimated column height is 2.88 m. For small-scale buildings in the Song Dynasty, the roof height (a.k.a. the vertical distance between the ridge of the roof and the eaves) is typically approximately two-thirds of the column height, so the estimated roof height is 1.92 m37. Additionally, based on this scale, the measured height of a seated figure in the painting is approximately 1.26 m (Fig. 3), which aligns with the typical height of a seated person. This further validates the inferred room width. Based on the surveying results of preserved buildings from the Song Dynasty and the relevant studies, the width-to-depth ratio of a single-span structure is approximately 1:137, indicating that the depth of the tavern is also 4.16 m. Further referring to Yingzao Fashi, the first-floor height and other structural details were speculated, forming the mock-up of the tavern38. Fig. 4 presents the digital mock-up of the building with key components.

Fig. 4: Mock-up design of the tavern.
Fig. 4: Mock-up design of the tavern.
Full size image

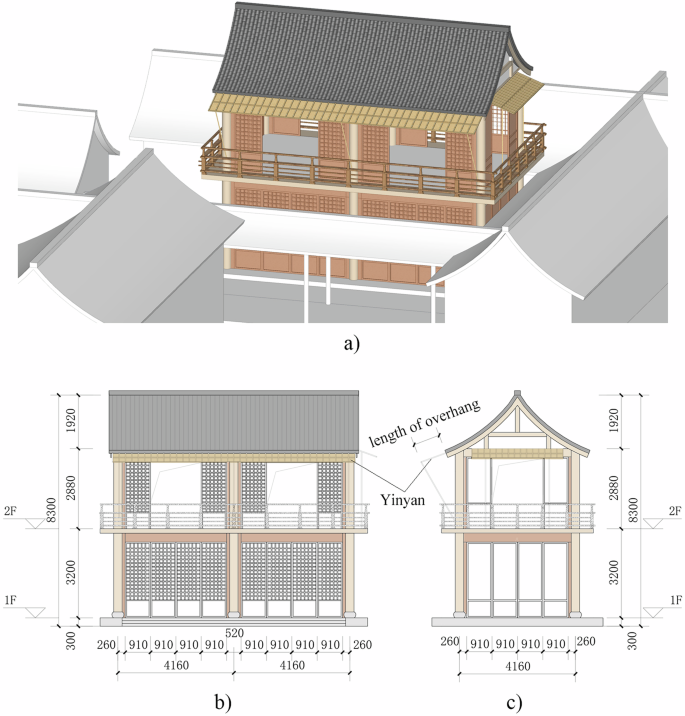

a 3D model; b Front elevation; c Side elevation (unit: mm).

Virtual modeling for numerical simulation

Based on paintings of the Song Dynasty, “Yinyan” could be installed either at the eaves or in between the window frames and the eaves, with variations in size. Preliminary CFD simulations indicated that variations in the angle of the “Yinyan” had a rather limited impact on indoor ventilation. Therefore, this study focuses on the influence of Yinyan’s overhang length and position on indoor wind environments. In the digital model, the overhang length is estimated at approximately 0.96 m based on proportional analysis of the painting. According to the Yingzao Fashi, the overhang length of Yinyan ranged from 3 to 5 chi (equal to 0.96-1.6 m)38. Given that the depth of the traditional building in this study is relatively small (4.16 m), four overhang lengths of the “Yinyan” were selected for comparative studies: 3 chi (equal to 0.96 m), 3.5 chi (1.12 m), 4 chi (1.28 m), and 4.5 chi (1.44 m). As summarized in Table 1, the impact of “Yinyan” on indoor ventilation was analyzed across eight scenarios, taking into account two installation positions and four overhang length settings. Case 1 represents the mock-up based on the painting and will be used for preliminary numerical simulation and model calibration.

Table 1 Summary of Yinyan case study scenarios used in numerical simulation

To facilitate numerical simulations and comparative analyses, the tavern was simplified in the digital model, with building components such as windows and “Yinyan” being replaced by flat panels. The simplified model for Case 1 is illustrated in Fig. 5.

Fig. 5
Fig. 5
Full size image

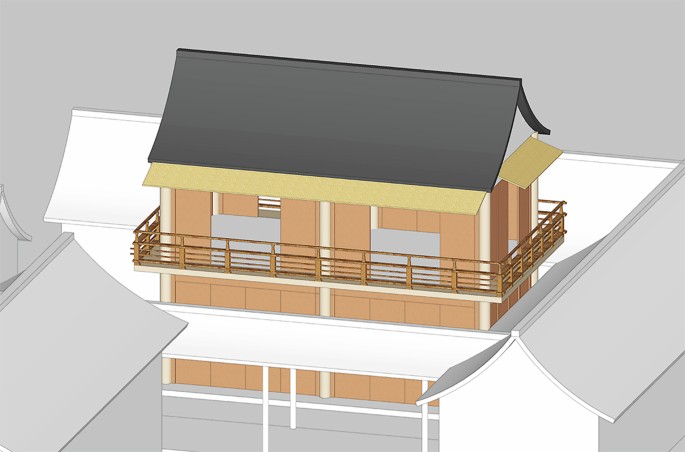

Simplified model.

Parameter settings for numerical simulation

In terms of the computational domain, the building footprint occupies less than 3% of the total computational domain. The target building was positioned at a distance of 3H (where H represents the maximum height of the target building) from the inlet boundary, 5H from the side boundaries, 10H from the outlet boundary, and 5H from the top boundary39. In this numerical simulation, the maximum height of the target building was approximately 8.3 meters. In return, the distances to the inlet boundary, outlet boundary, side boundaries, and top boundary were set to 24.9 m, 83 m, 41.5 m, and 41.5 m, respectively (Fig. 6).

Fig. 6
Fig. 6
Full size image

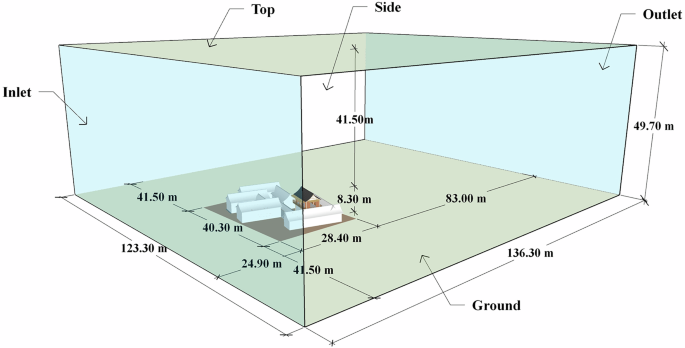

Computational domain and position of the traditional building.

In this study, a polyhedral unstructured mesh was employed for simulation. First, a base mesh size was defined for the computational domain, with finer meshes applied to the building and its surrounding areas, and even finer meshes assigned to building components to ensure that each complete boundary of the building contained at least 10 meshes. Additionally, boundary layer meshes were generated on the ground surface. A mesh sensitivity analysis was conducted (see Section Mesh Sensitivity Analysis). Based on the results, the base mesh size was set to 4 m. The relative mesh sizes for the building components and surrounding ground are summarized in Table 2. To improve the simulation accuracy, the mesh within the second-floor interior of the tavern was further refined, with a refined mesh size set to 3% of the base mesh size. The volumetric growth rate between adjacent mesh cells was set to 1.2. The mesh configuration for Case 1 is illustrated in Fig. 7, with approximately 1.06 million meshes generated for the entire computational domain.

Fig. 7: Mesh configuration for Case 1.
Fig. 7: Mesh configuration for Case 1.
Full size image

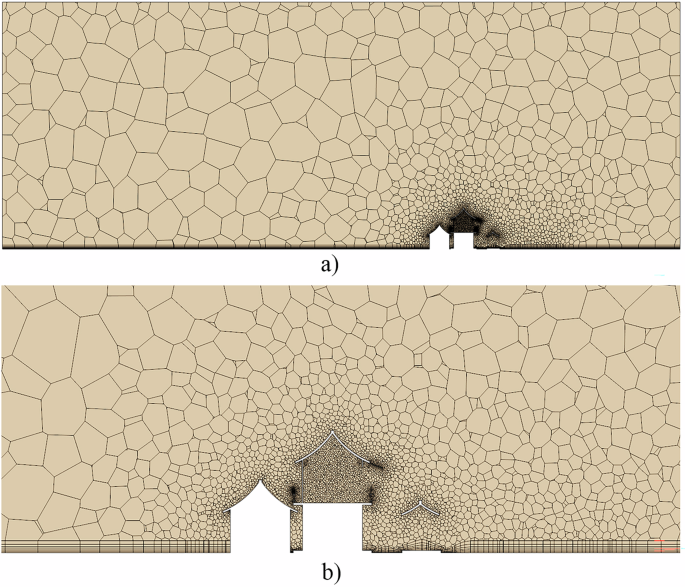

a Mesh within the computational domain; b Mesh near the building.

Table 2 Relative mesh sizes for the architectural components and the surrounding ground

For the physical model, the computational domain was modeled as a space full of steady-state, constant-density gas. The Realizable k–ε model was chosen for the simulation. The accuracy of this model in simulating wind environments around clustered buildings has been validated in previous studies, with an identified error within an acceptable range40,41,42.

The inlet boundary was defined as a velocity inlet, and the turbulence model was set to the Realizable k–ε model. Chiu et al. compiled wind speed data of Kaifeng City from the past 50 years to simulate the scenario illustrated in Life along the Bian River at the Qing Ming Festival, and found that prevailing winds blew from the south to the north in spring and from the northeast to the southwest in autumn, with an average wind speed of approximately 3.0 m/s28. In Kaifeng, natural ventilation was often used during spring and early summer to provide better indoor air quality and thermal comfort. Therefore, this study adopts a south wind direction with a wind speed of 3.0 m/s for the simulation. The vertical velocity profile U(z), turbulent kinetic energy (k), and turbulent energy dissipation rate (ε) were calculated by Eqs. (1)–(4)39,43.

$$U\left(z\right)={U}_{s}{\left(\frac{z}{{z}_{s}}\right)}^{\alpha }$$
(1)
$$I\left(z\right)=\frac{{\sigma }_{u}(z)}{U(z)}=0.1{\left(\frac{z}{{z}_{G}}\right)}^{(-\alpha -0.05)}$$
(2)
$$k\left(z\right)=\frac{{\sigma }_{u}^{2}\left(z\right)+{\sigma }_{v}^{2}\left(z\right)+{\sigma }_{w}^{2}\left(z\right)}{2}\cong {\sigma }_{u}^{2}\left(z\right)={\left(I\left(z\right)* U\left(z\right)\right)}^{2}$$
(3)
$$\varepsilon \left(z\right)\cong {C}_{\mu }^{1/2}k(z)\frac{{U}_{s}}{{z}_{s}}\alpha {\left(\frac{z}{{z}_{s}}\right)}^{\alpha -1}$$
(4)

In these equations, Us is the wind speed at the reference height, set to 3.0 m/s, and zs is the reference height, set at 10 meters. z is the actual height, and U(z) is the wind speed at height z. The surface roughness index α is set to 0.1544. σμ(z) is the root mean square value of the velocity in the flow direction. The boundary layer height zG, corresponding to the terrain category, is set to 350 m. is a constant, with a value of 0.09.

The outlet boundary was defined as a pressure outlet, with the initial values of pressure, turbulent kinetic energy, and turbulent dissipation rate all set to 0. All other parameters were kept at their default settings in the numerical simulations.

The side and top boundaries, as well as the building surfaces, were defined as smooth walls.

The ground boundary was defined as a rough surface, with a roughness height set to 1.8×10-4 m.

Indoor wind environment evaluation

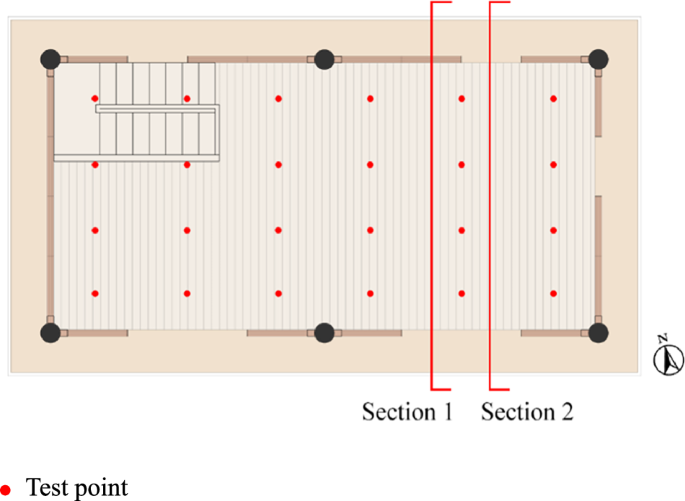

The second floor of the tavern was designated as the evaluation area. Two sections, Section 1 and Section 2, as shown in Fig. 8, were defined within this area to analyze the vertical distribution of indoor airflow under Case 1, Case 5, and the scenario without the “Yinyan” installed. Following the studies of Yang & Zhang, based on evaluation methods for indoor environments outlined in ASHRAE Standard 55 and GB-5078545,46,47, two horizontal evaluation planes were defined: one at 1.1 m above the 2nd floor, representing head and shoulder height when seated, and another at 1.7 m, representing head and shoulder height when standing.

Fig. 8
Fig. 8
Full size image

The 2nd floor plan of the tavern, the locations of two sections, and the 24 test points.

In naturally ventilated indoor environments, wind speed has a critical impact on human thermal comfort48,49,50,51. Previous studies indicated that most individuals perceived wind speeds ranging from 0.25 to 1.0 m/s as comfortable. In warmer climatic conditions, some occupants might tolerate wind speeds between 1.0 and 1.5 m/s. However, wind speeds exceeding 1.5 m/s would often cause discomfort as the wind might shift lightweight indoor objects, while speeds below 0.25 m/s would hinder the effect of removing indoor air pollutants52,53.

For this study, the indoor wind environment was categorized into three zones: the comfortable wind zone (wind speed: 0.25–1.0 m/s), the stagnant wind zone (wind speed <0.25 m/s), and the excessive wind zone (wind speed >1.5 m/s). Wind speeds between 1.0 and 1.5 m/s would result in varied subjective responses - some individuals perceive them as uncomfortable, while others consider them acceptable53. Therefore, this range is excluded from the present analysis. To facilitate the comparative studies, the stagnant and excessive wind zones were collectively defined as uncomfortable wind zones. Computational modules were developed within the simulation software to explore the comfortable wind zone ratio (i.e., the proportion of the evaluation area within the comfortable range) and the uncomfortable wind zone ratio (i.e., the proportion of the evaluation area within the uncomfortable range). These modules were used to evaluate the effects of Yinyan on the indoor wind environments according to its different lengths and locations.

Mesh sensitivity analysis

According to the computational settings outlined in Section Parameter Settings for Numerical Simulation, a mesh sensitivity analysis was conducted for Case 1 using different base mesh sizes. The base mesh sizes were set to 5 m, 4.5 m, 4 m, and 3.5 m. The relative mesh sizes for the building components and surrounding ground are summarized in Table 2. To evaluate the impact of mesh sizes on wind speed predictions, 24 test points were selected at a height of 1.1 m above the 2nd floor of the tavern (Fig. 8). Figure 9 presents the comparison of wind speed values at the 24 test points under the four mesh sizes. The overall wind speed trends remain consistent across all conditions. However, under the 5 m mesh configuration, some test points exhibited slightly higher deviations. To further analyze the simulated wind speed differences at the 24 test points under different mesh configurations, the differences were calculated between the 5 m and 4.5 m meshes (denoted as ∆1), the 4.5 m and 4 m meshes (denoted as ∆2), and the 4 m and 3.5 m meshes (denoted as ∆3). A comparison of these differences is shown in Fig. 10. The values of ∆1 and ∆2 are relatively larger, while ∆3 is smaller and remains below 0.05 m/s. This indicates that the wind speed predictions at the 24 test points are relatively consistent when the mesh configurations fall into 3.5–4 m, with no significant discrepancies. Considering that the 3.5 m mesh would require higher computational costs, the 4 m mesh was ultimately selected as the base mesh for the numerical simulations in this study.

Fig. 9
Fig. 9
Full size image

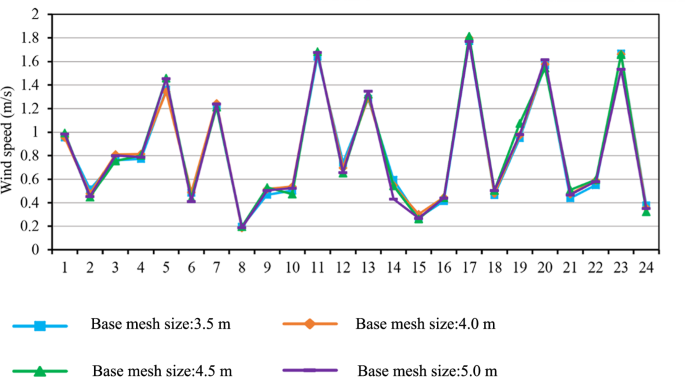

Wind speed values at the 24 test points under four base mesh sizes.

Fig. 10
Fig. 10
Full size image

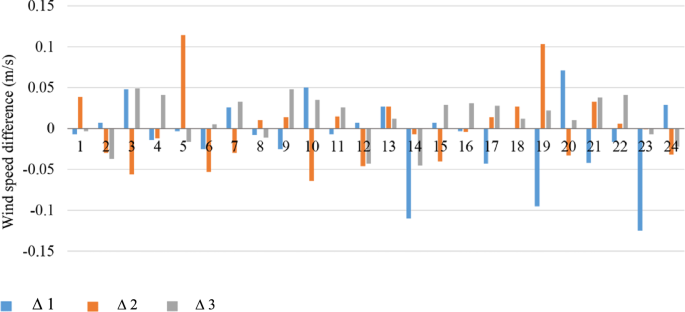

Comparison of wind speed differences at the 24 test points under different mesh configurations.

Results

Influence of Yinyan on the vertical distribution of indoor airflow

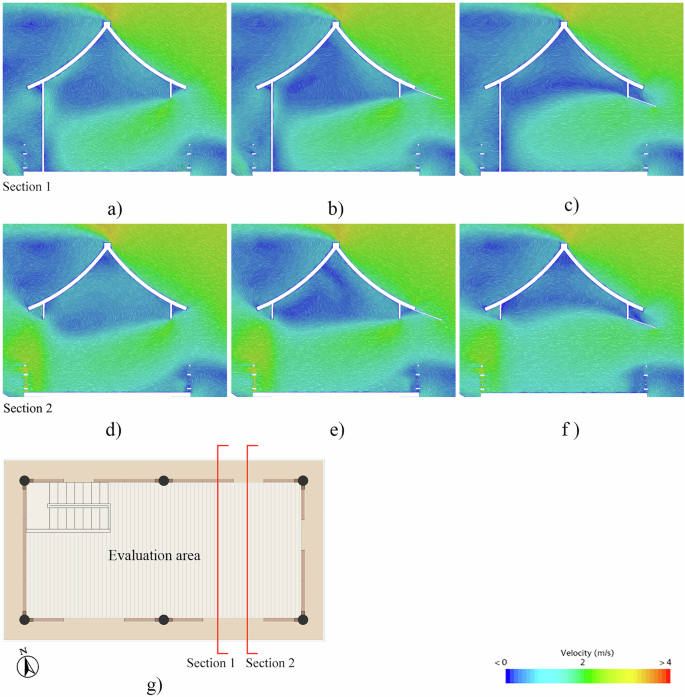

Figure 11 illustrates the vertical airflow distributions for Case 1, Case 5, and the scenario without the “Yinyan”. Section 1 represents a vertical plane with a single-sided opening. Without “Yinyan” (Fig. 11a), the incoming airflow enters at a downward angle and gradually loses velocity. Upon reaching the rear wall, it rises, forming a stagnant zone near the rear wall and a relatively large vortex in the upper rear region. In Case 1 (Fig. 11b), where the “Yinyan” is installed at the eaves, the airflow follows a similar downward path but with slower velocity attenuation due to the guiding effect of the “Yinyan”. And the upper vortex shifts closer to the rear wall. In Case 5 (Fig. 11c), where the “Yinyan” is installed above the window frame, the airflow diffuses more broadly into the room, reducing the stagnant zone and shifting the upper vortex towards the central upper area, where it becomes smaller in size.

Fig. 11: Vertical airflow distributions.
Fig. 11: Vertical airflow distributions.
Full size image

a Scenario without the “Yinyan”, Section 1; b Case 1, Section 1; c Case 5, Section 1; d Scenario without the “Yinyan”, Section 2; e Case 1, Section 2; f Case 5, Section 2; g Locations of Sections 1 and 2.

Section 2 represents a vertical plane with openings on both sides, enabling cross-ventilation. Without the “Yinyan” (Fig. 11d)), the airflow enters at a downward angle with gradually decreasing velocity, then inclines upward near the rear of the room before exiting. A relatively large vortex forms in the upper rear region. In Case 1 (Fig. 11e)), with the “Yinyan” installed at the eaves, the airflow travels more horizontally across the room, resulting in smoother and more uniform flow. The upper vortex shifts towards the rear corner. In Case 5 (Fig. 11f)), with the “Yinyan” installed above the window frame, the guiding effect causes the incoming airflow to diffuse slightly, expanding the affected area. The upper vortex moves towards the central upper region and becomes more dispersed.

Overall, the “Yinyan” exerts a significant impact on indoor airflow. When installed at the eaves, it increases airflow penetration and average indoor wind speed, thereby improving the indoor wind environment. When installed above the window frame, it alters airflow direction, promotes diffusion, and expands the effective flow area.

Influence of Yinyan’s overhang length on the indoor wind environment when installed at the eaves

When the “Yinyan” was installed at the eaves, the indoor wind speed contour plots for Cases 1 to 4 are shown in Fig. 12. The results indicate that the overall indoor airflow patterns are consistent across all cases. Higher wind speed areas are primarily located along the airflow paths aligned with the two door-window openings, while lower wind speed stagnant zones are situated between these airflow paths.

Fig. 12: Indoor wind speed contour plots under different scenarios.
Fig. 12: Indoor wind speed contour plots under different scenarios.
Full size image

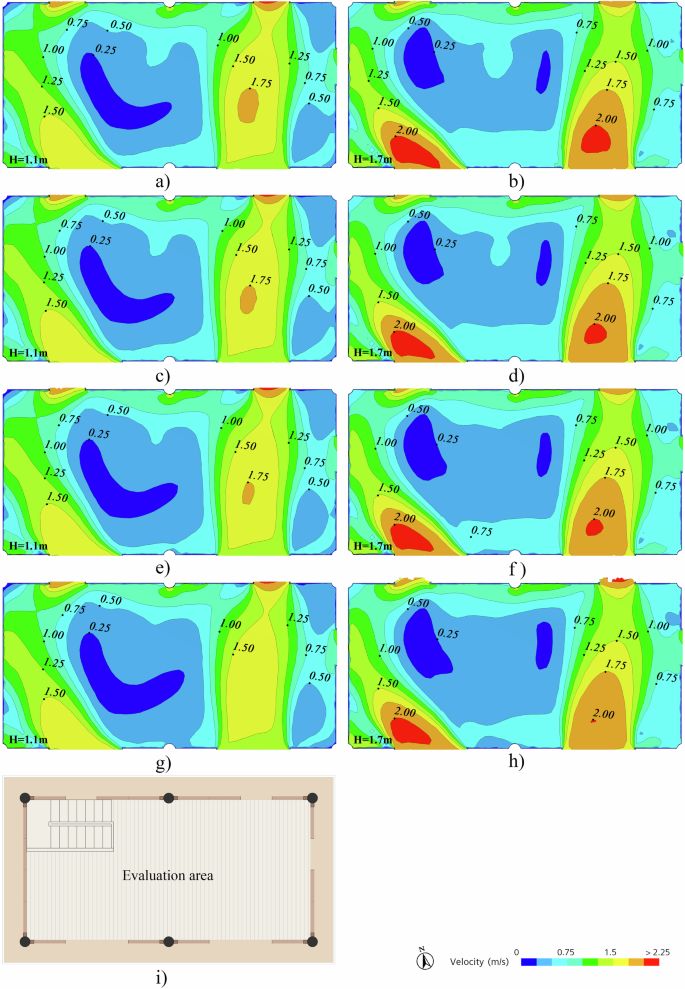

a Case 1, 1.1 m evaluation plane; b Case 1, 1.7 m evaluation plane; c Case 2, 1.1 m evaluation plane; d Case 2, 1.7 m evaluation plane; e Case 3, 1.1 m evaluation plane; f Case 3, 1.7 m evaluation plane; g Case 4, 1.1 m evaluation plane; h Case 4, 1.7 m evaluation plane; i The 2nd floor plan of the tavern.

As the Yinyan’s overhang length increases, the stagnant wind zone area on the 1.1 m evaluation plane remains relatively unchanged (Fig. 12). However, the area of the comfortable wind zone (especially those with wind speed: 0.25–0.5 m/s) gradually expands, while the uncomfortable wind zone (especially those with wind speed >1.75 m/s) progressively shrinks and eventually disappears. On the 1.7 m evaluation plane, the increase of Yinyan’s overhang length leads to a gradual decrease in the uncomfortable wind zone (especially those with wind speed >2 m/s) and a significant increase of the comfortable wind zone (especially those with wind speed: 0.25–0.5 m/s).

The simulated indoor wind environment for Cases 1–4 are summarized in Table 3. As the Yinyan’s overhang length varied, the maximum wind speed on the 1.1 m evaluation plane ranged from 2.32 to 2.34 m/s, while the minimum wind speed ranged from 0.018 to 0.030 m/s. On the 1.7 m evaluation plane, the maximum wind speed ranged from 2.23 to 2.24 m/s, and the minimum wind speed ranged from 0.031 to 0.053 m/s. The relatively small variations in both maximum and minimum wind speeds indicate a weak correlation between Yinyan’s overhang length and indoor wind speeds.

Table 3 Indoor wind conditions with Yinyan installed at the eaves

The average wind speed on the 1.1 m evaluation plane ranged from 0.86 to 0.89 m/s, while on the 1.7 m evaluation plane, it ranged from 0.90 to 0.92 m/s. With the increase of Yinyan’s overhang length, the indoor average wind speed showed a slightly decreasing trend, though the difference was small.

Changes in Yinyan’s overhang length had little impact on the comfortable and uncomfortable wind zone ratios on the 1.1 m evaluation plane. On the 1.7 m evaluation plane, slight variations were observed: the comfortable wind zone ratio gradually decreased, while the uncomfortable wind zone ratio increased.

To summarize, when the “Yinyan” is installed at the eaves, variations in its overhang length have a limited impact on the maximum and minimum indoor wind speeds. However, the average indoor wind speed gradually decreases as Yinyan’s overhang length increases. On the 1.7 m evaluation plane, the comfortable wind zone ratio gradually decreases, while the uncomfortable wind zone ratio increases, though the changes remain relatively small. The worst conditions are observed in Case 4, where Yinyan’s overhang length is 1.44 m.

Influence of Yinyan’s overhang length on the indoor wind environment when installed above the window frame

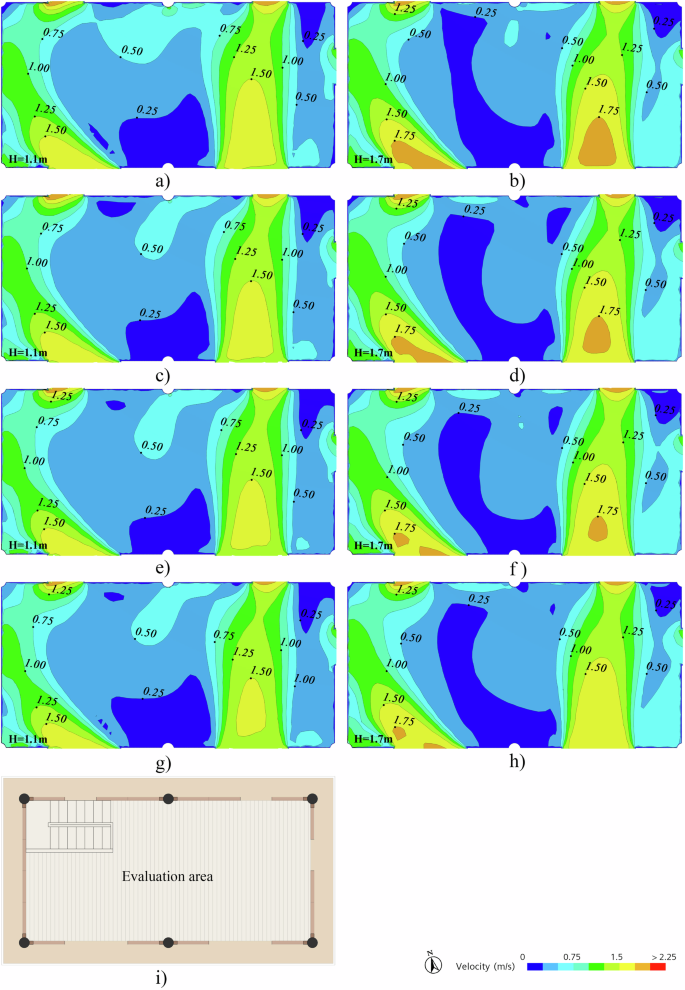

The indoor wind speed contour plots for Cases 5 to 8 are shown in Fig. 13, illustrating that the overall indoor airflow patterns remain consistent across all cases. Higher wind speed areas are primarily located along the airflow paths aligned with the door-window openings, while stagnant zones with lower wind speeds are situated between these airflow paths.

Fig. 13: Indoor wind speed contour plots under different scenarios.
Fig. 13: Indoor wind speed contour plots under different scenarios.
Full size image

a Case 5, 1.1 m evaluation plane; b Case 5, 1.7 m evaluation plane; c Case 6, 1.1 m evaluation plane; d Case 6, 1.7 m evaluation plane; e Case 7, 1.1 m evaluation plane; f Case 7, 1.7 m evaluation plane; g Case 8, 1.1 m evaluation plane; h Case 8, 1.7 m evaluation plane; i The 2nd floor plan of the tavern.

On the 1.1 m evaluation plane, the stagnant wind zone is mainly distributed on the southern side between the two airflow paths. As the Yinyan’s overhang length increases, the stagnant zone initially decreases and then increases. The excessive wind zone shrinks with increased Yinyan’s overhang length. On the 1.7 m evaluation plane, as the Yinyan’s overhang length increases, the stagnant wind zone remains relatively stable, while the uncomfortable wind zone (especially those with wind speed > 1.75 m/s) gradually decreases.

The simulated indoor wind environment for Cases 5 to 8 is summarized in Table 4. As the Yinyan’s overhang length varies, the maximum wind speed on the 1.1 m evaluation plane ranges from 2.25 to 2.28 m/s, while the minimum wind speed ranges from 0.024 to 0.035 m/s. The differences in both maximum and minimum values are relatively small. On the 1.7 m evaluation plane, the maximum wind speed ranges from 2.17 to 2.21 m/s, and the minimum wind speed ranges from 0.007 to 0.024 m/s. There is a slight variation in the maximum and minimum wind speed from Case 5 to Case 8. This indicates a weak correlation between the changes in Yinyan’s overhang length and the indoor wind speeds.

Table 4 Indoor wind conditions with Yinyan installed above the window frame

For Cases 5–8, the average wind speed on the 1.1 m evaluation plane ranges from 0.69 to 0.74 m/s, while on the 1.7 m evaluation plane, it ranges from 0.74 to 0.75 m/s. As the Yinyan’s overhang length increases, the indoor average wind speed on the 1.1 m evaluation plane gradually decreases. While the average wind speed on the 1.7 m evaluation plane remains relatively unchanged.

As the Yinyan’s overhang length varies, the ratios of comfortable and uncomfortable wind zones for both evaluation planes in Cases 5–8 show noticeable changes. As shown in Table 4, when Yinyan’s overhang length is 0.96 m (Case 5), the comfortable wind zone ratio on the 1.1 m evaluation plane is 59.99%, and the uncomfortable wind zone ratio is 20.45%. As the Yinyan’s overhang length increases, compared to Case 5, the comfortable wind zone ratio for Cases 6, 7, and 8 increases by approximately 1.94%, 4.28%, and 2.1%, respectively, while the uncomfortable wind zone ratio decreases by about 2.22%, 4.84% and 3.48%. Among these, Case 7 shows the largest increase in the comfortable speed zone ratio and the largest decrease in the uncomfortable wind zone ratio.

On the 1.7 m evaluation plane, as the Yinyan’s overhang length increases, the comfortable wind zone ratio decreases by approximately 1.77% in Case 6 and 0.10% in Case 8 compared to Case 5, while Case 7 shows a slight increase of 0.41%. Additionally, the uncomfortable wind zone ratio is significantly reduced in Case 6 by about 4.46%, while smaller reductions are also observed in Case 7 (1.81%) and Case 8 (1.65%).

To summarize, when the “Yinyan” is installed above the window frame, variations in its overhang length have little effect on the maximum and minimum indoor wind speeds. However, as the overhang length increases, the comfortable wind zone ratio increases on both evaluation planes, while the uncomfortable wind zone ratio decreases. The best indoor wind environment can be achieved when the Yinyan’s overhang length is 1.28 m (Case 7). The quality of the indoor wind environment is relatively poor when the Yinyan’s overhang length is 0.96 m (Case 5).

Influence of Yinyan’s position on the indoor wind environment under the same overhang length

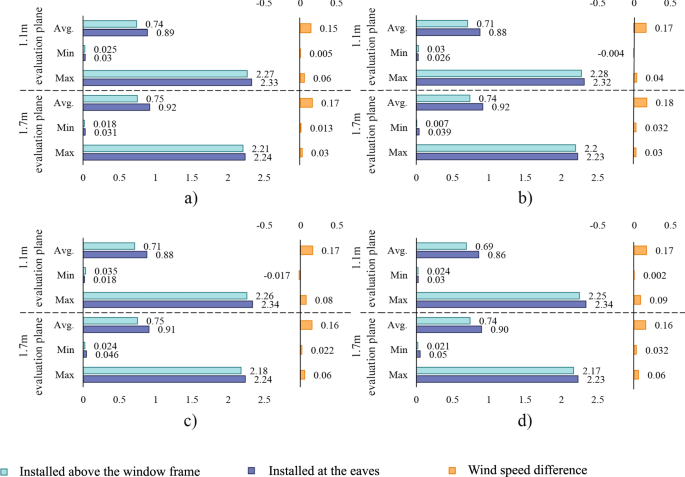

Figure 14 compares indoor wind speeds when Yinyan is installed at the eaves and those when Yinyan is installed above the window frame, with an identical overhang length. The difference in maximum wind speed values is small and positive, indicating that the maximum wind speed is slightly higher when the “Yinyan” is installed at the eaves. The difference in minimum wind speed values is also small, with both positive and negative values, suggesting that Yinyan’s position has a minimal and irregular effect on the minimum wind speeds. Regarding the comparison of average wind speeds, the difference in indoor average wind speed is positive, ranging from 0.15 to 0.18 m/s, indicating that the average indoor wind speed is higher when the “Yinyan” is installed at the eaves.

Fig. 14: Comparison of indoor wind speeds for Yinyan, with identical overhang lengths, being installed at the eaves and above the window frame.
Fig. 14: Comparison of indoor wind speeds for Yinyan, with identical overhang lengths, being installed at the eaves and above the window frame.
Full size image

a Yinyan width = 0.96 m (Case 1 and Case 5); b) Yinyan width = 1.12 m (Case 2 and Case 6); c Yinyan width = 1.28 m (Case 3 and Case 7); d) Yinyan width = 1.44 m (Case 4 and Case 8).

Figure 15 compares comfortable and uncomfortable wind zone ratios for Yinyan, with identical overhang lengths, being installed at the eaves and above the window frame. As shown in Fig. 15a), the difference in the uncomfortable wind zone ratio on the 1.1 m evaluation plane is positive, while the difference in the comfortable wind zone ratio is negative. Nevertheless, as shown in Fig. 15b), the statistical results for the 1.7 m evaluation plane are the opposite, with the difference in the uncomfortable wind zone ratio being negative and the difference in the comfortable wind zone ratio being positive, which complicates the comparative analysis. The comparison of the mean values is shown in Fig. 15c).

Fig. 15: Comparison of comfortable and uncomfortable wind zone ratios for Yinyan, with identical overhang lengths, being installed at the eaves and above the window frame.
Fig. 15: Comparison of comfortable and uncomfortable wind zone ratios for Yinyan, with identical overhang lengths, being installed at the eaves and above the window frame.
Full size image

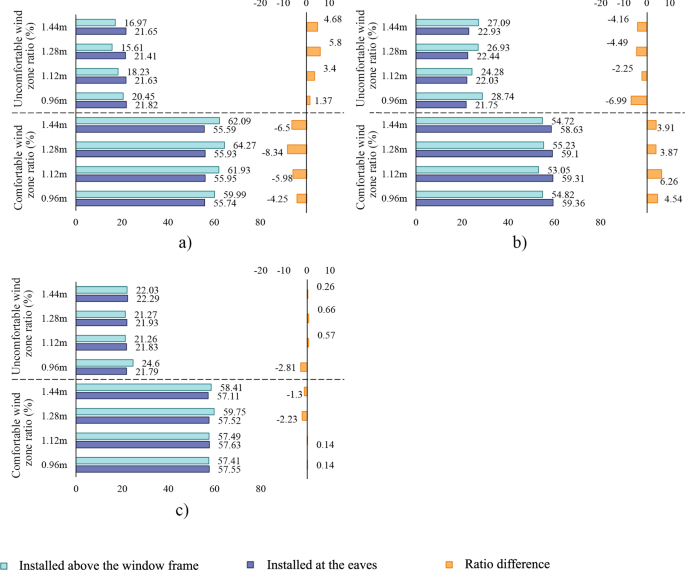

a 1.1 m evaluation plane; b 1.7 m evaluation plane; c Average values for the 1.1 m and 1.7 m evaluation planes.

From the comparison of the averages, when the Yinyan’s overhang length is 0.96 m, the difference in the comfortable wind zone ratio is positive, though small (0.14%), while the difference in the uncomfortable wind zone ratio is negative, reaching −2.81%. This suggests that with a Yinyan’s overhang length of 0.96 m installed at the eaves, the quality of the indoor wind environment is slightly better. When the overhang length of Yinyan is increased to 1.12 m, the difference in the comfortable wind zone ratio remains slightly positive (0.14%), while the difference in the uncomfortable wind zone ratio becomes positive as well (0.57%). This indicates that a 1.12 m long Yinyan installed above the window frame would be able to offer a marginal improvement on the indoor wind environment. When the Yinyan’s overhang lengths are 1.28 m, and 1.44 m, the difference in the comfortable wind zone ratios is negative (−2.23%, and -1.3%), and the difference in the uncomfortable wind zone ratios is positive (0.66%, and 0.26%), indicating that Yinyan with these overhang lengths, when installed above the window frame, result in a relatively better indoor wind environment quality.

To summarize, the position of the “Yinyan” has a minimal impact on both the maximum and minimum indoor wind speeds, though it does have some effect on the average wind speeds. When the “Yinyan” is installed at the eaves, the indoor average wind speed is higher. Considering both the comfortable and uncomfortable wind zone ratios, when Yingyan is installed at the eaves and its overhang length is 0.96 m, the indoor wind environment quality is slightly better. When Yinyan is installed above the window frame and its overhang lengths are 1.12 m, 1.28 m, or 1.44 m, the indoor wind environment quality is relatively better.

Discussion

The painters in the Song Dynasty demonstrated a systematic understanding of architectural design and construction. As a result, buildings depicted in “Wumu” paintings are precisely detailed, with standardized and accurate proportions54,55. By integrating “Wumu” paintings with the then building construction guide, it is possible to rebuild mock-ups for buildings from the Song Dynasty, consistent with the methodologies and conclusions proposed by Chiu et al. and Dong28,30. In this study, the Life along the Bian River at the Qing Ming Festival and Yingzao Fashi have been used as key references for developing a digital model of the two-story building. Integrating paintings of the Song Dynasty into architectural research helps address the scarcity of well-preserved building heritage from that period and provides essential information for the digital represervation of Song architecture. Furthermore, this approach emphasizes not only the cultural and artistic values of paintings from the Song Dynasty, but also their academic significance. The elements depicted in these paintings (e.g., architecture and clothing) serve as important visual documents for examining the social and historical development of the Song Dynasty.

The building component “Yinyan” examined in this study features flexible installation options. When installed at the eaves, it functions as an extension of the roof. Previous studies have shown that roof geometry significantly influences indoor natural ventilation, and the pitch of the roof also plays a role56,57. Tominaga et al. found that a roof pitch of 15° caused no significant change in pressure difference between the windward and leeward sides of a building, while a 30° pitch led to an increased pressure difference58. Peren et al. demonstrated that a 45° roof pitch significantly enhances indoor airflow volume59. In their experiments on eaves, they further observed that windward eaves improved ventilation more effectively than leeward ones. The most favorable ventilation performance was achieved when the windward eaves were set at 27° (aligned with the roof pitch) and the leeward eaves at 90°60. In the present study, the “Yinyan” forms an angle of approximately 20° with the horizontal plane. Analysis of both vertical airflow and indoor wind speed distribution indicates that its impact on overall ventilation is limited, consistent with previous findings. However, it does influence the ratios of comfortable and uncomfortable wind zones. When installed above the window frame, the “Yinyan” exerted a greater impact on indoor airflow, leading to more notable changes in the comfortable and uncomfortable wind zone ratios.

The statistical results of 8 cases are summarized in Table 5. When the “Yinyan” is installed at the eaves (Cases 1–4), the comfortable wind zone ratio on the 1.1 m evaluation plane initially increases and then decreases following the increasing of its overhang length, with Case 2 showing the highest ratio. Conversely, the uncomfortable wind zone ratio first decreases and then increases, reaching its lowest value in Case 3. On the 1.7 m evaluation plane, the comfortable wind zone ratio gradually decreases, while the uncomfortable wind zone ratio increases as the overhang length of Yinyan increases. Based on the mean values from both evaluation planes, the indoor wind environment quality is relatively better when the Yinyan’s overhang length is 1.12 m (Case 2), whereas it is slightly worse when the Yinyan’s overhang length is 1.44 m (Case 4).

Table 5 Comfortable and uncomfortable wind zone ratios for Yinyan with different overhang lengths and installation positions

When the “Yinyan” is installed above the window frame (Cases 5–8), the comfortable wind zone ratio on the 1.1 m evaluation plane initially increases and then decreases following the increasing of its overhang length, reaching the highest value in Case 7. Conversely, the uncomfortable wind zone ratio first decreases and then increases, with Case 7 showing the lowest value. On the 1.7 m evaluation plane, Case 7 also exhibits the highest comfortable wind zone ratio, while Case 6 shows the lowest uncomfortable wind zone ratio. Based on the mean values from both evaluation planes, the indoor wind environment quality is relatively better when the Yinyan’s overhang length is 1.28 m (Case 7), whereas it is slightly worse when the Yinyan’s overhang length is 0.96 m (Case 5). Out of the 8 cases, Case 7 demonstrates the best indoor wind environment, while Case 5 shows the worst case scenario. This indicates that, in Kaifeng City and other cities under similar climatic conditions, installing “Yinyan” above the window frame in traditional buildings would significantly improve the indoor wind environment. An appropriate overhang length can enhance the indoor wind environment. For small-scale traditional buildings with 2-3 standard rooms, installing a Yinyan with an overhang length of 1.28 m (equal to 4 chi) above the window frame would result in a relatively better indoor wind environment. These insights offer scientific and quantitative evidence for the multisensory digital representation of historical architecture in Kaifeng back to the Song Dynasty, as well as for the development of eco-design educational practices rooted in traditional wisdom.

In Lin’an (current Hangzhou City) during the Southern Song Dynasty, where rainfall was frequent, people desired more sheltered exterior spaces for outdoor activities even in raining days. As a result, the “Yinyan” gradually extended outward and was supported by additional columns, eventually evolving into an exterior corridor or “Xuan” (a.k.a. a covered exterior corridor with an arched roof). This evolution can be seen in paintings of the Southern Song Dynasty, such as Enjoying the Cold Air in Pavilion over water (Shui Ge Na Liang Tu in Pinyin) and Four Seasons (Si Jing Shan Shui Tu·in Pinyin) (Fig. 16)29,61. These examples demonstrate how, in response to the regional microclimatic conditions, the “craftsmen/architects” in the Song Dynasty adapted the form and size of “Yinyan” (and other climate-responsive architectural components) to create more comfortable built environments. The wisdom of climate-sensitive environmental designs has been properly recorded and inherited in Song Dynasty paintings. When digitally reconstructing and representing the architectural heritage of the Song Dynasty, such human-centered design wisdom from historical paintings, as reflected in the adaptable and personalized building component “Yinyan”, should be taken into account. Adjusting the form and sizes of climate-responsive components in accordance with environmental and climatic conditions not only enhances the accuracy of digital representation but also ensures the faithful transmission of traditional design thinking and the relevant architectural knowledge. This approach provides a solid technical foundation for the conservation and restoration of Song architecture. Furthermore, by integrating the climate-adaptive design wisdom embedded in Song paintings with modern technologies and materials, it is possible to apply these principles to contemporary architecture. Such practices not only represent an innovative approach to cultural heritage transmission but also offer valuable contributions to the sustainable development of today’s human settlements.

Fig. 16: Evolution of the Yinyan in partial views of Song Dynasty paintings.
Fig. 16: Evolution of the Yinyan in partial views of Song Dynasty paintings.
Full size image

a Enjoying the Cold Air in Pavilion over water; b Four Seasons.

This study presents a preliminary analysis on how the position and sizes of the “Yinyan” influence the indoor wind environment in the traditional architecture of the Kaifeng region, using a digital mock-up derived from Life along the Bian River at the Qing Ming Festival. However, since the digital representation is based on a historical painting, certain inaccuracies may exist. Additionally, the simulation is conducted under contemporary climate conditions, which differ from those in Song Dynasty. These result in certain limitations of the study. Future research will incorporate more preserved Song architectural heritages to enhance the reliability of digital representation and will explore a wider range of climate scenarios and external configurations to further develop the theoretical framework of climate-responsive design in traditional architecture. Moreover, as the “Yinyan” affects not only ventilation but also other aspects such as indoor daylighting and solar gains, future research needs to explore the combined effects of “Yinyan”, aiming to offer a more comprehensive theoretical foundation for the multisensory digital representation of architectural heritage.
