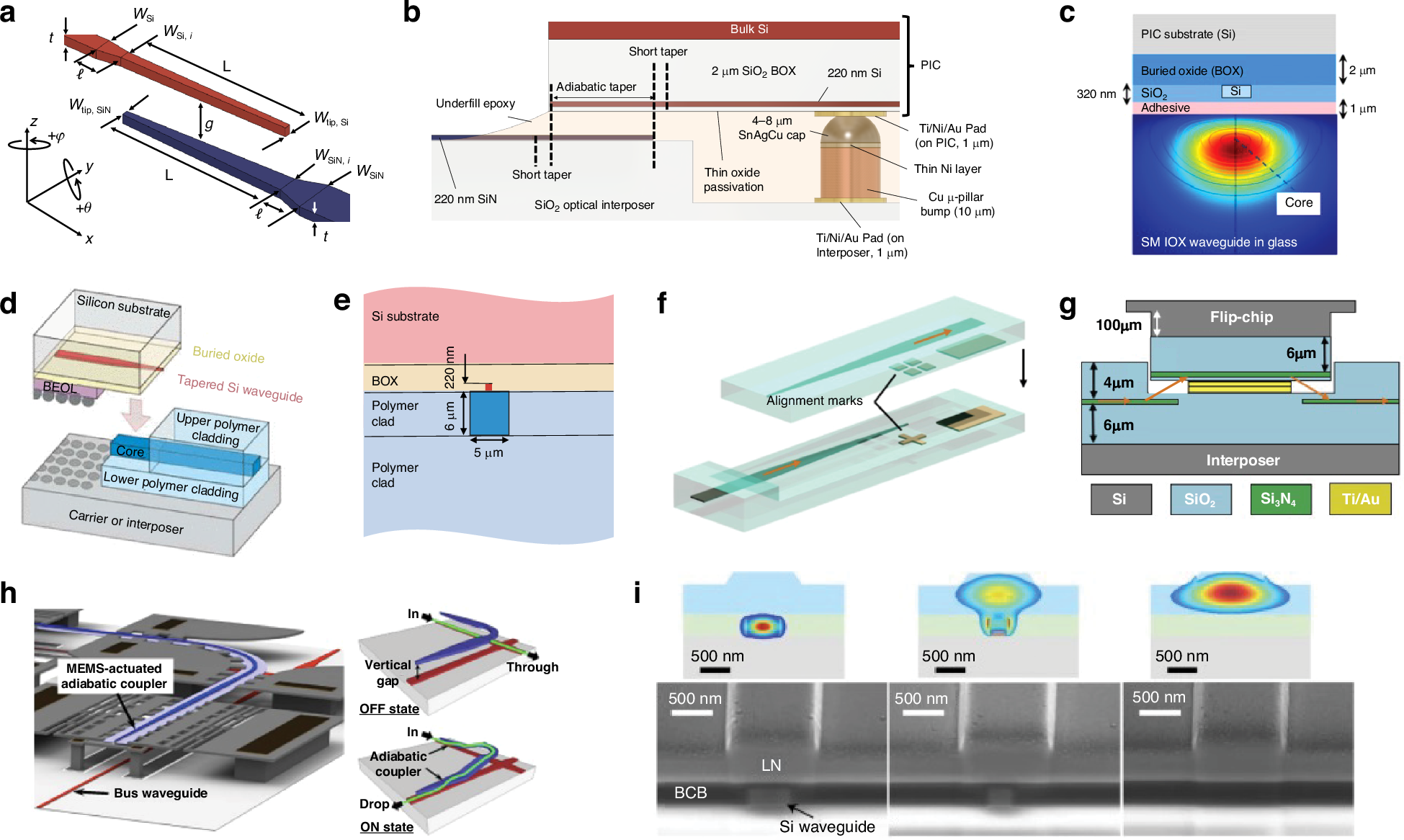

Fig. 11: Examples of waveguide-to-waveguide evanescent couplers.
From: Advances in waveguide to waveguide couplers for 3D integrated photonic packaging
