Fig. 7 | Microsystems & Nanoengineering

Fig. 7

From: Fully integrated wearable impedance cytometry platform on flexible circuit board with online smartphone readout

Fig. 7

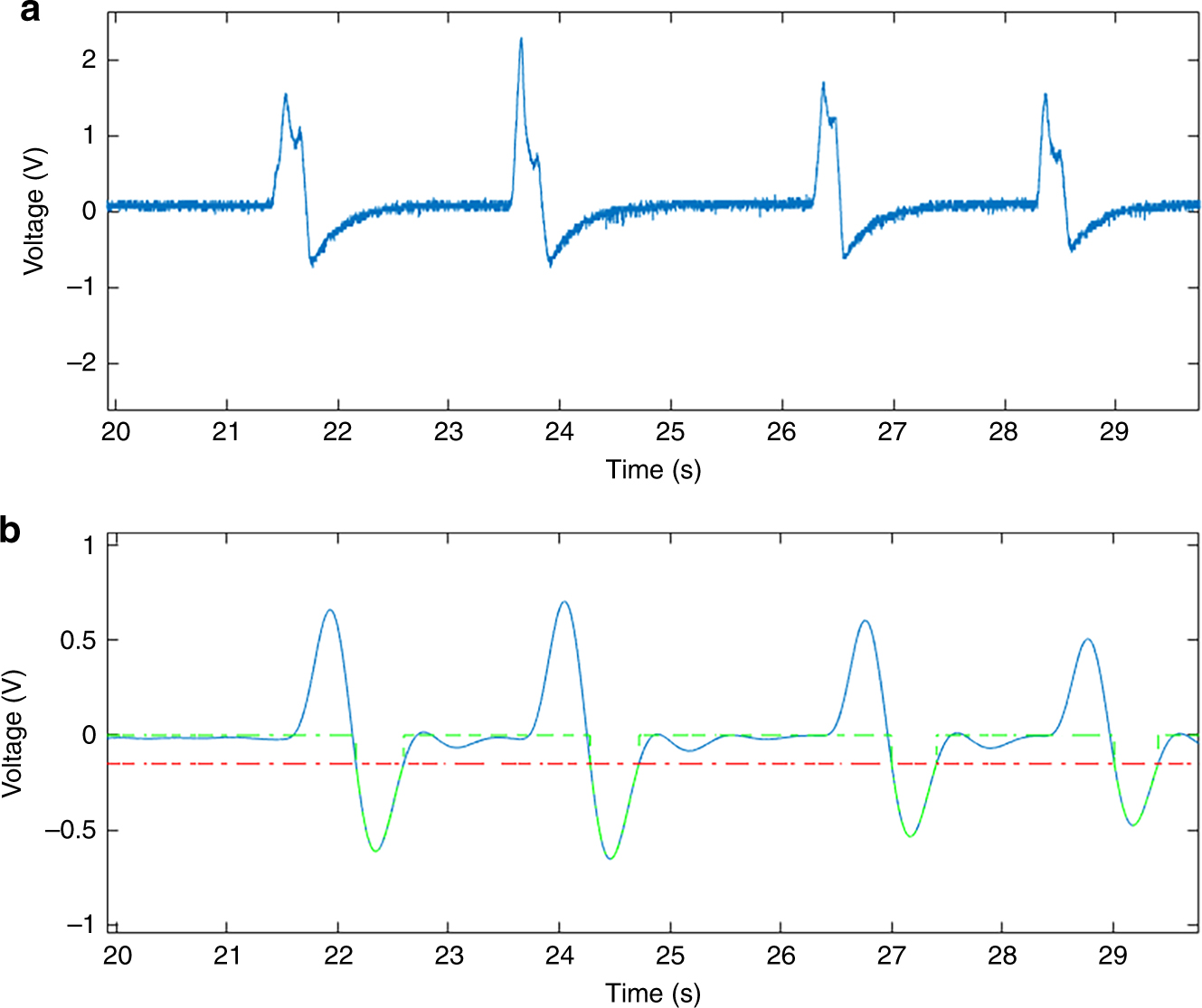

Selected data plotted to MATLAB from 10-minute experiment with human blood cells flowing through a 30-μm-wide channel during an experiment with a duration of 10 min a without modification b after applying a Butterworth band-pass filter using the Signal Processing Toolbox. The red dashed line represents the negative threshold voltage of −0.2 V, and the green dashed line appears for peaks which included in the final count
