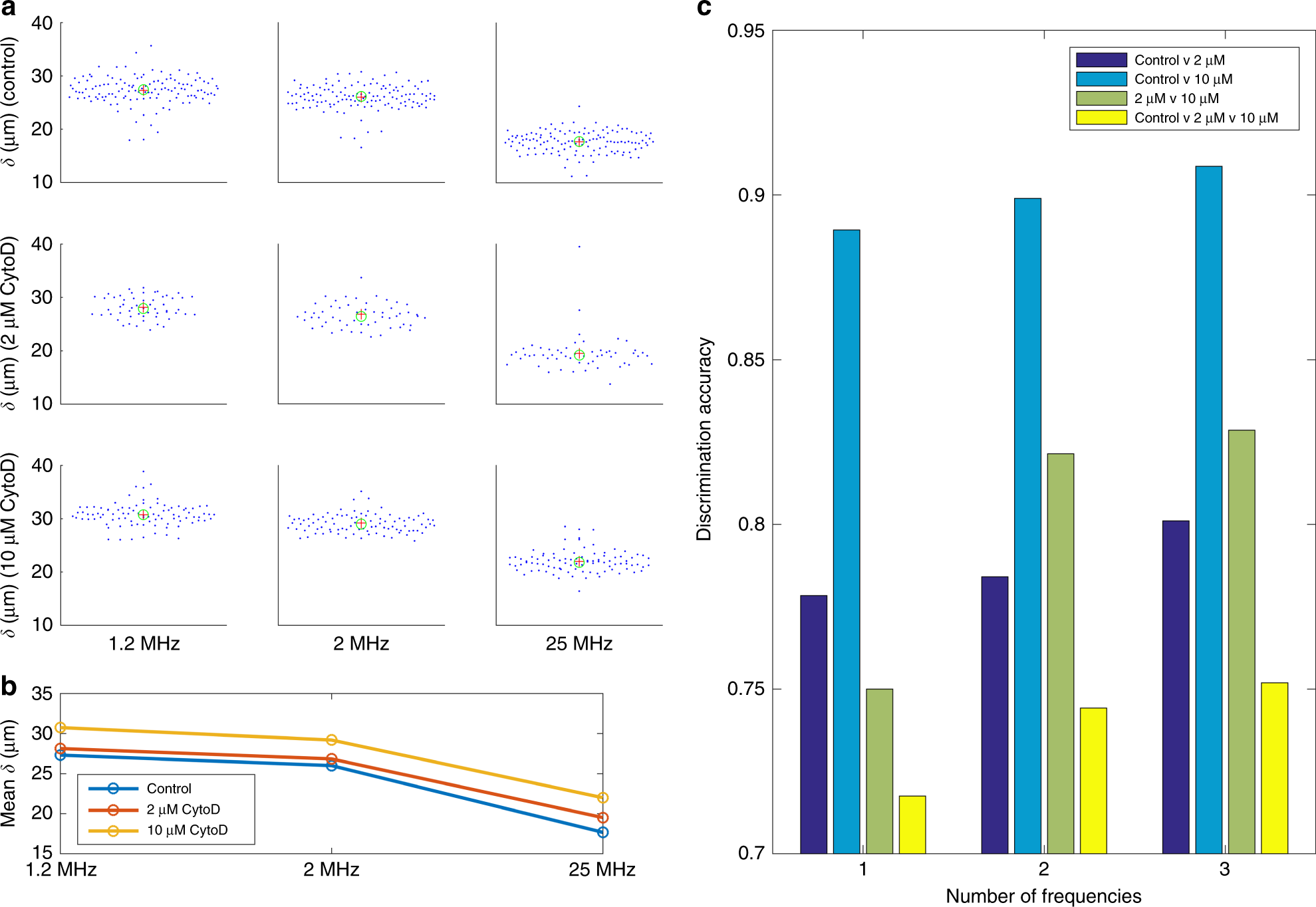

Fig. 4: Multi-frequency balance positions of HL60 cells.
From: Multi-frequency dielectrophoretic characterization of single cells
a Balance positions for 262 HL60 cells across treatment condition and frequency (+=mean, o = median). b Balance position means at all three frequencies separated by treatment condition. c Discrimination accuracies as the number of measured frequencies changes. The yellow bars signify classification into one of three possible classes, whereas the other colors signify classification into one of two possible classes
