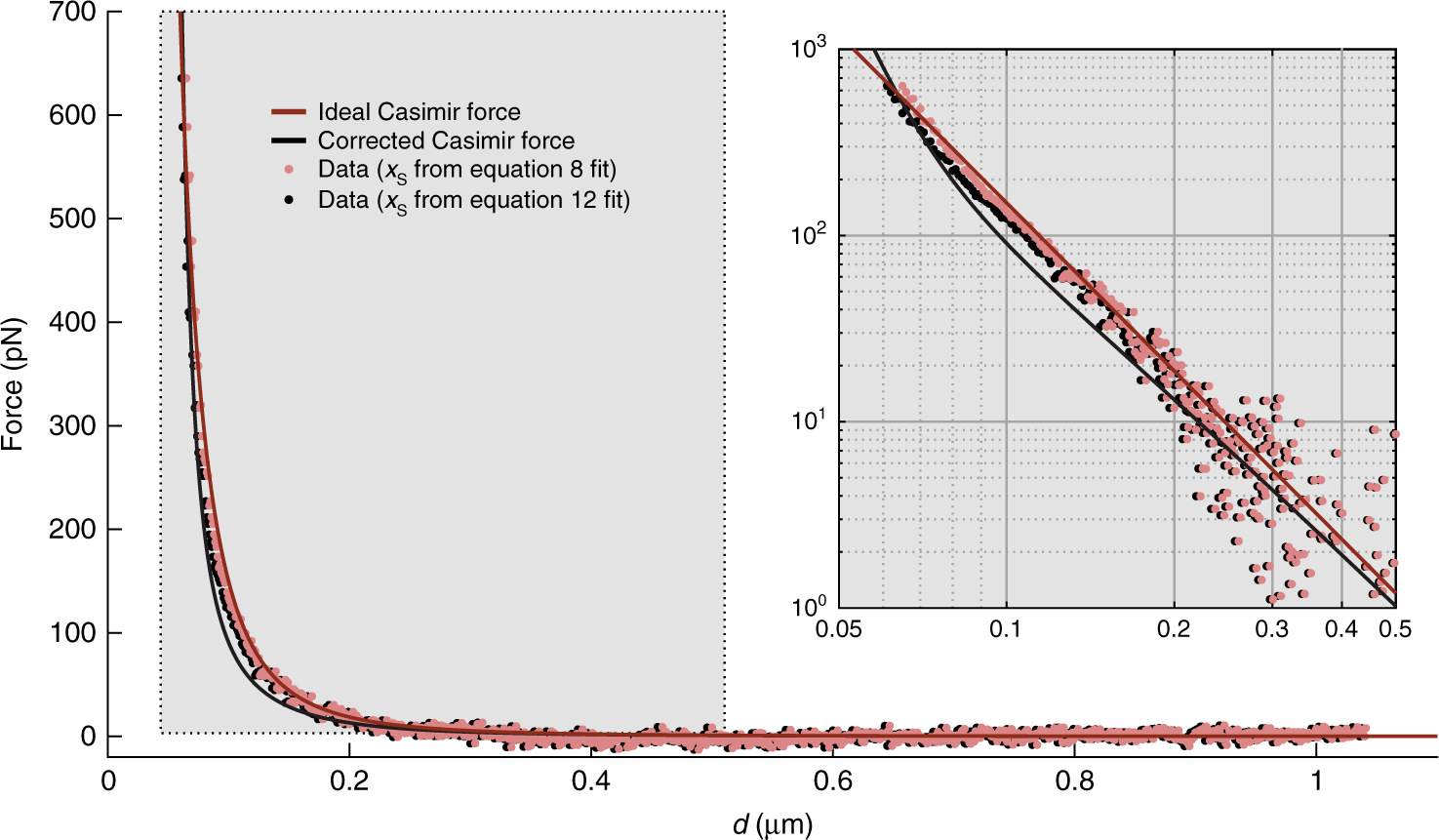

Fig. 3: Casimir force measurements compared with ideal theory (Eq. 8) (red) and theory for real metals (Eq. 12) (black).

From: Building a Casimir metrology platform with a commercial MEMS sensor

Fig. 3

Inset shows the highlighted section of the data in log–log scale for better comparison between data and theory at small separations. The two sets of data are identical but shifted by 2 nm along the abscissa because of the different values of xs returned from the fits to Eqs. 8 and 12
