Fig. 9: Distribution analysis results. | Microsystems & Nanoengineering

Fig. 9: Distribution analysis results.

From: Machine learning metrology of cell confinement in melt electrowritten three-dimensional biomaterial substrates

Fig. 9

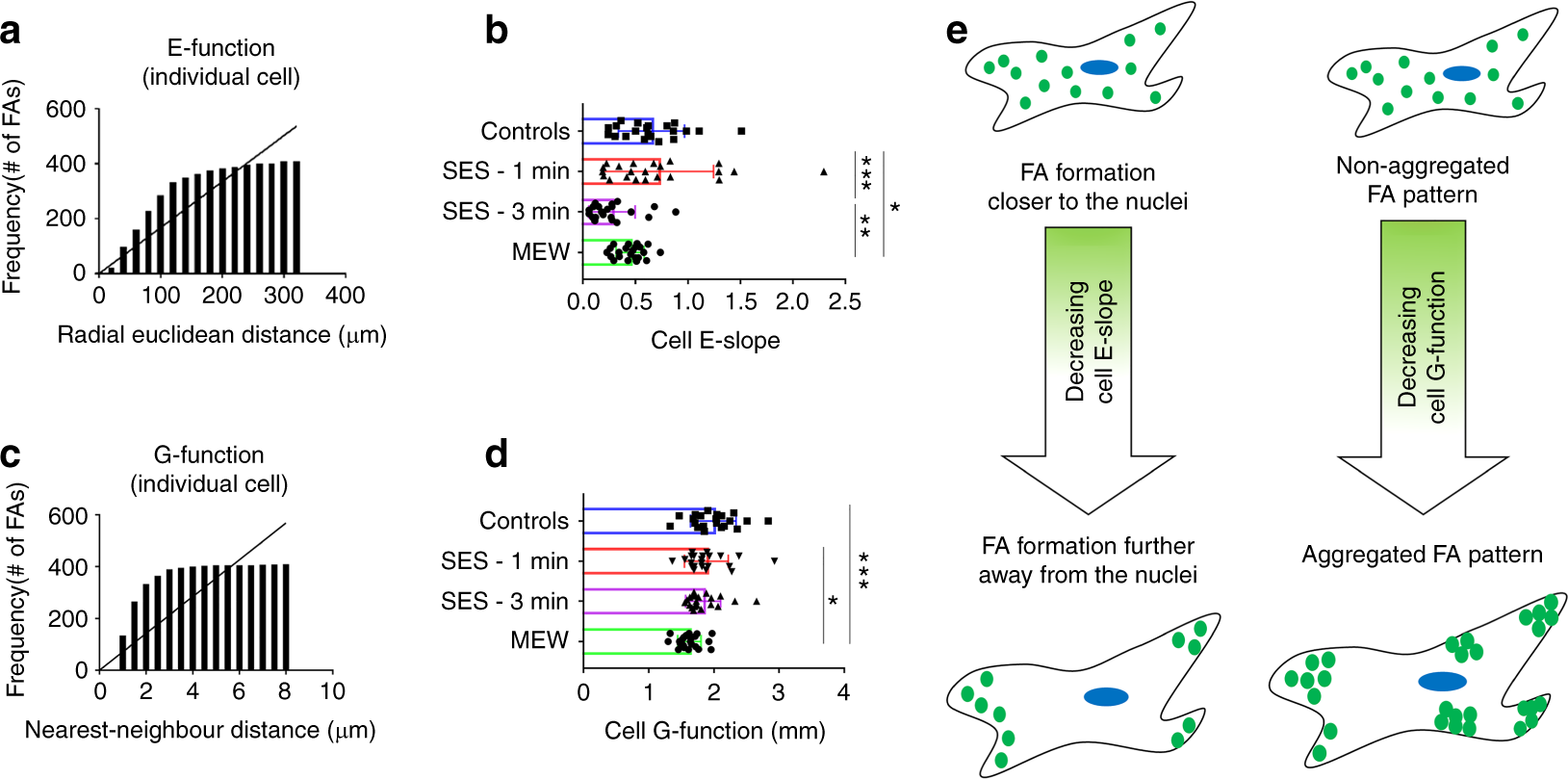

a Cumulative frequency distribution graph plotting the frequency of mature FAs detected within an individual cell as a function of the respective radial Euclidean distances computed based on the detected nucleus and FAs centroids. b Cell E-slope; mean ± standard deviation, total of n = 88 cells analyzed, *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001, ****P ≤ 0.0001. c Cumulative frequency distribution graph plotting the frequency of mature FAs detected within an individual cell as a function of the respective nearest neighbor distances computed based on the detected FAs centroids. This is defined as the G-function. d Cell G-function metric; mean ± standard deviation, total of n = 88 cells analyzed, *P ≤ 0.05, **P ≤ 0.01, ***P ≤ 0.001, ****P ≤ 0.0001. e Visual illustration of the spatial distribution metrics for mature FAs
