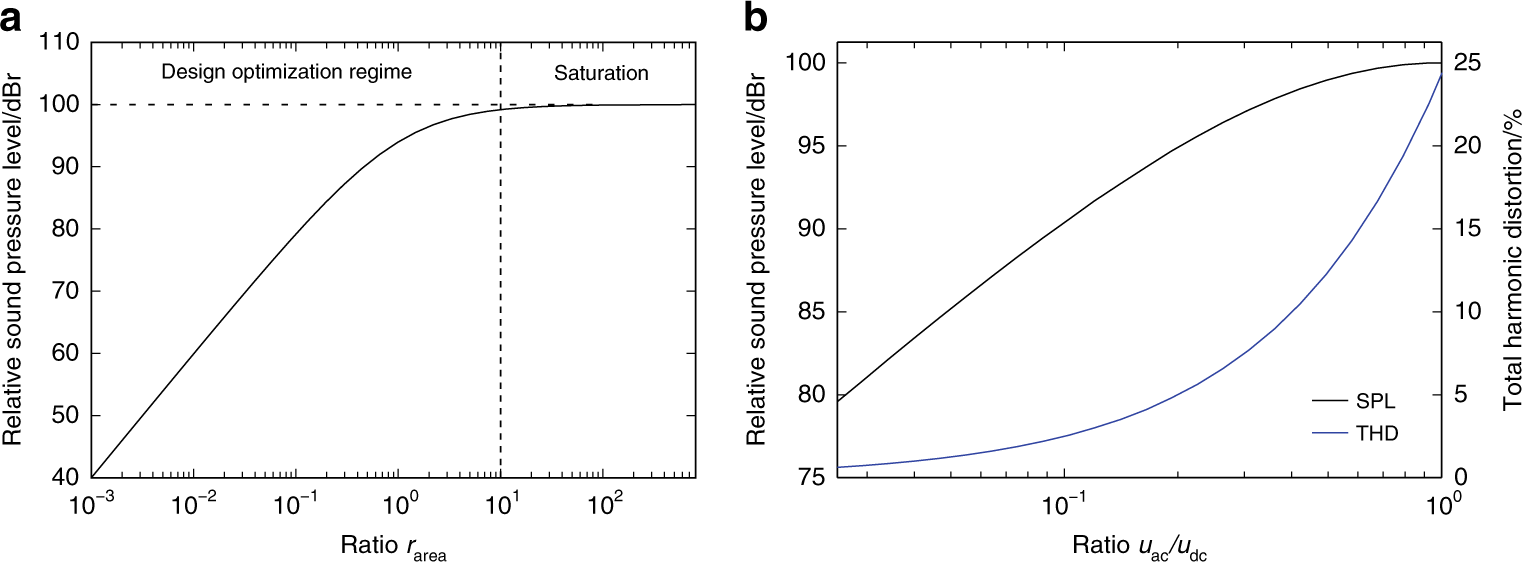

Fig. 2: Sound output dependencies on geometry and electrical driving.
From: Concept and proof for an all-silicon MEMS micro speaker utilizing air chambers
a Dependency of a relative sound pressure level (arbitrary reference) as a logarithmic measure versus design factor rarea. b Relative sound pressure level and THD (static domain) versus driving regime uac/udc for udc + uac = const
