Fig. 3: Geometric setup of fabricated MEMS speaker
From: Concept and proof for an all-silicon MEMS micro speaker utilizing air chambers

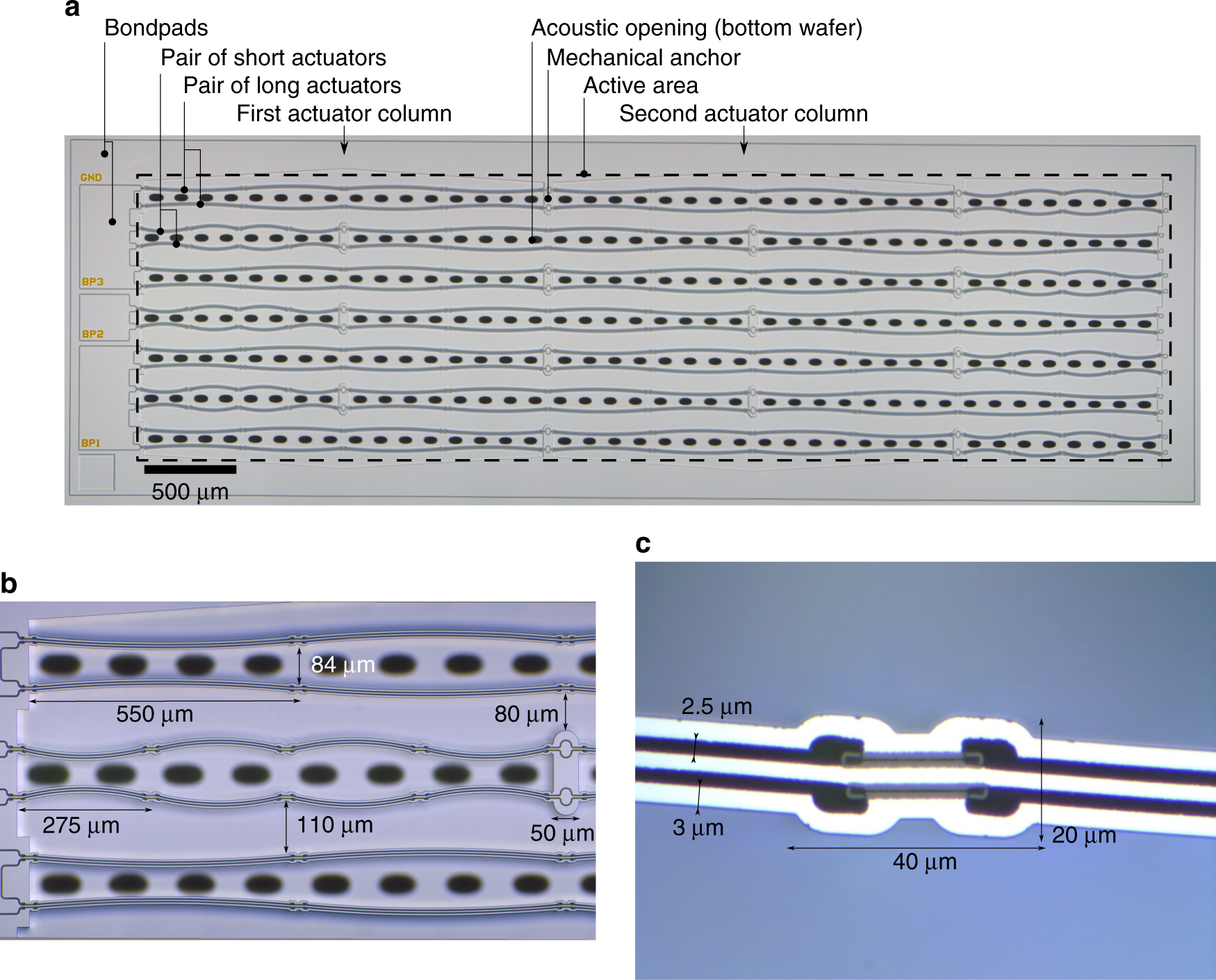

a Top view of the device layer showing actuators and their arrangement. Sample was taken out during fabrication without the cover wafer being bonded. b Enlarged partial view of three rows of actuators. c Detail of an actuator including dimensions
