Fig. 2: SAXS in hiPSC-CMs.
From: Probing the subcellular nanostructure of engineered human cardiomyocytes in 3D tissue

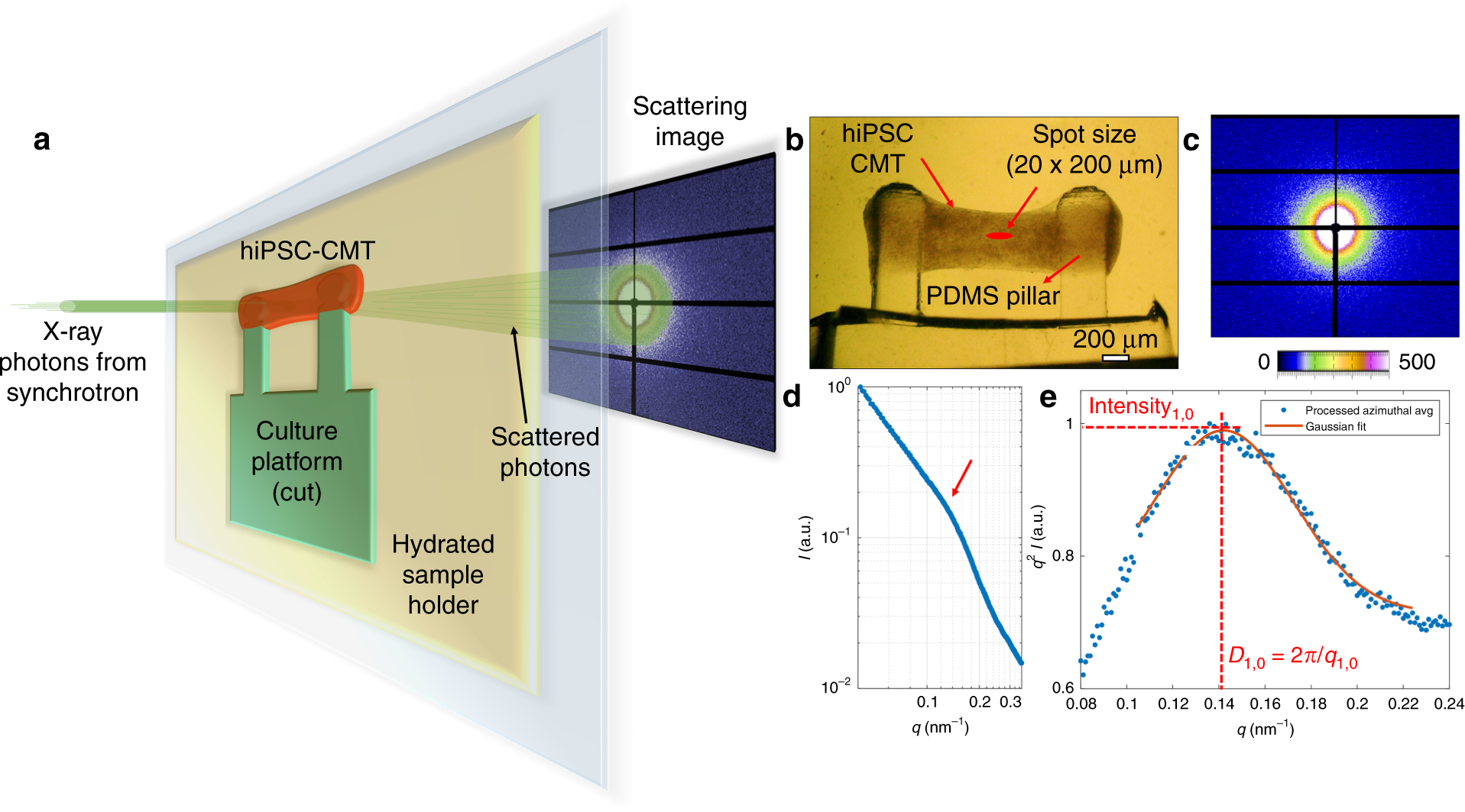

a Schematic of synchrotron X-ray scattering of 3D tissue on passive mechanical platform. b Platform with hiPSC-CMs grown in a 3D microtissue environment. c Typical SAXS image from the center of a tissue, where the color bar is units of intensity (photons). d Azimuthal average of scattering image in c. e q2 weighted peak in d fit by a Gaussian
