Fig. 5: Modulation effect on a light beam. | Microsystems & Nanoengineering

Fig. 5: Modulation effect on a light beam.

From: Triboelectric effect-modulated varifocal liquid lens

Fig. 5

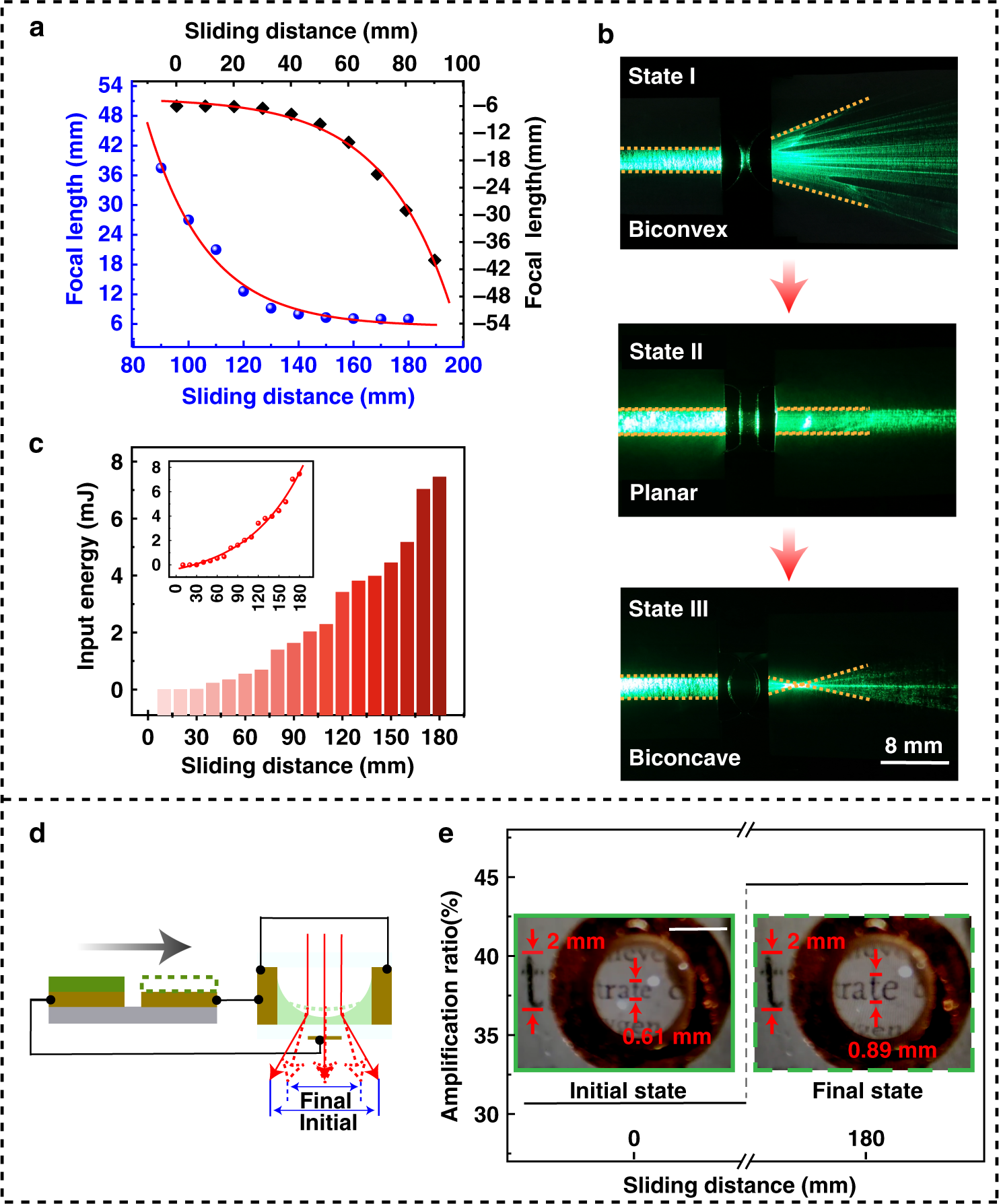

a Relationship between the sliding distance of the TENG and focal length. b Photograph of a laser beam modulated by the TVLL. c Energy consumed in the modulation process. d Proposed novelty magnifying glass based on the TVLL. e Magnification corresponding to different states (scale bar, 2 mm)
