Fig. 3: Effect of electroporation voltage amplitude (VEP) on the success of intracellular nanovolcano recordings. | Microsystems & Nanoengineering

Fig. 3: Effect of electroporation voltage amplitude (VEP) on the success of intracellular nanovolcano recordings.

From: Nanovolcano microelectrode arrays: toward long-term on-demand registration of transmembrane action potentials by controlled electroporation

Fig. 3

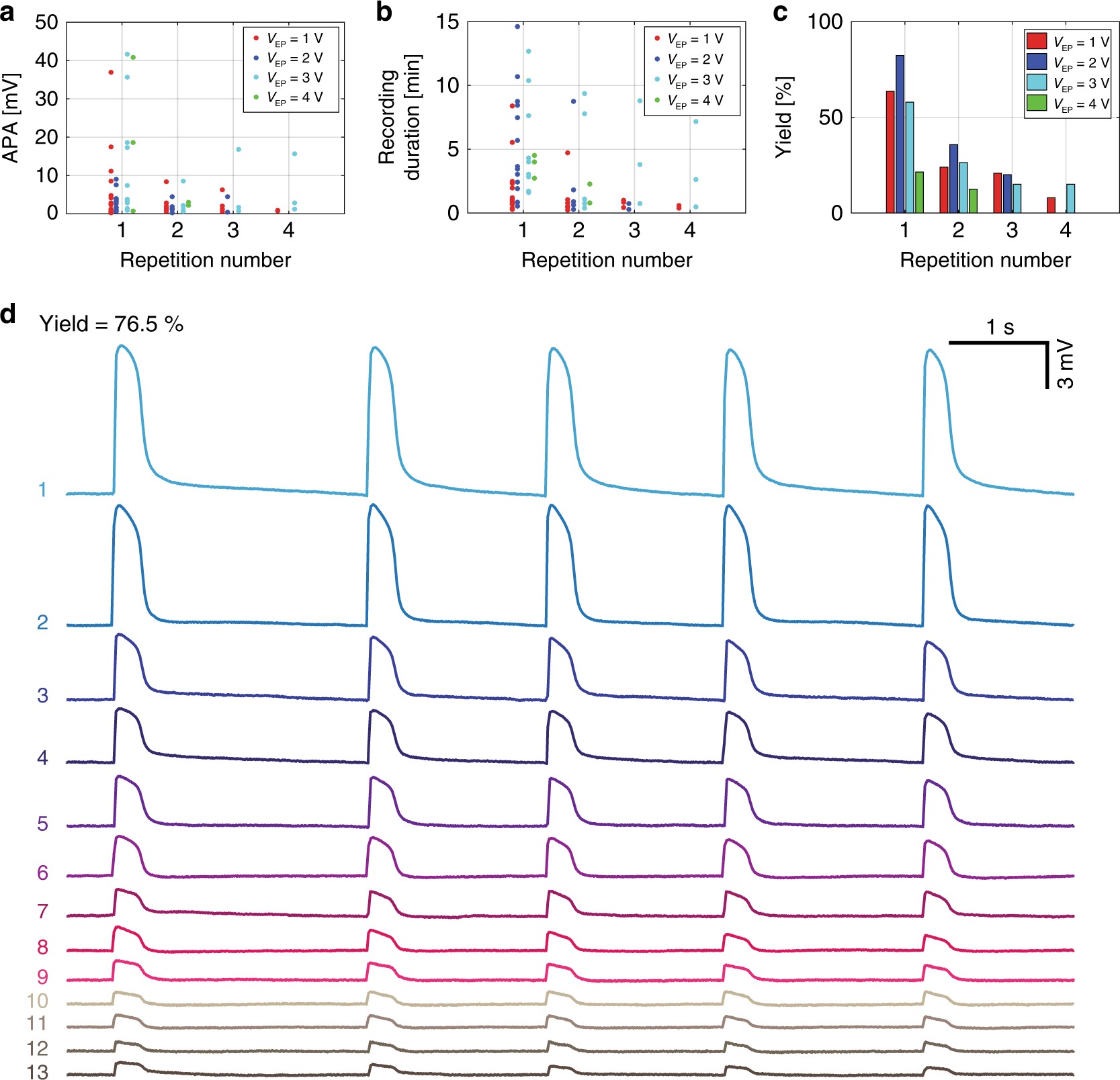

Evolution of the a APA, b recording duration, and c yield of intracellular access during consecutive electroporations for electroporation voltages ranging from 1 to 4 V. d Simultaneous recording of action potentials from 13 different channels of a nanovolcano array as obtained after the first electroporation with VEP = 2 V (yield of 76.5%)
