Fig. 7: Fabrication of the PDMS-based GIE-trapping device.
From: Surface-modified elastomeric nanofluidic devices for single nanoparticle trapping

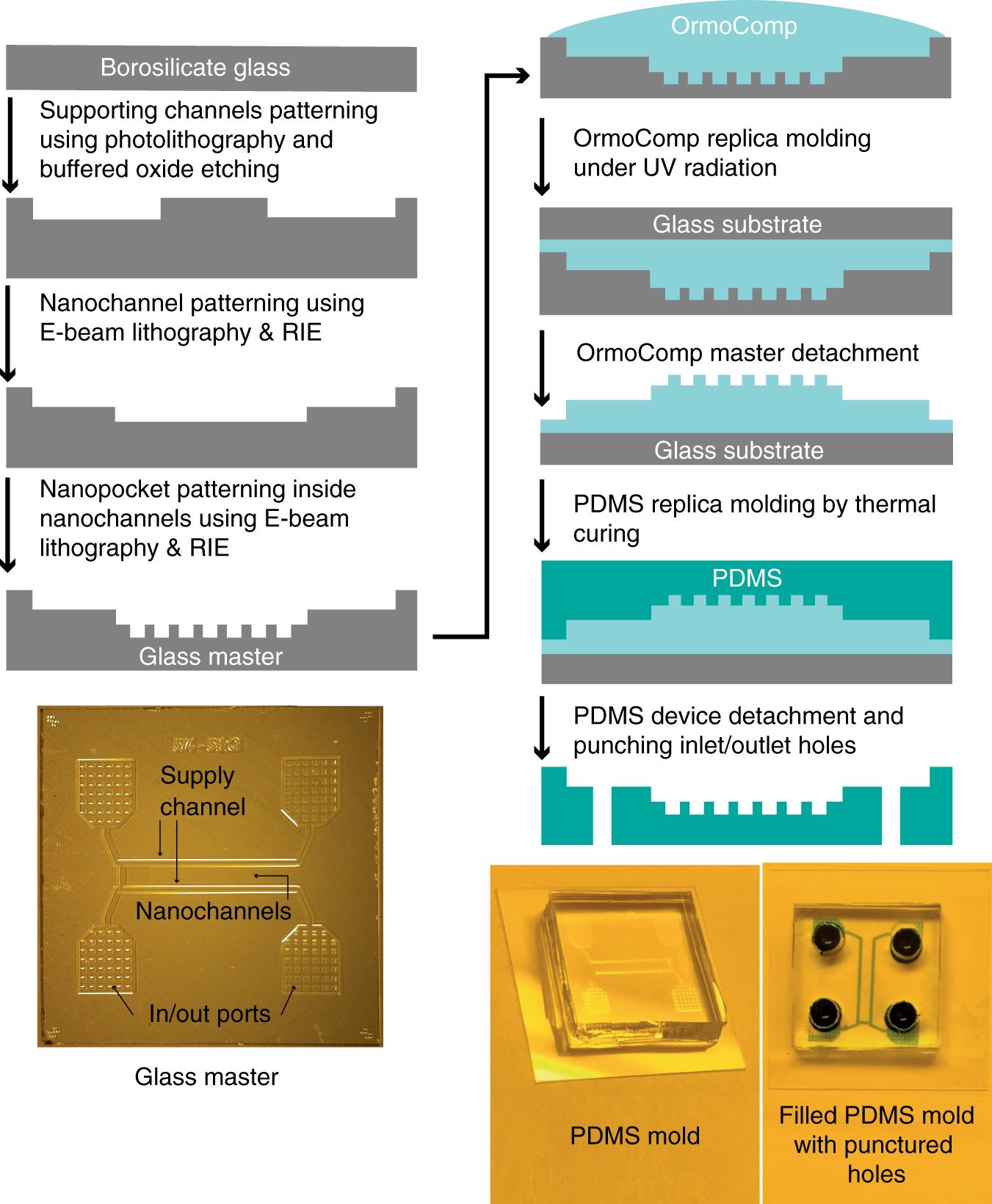

Schematics of the glass-master fabrication process in the left column and PDMS replica molding from the glass master using UV-curable resist OrmoComp® in the right column. Supply channels and in/out ports for the glass master are indicated with arrows. To inject a particle solution into the supply channels and nanochannels, 3 mm wide holes are punched at the location of supply ports
