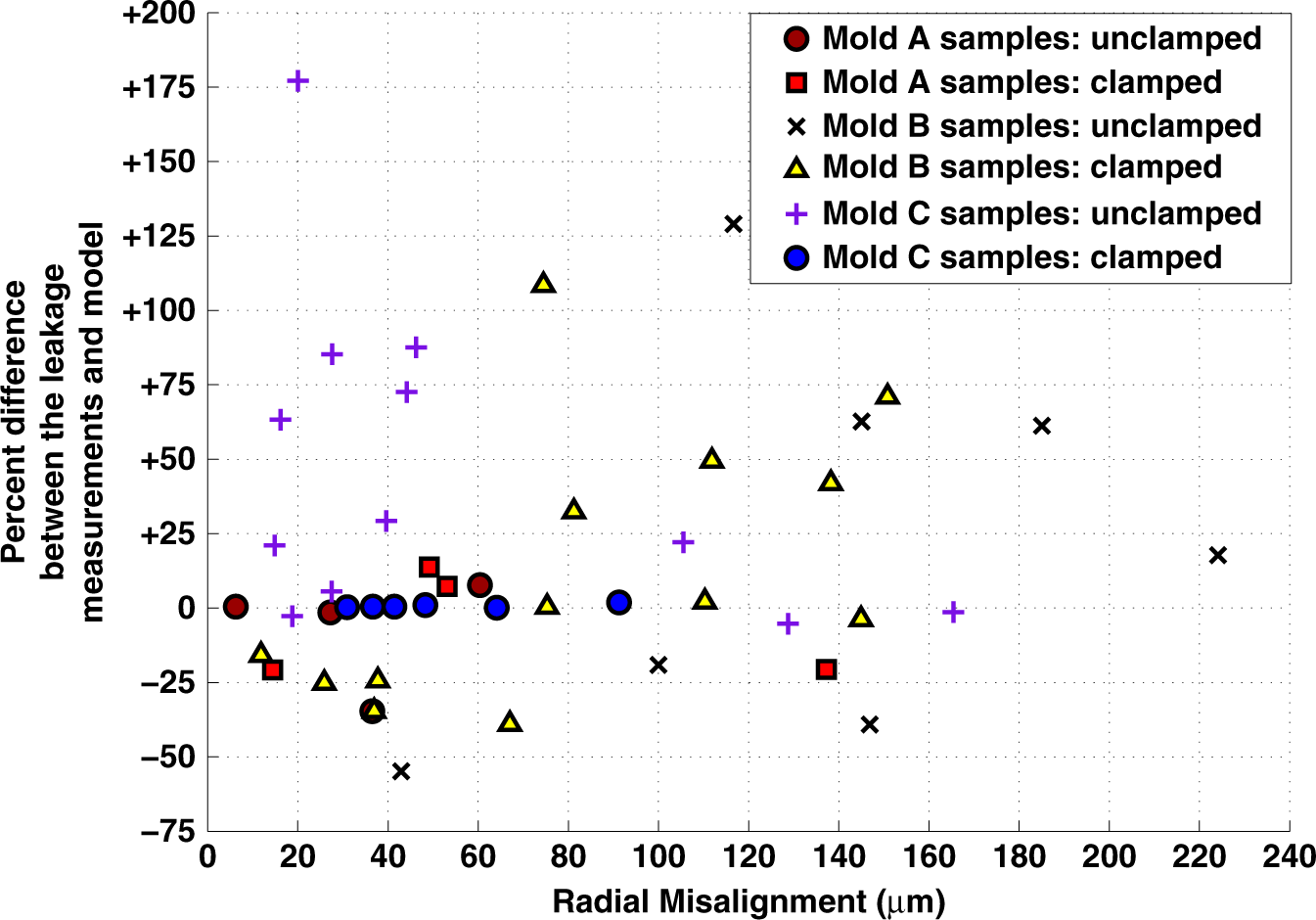

Fig. 7: Experimental Sensitivity of Leakage Pressures to Radial Misalignment.

A scatter plot of the radial misalignment of 46 sample assemblies against the percent difference between the measured leakage pressure and the model.
