Fig. 4: Prefunctionalizing sensors with probe antibody.

From: A microwell-based impedance sensor on an insertable microneedle for real-time in vivo cytokine detection

Fig. 4

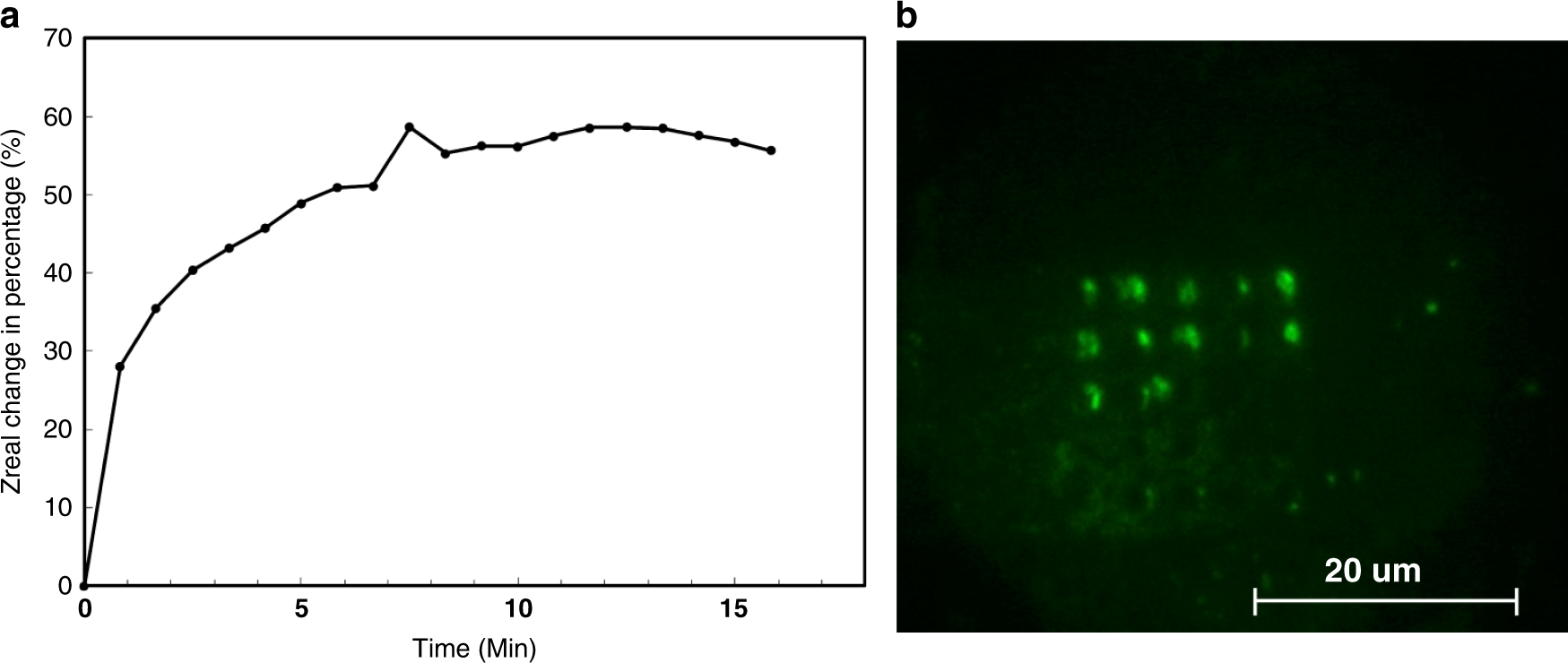

a Real part of the sensor impedance measured at 100 kHz as a function of time during antibody adsorption. Immobilization of anti-hIL8 results in an increase in the real component of sensor impedance. b Optical fluorescence microscopy image of the sensor microwell region after functionalization with fluorescein-conjugated anti-hIL8 (green)
