Fig. 7: Design of the MNM platform to simulate microgravity conditions for Arabidopsis seeds.

From: A magnetically enabled simulation of microgravity represses the auxin response during early seed germination on a microfluidic platform

Fig. 7

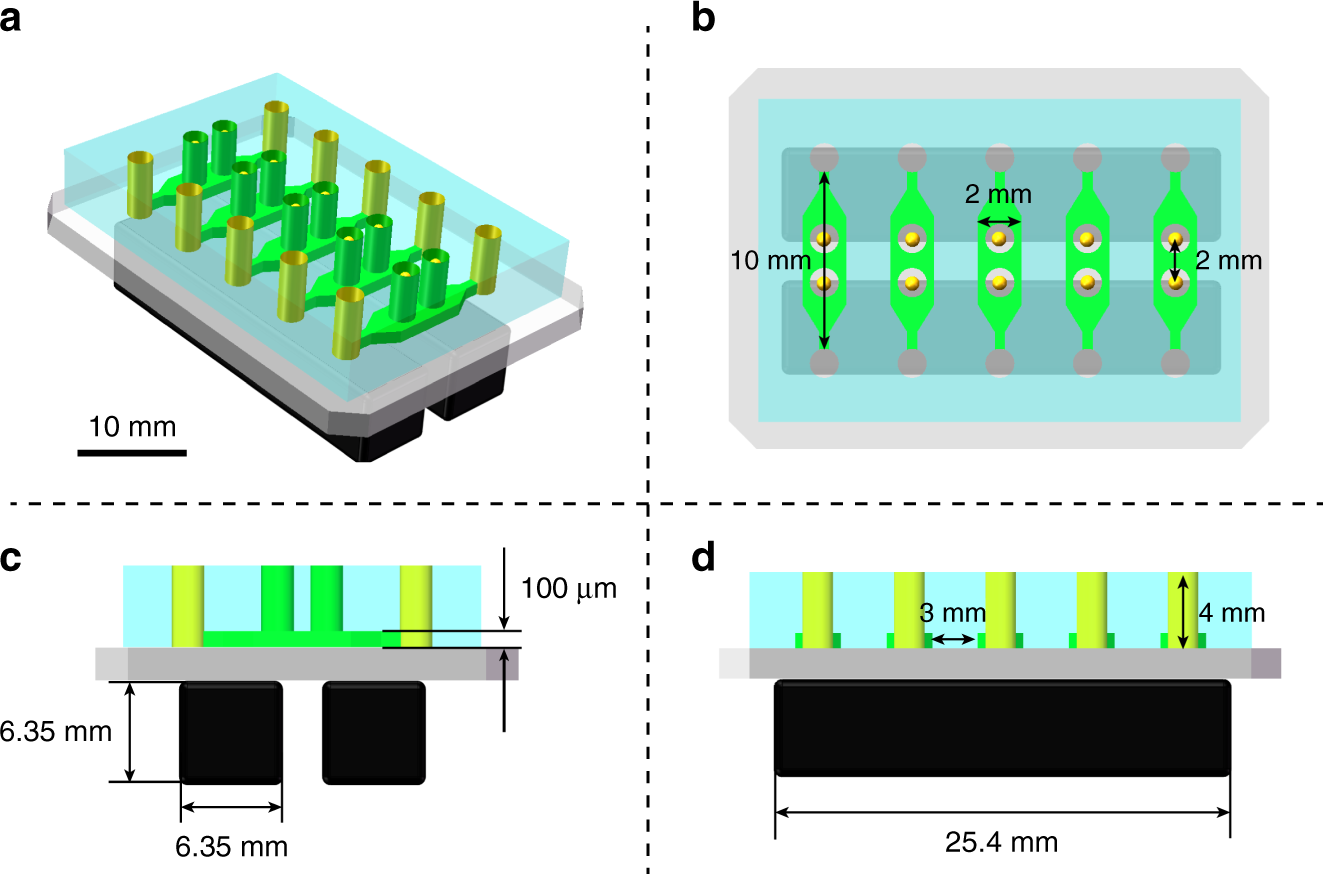

a Three-dimensional view of the MNM platform. Scale bar = 10 mm. b Top view of the chip with five microchannels for seed cultivation. c Layout of the microdevice showing the setting of each microchannel and the magnets. d Layout of the microdevice with the position of five inlets and magnets
