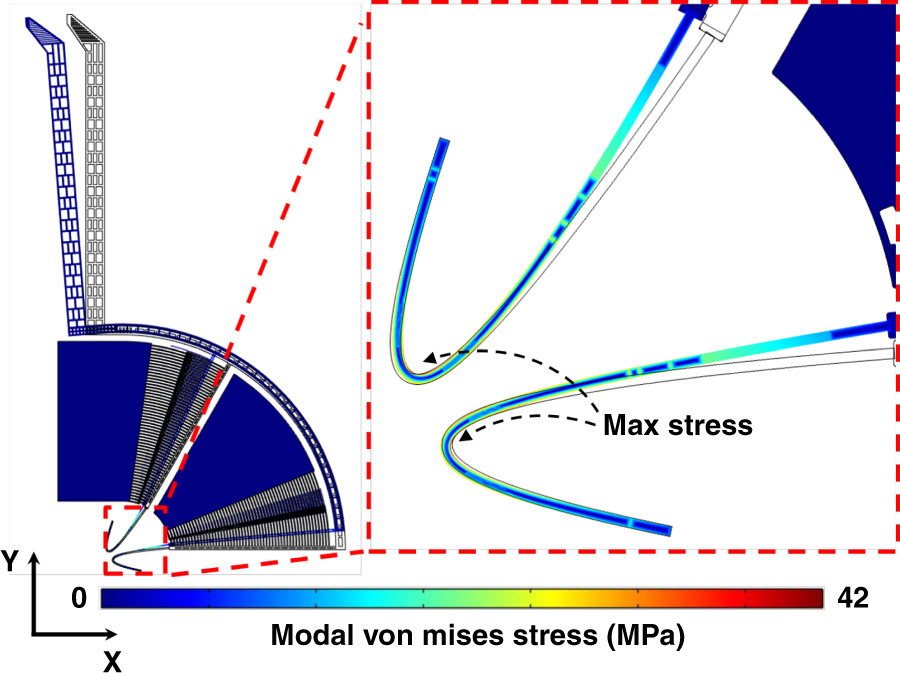

Fig. 4: Optimization result.
From: Design of a large-range rotary microgripper with freeform geometries using a genetic algorithm
A von Mises stress contour plot of the optimal freeform design CB7-D1 with an actuation voltage of 53 V and an XT of 100 μm
