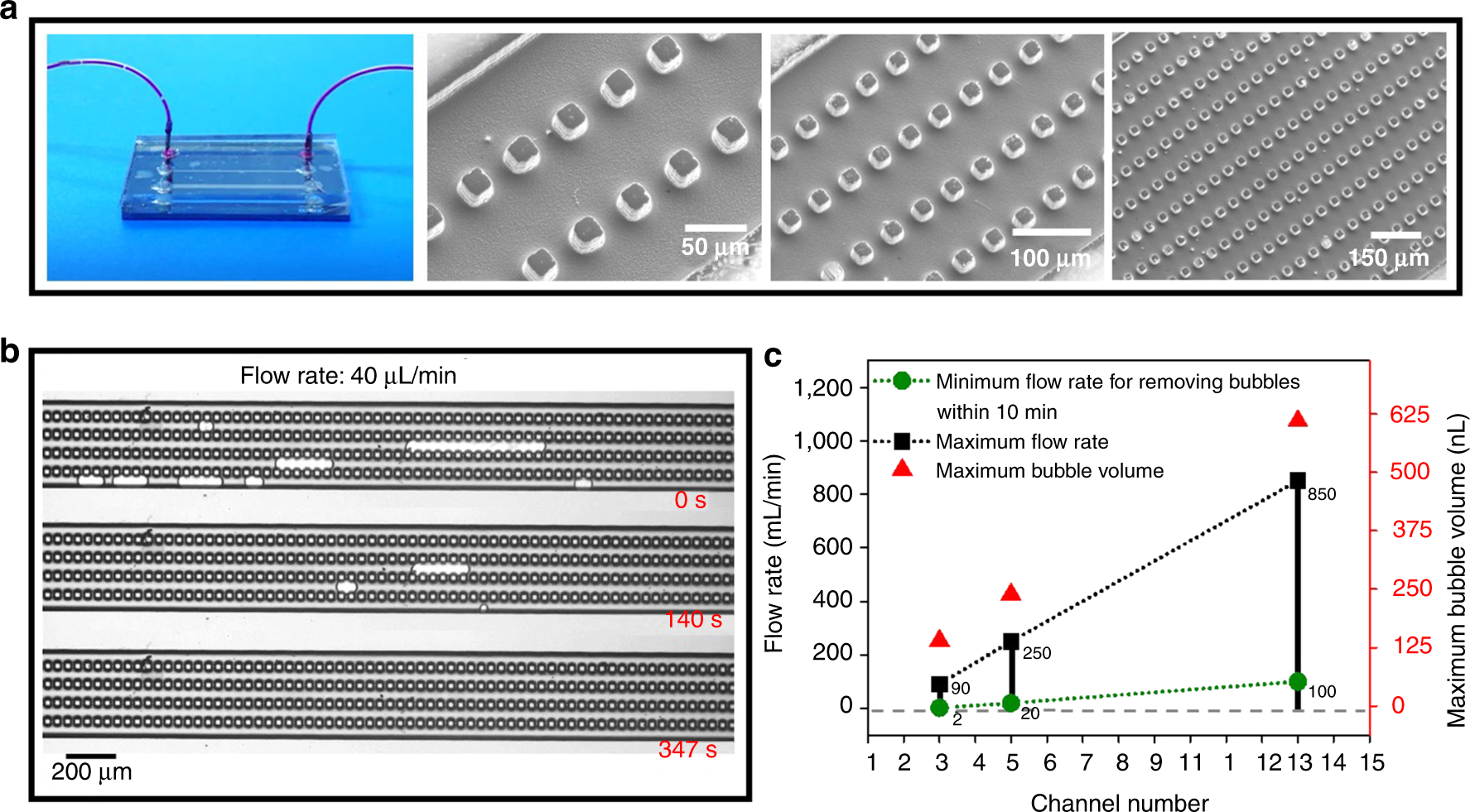

Fig. 4: Bubble removal performance of microchannel arrays.
From: A bioinspired bubble removal method in microchannels based on angiosperm xylem embolism repair
a Photograph and SEM images of microchannel arrays. b The bubble removal device with five microchannels based on the BBR method is capable of eliminating continuous bubbles. c Variation in the flow rate with respect to the number of microchannels
