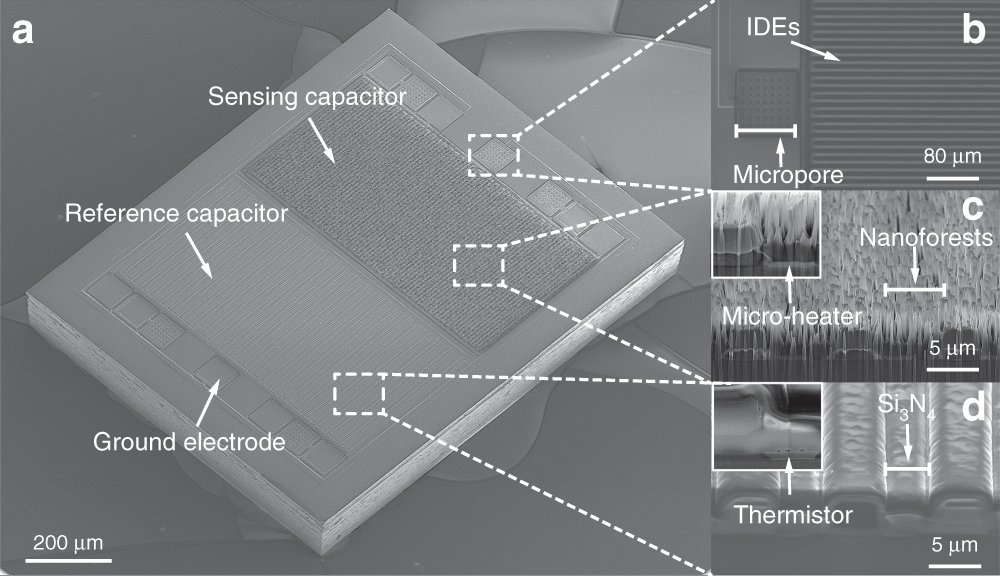

Fig. 2: SEM images of the triple-layer humidity sensor.
From: A nanoforest-based humidity sensor for respiration monitoring
a The novel humidity sensor; b The IDEs; c The sensing capacitor, where the inset shows the microheater below the nanoforests; and d The reference capacitor, where the inset shows the thermistor located below the dielectric material
