Fig. 6: TEM of ZnO nanowires. | Microsystems & Nanoengineering

Fig. 6: TEM of ZnO nanowires.

From: Electrospun carbon nanofibre-assisted patterning of metal oxide nanostructures

Fig. 6

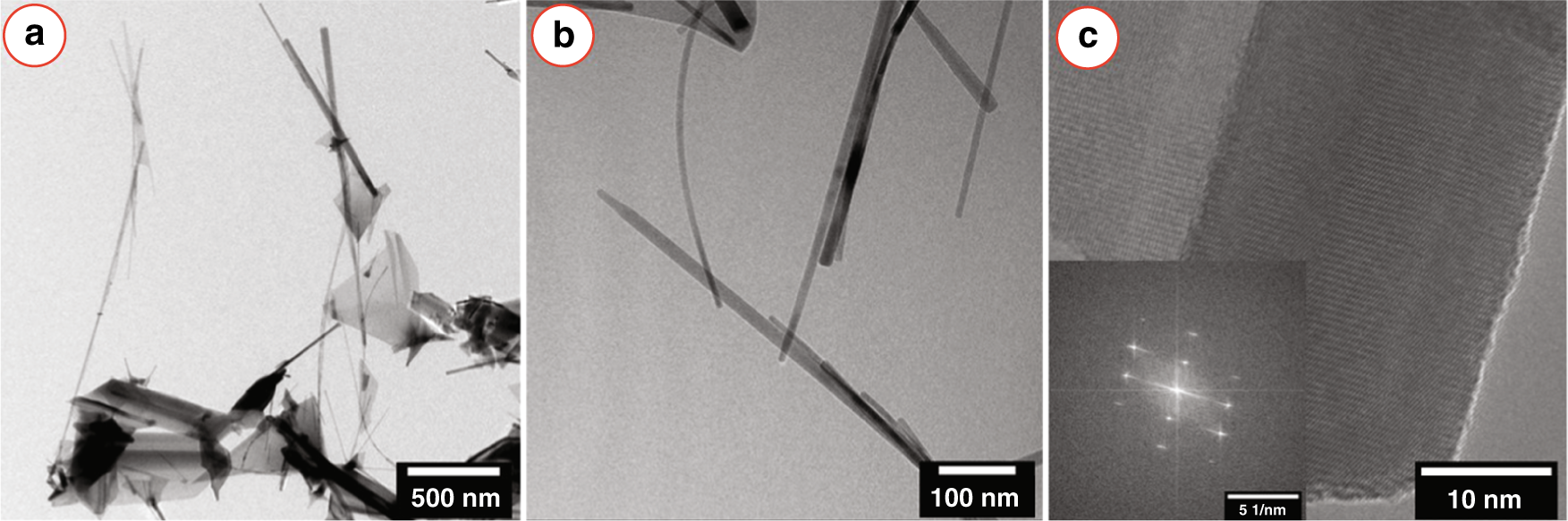

a Bright field TEM overview image showing ZnO nanowires with several micrometer length and layered crystalline ZnO nanosheets. b Close up of some individual nanowire structures. c High-resolution TEM of individual ZnO nanowire with pronounced crystallinity, as evident from the fast Fourier transform (inset). The particular sample for TEM analysis was prepared using a source temperature of 1000 °C
