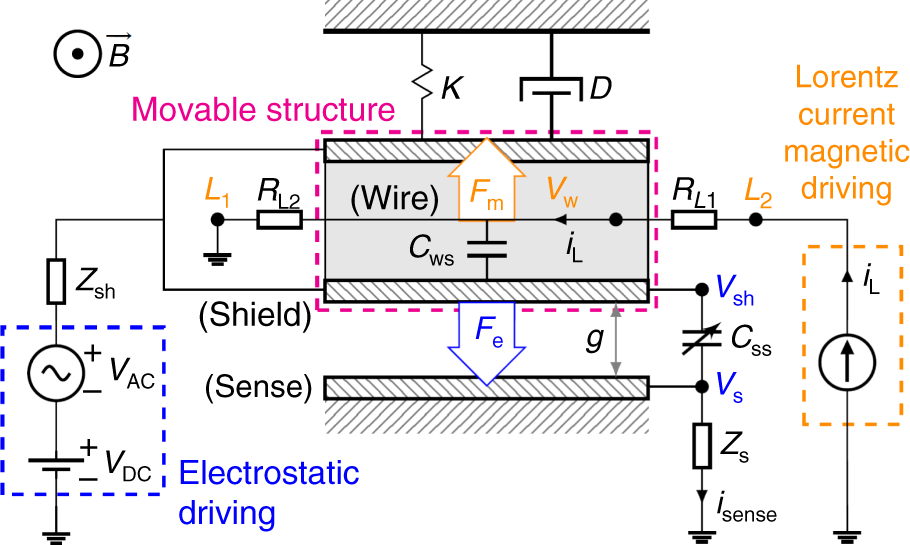

Fig. 1: Principle of operation of a shielded Lorentz-force magnetometer.
From: Design, fabrication, characterization and reliability study of CMOS-MEMS Lorentz-force magnetometers
The structure moves under the action of the electrostatic and/or magnetic driving, and the movement is sensed by the sense electrode.
