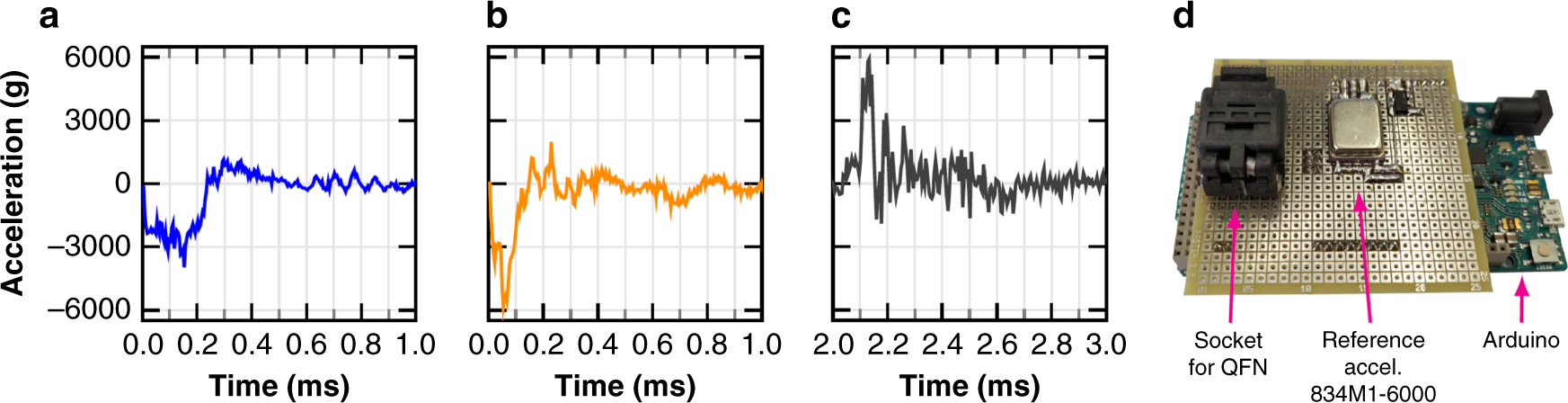

Fig. 15: Recorded acceleration values for the X, Y and Z shock tests and measurement setup.
From: Design, fabrication, characterization and reliability study of CMOS-MEMS Lorentz-force magnetometers
a X-shock test results. b Y-shock test results. c Z-shock test results. d Setup for recording acceleration during the shock tests.
