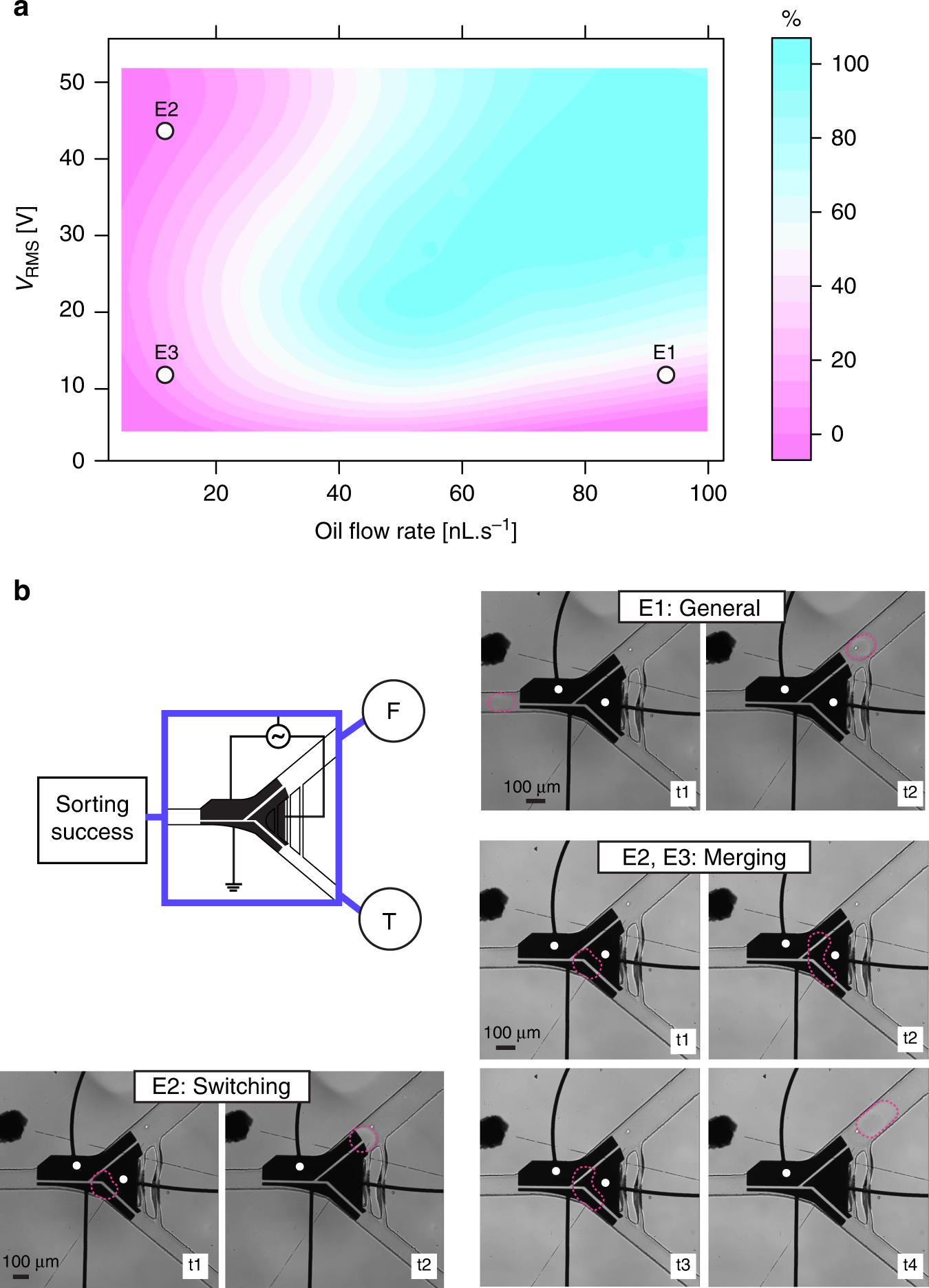

Fig. 3: Evaluating the sorting efficiency at different flow rates and under different electric potential conditions.
From: Droplet digital microfluidic system for screening filamentous fungi based on enzymatic activity
