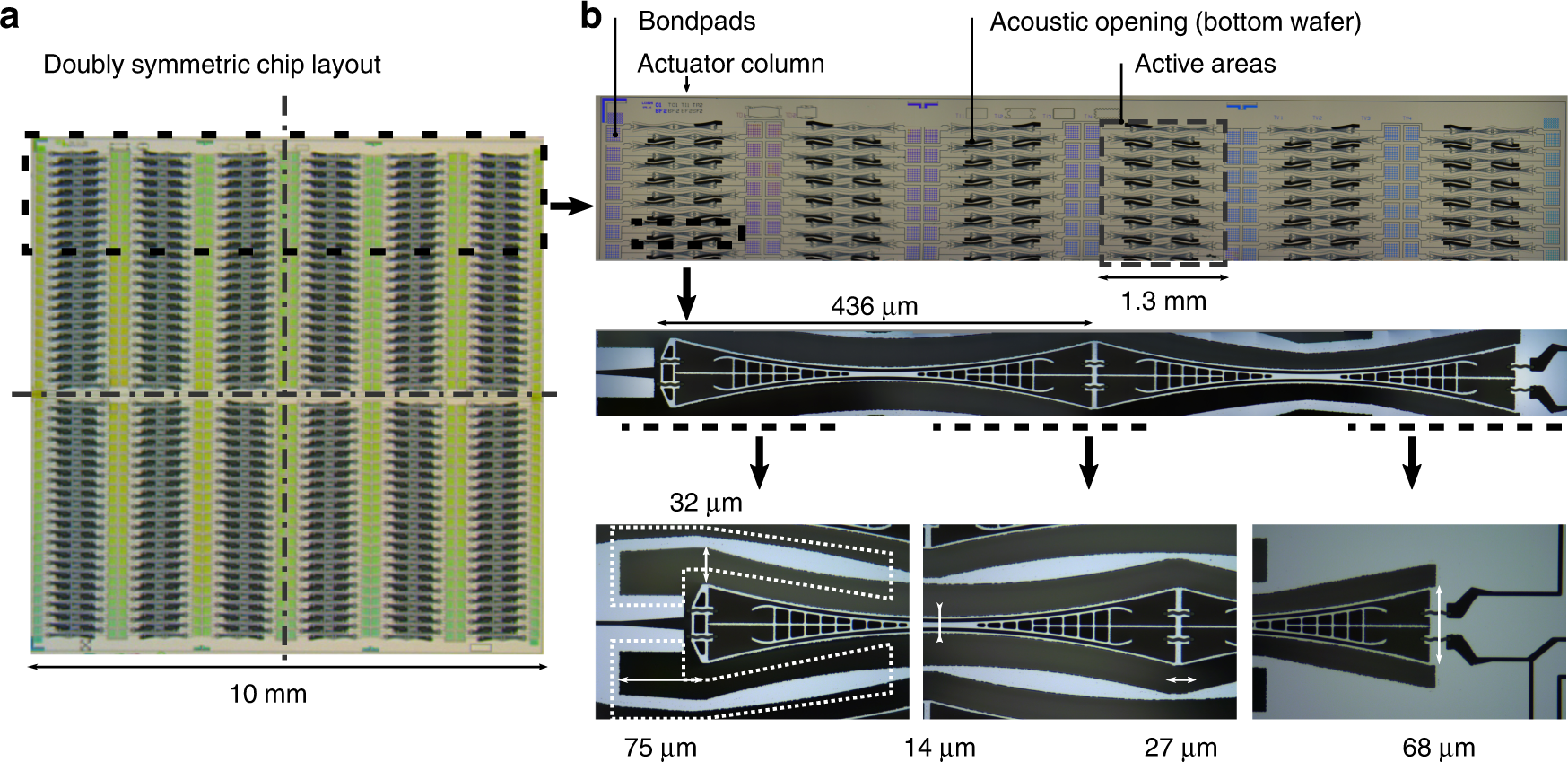

Fig. 3: Fabricated MEMS μSpeaker device.
From: The push-pull principle: an electrostatic actuator concept for low distortion acoustic transducers
a Device layer top view revealing actuator arrangement. b Partial view of top view and views of a push-pull actuator with geometric dimensions
