Fig. 2: Theoretical validation of the ultrasonic measurement principle.
From: Noninvasive fluid bubble detection based on capacitive micromachined ultrasonic transducers

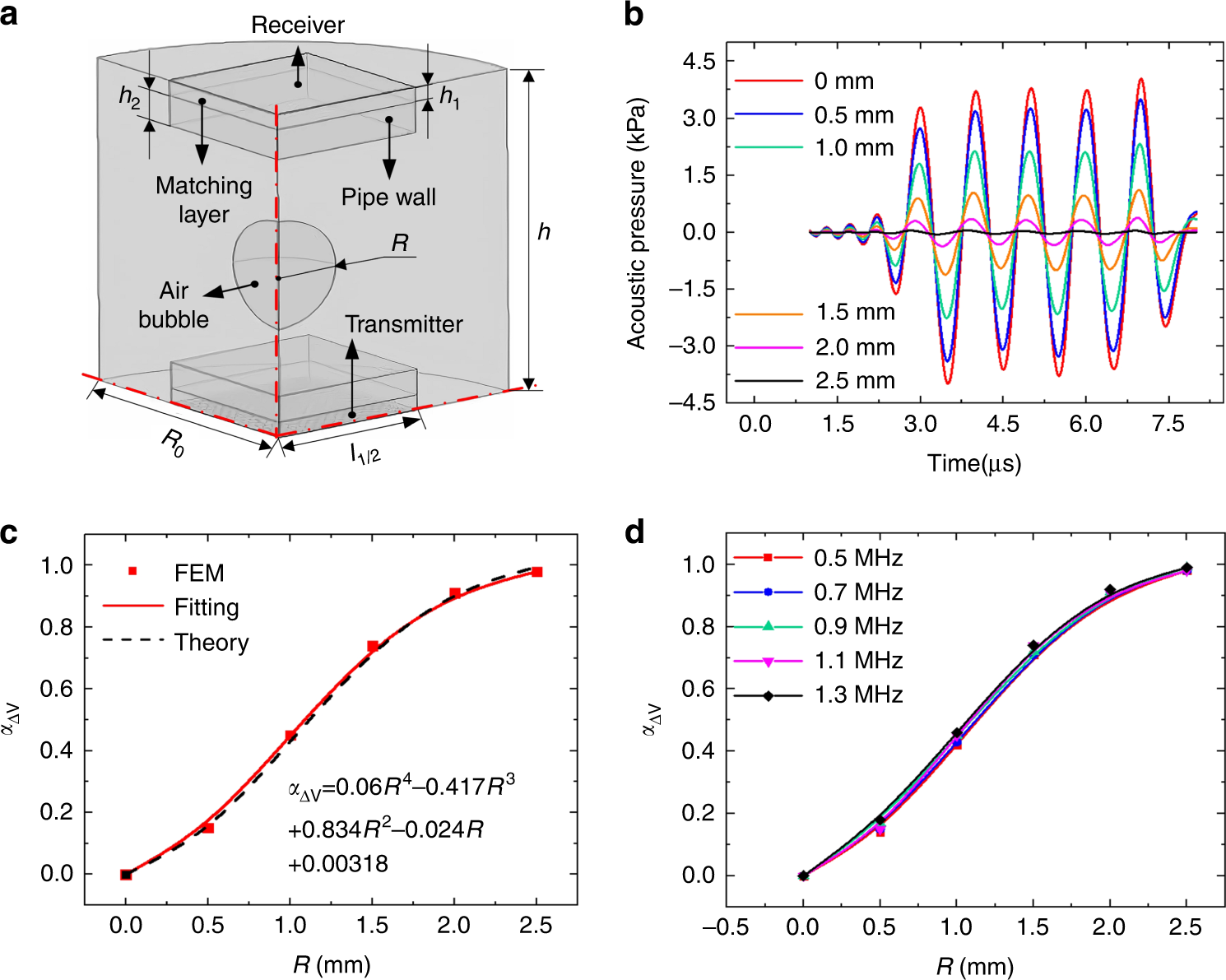

a FEM model. b Waveforms of the received signals under bubbles with radii varying from zero to 2.5 mm. c Comparison between FEM simulation and theoretical analyses. d Simulated received voltage variations under different frequencies
