Fig. 4: Structural and electrical properties of printed silver devices.
From: Aerosol jet printing of piezoelectric surface acoustic wave thermometer

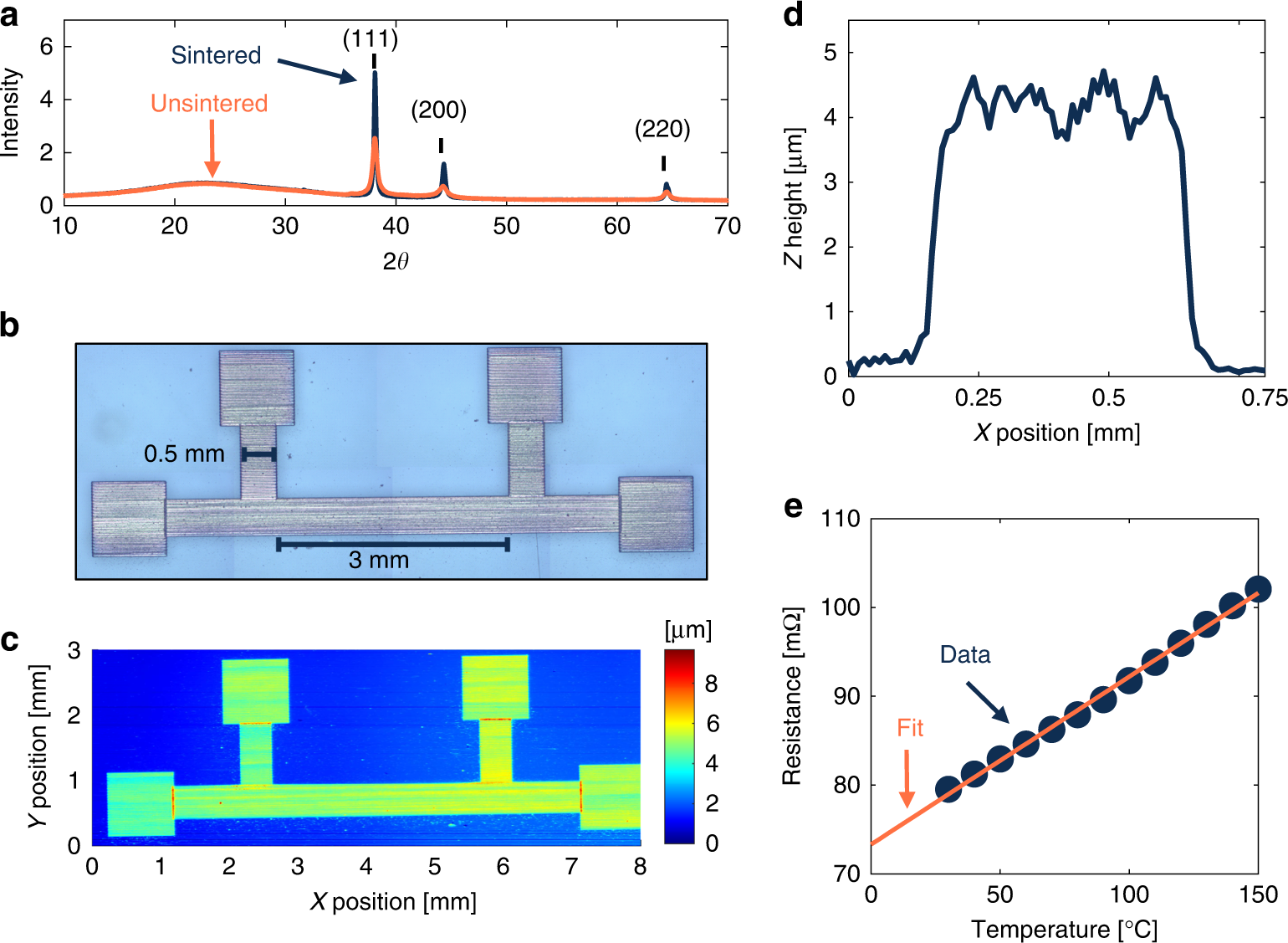

a X-ray diffraction spectra of Clariant silver nanoparticle ink deposited on a glass slide, before and after sintering for 1 h at 200 ∘C. Crystal planes of the silver film are labeled above the respective peaks. b Dimensionally annotated stitched microscope image of the printed 4-point device for electrical characterization. c Stylus profilometry map of the printed 4-point structure. d Mean line profile of the effective line in the 4-point device. e Resistance vs. temperature plot of the printed silver 4-point structure
