Fig. 5: Design and profile of the printed SAW device.
From: Aerosol jet printing of piezoelectric surface acoustic wave thermometer

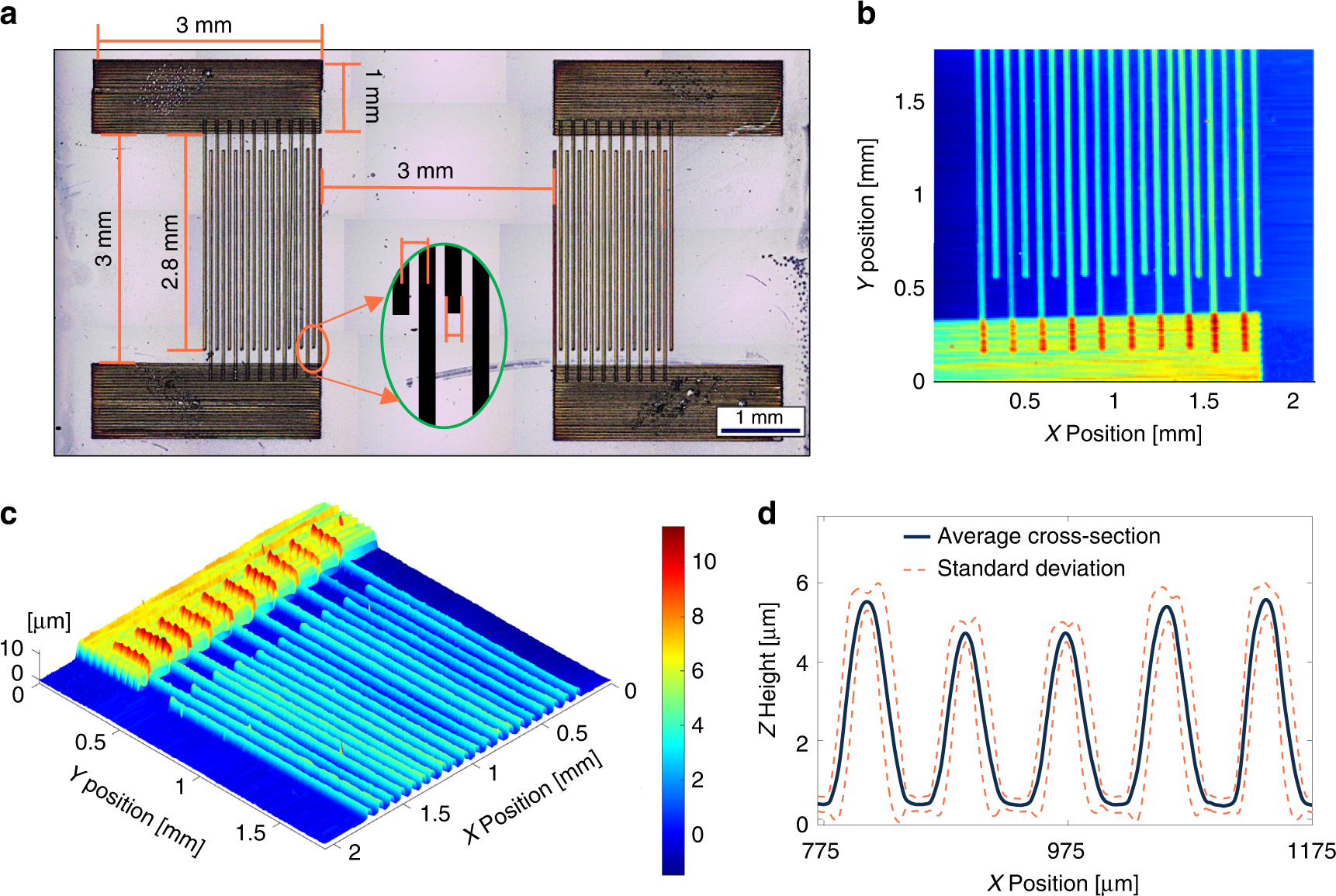

a Stitched microscope images of a printed SAW device annotated with the dimensions. Inset image defines effective width and pitch of electrodes. b, c Stylus profilometry map of printed SAW device. d Average height and width of printed electrode fingers from 3D scans
