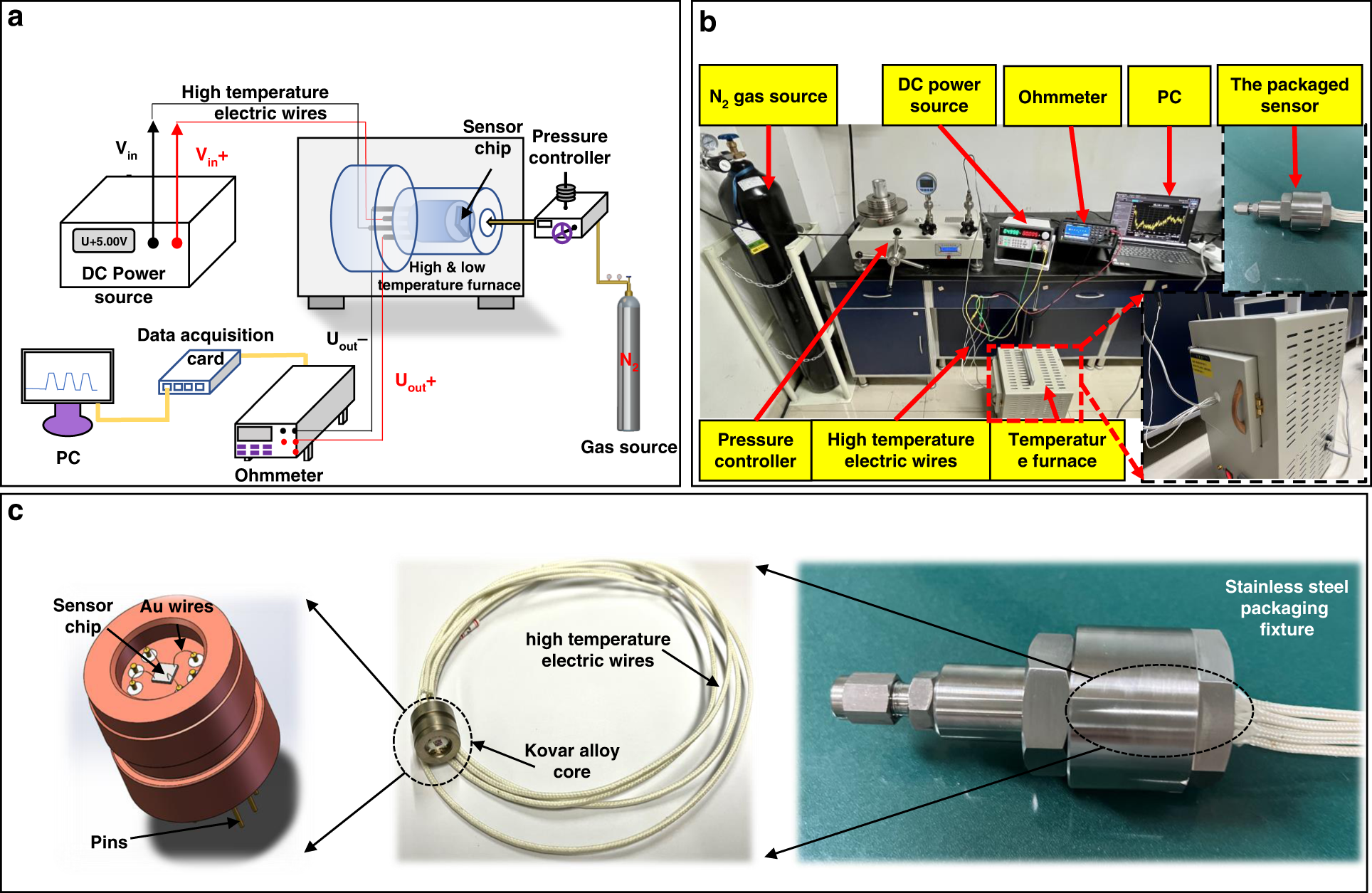

Fig. 9

Experimental platform. a Schematic of the closed-loop test platform for the piezoresistive high-temperature pressure sensor. b Experimental system for the piezoresistive high-temperature pressure sensor. c High-temperature packaging details of the sensor chip
