Fig. 2: Synchronization, spacing, and merging of two sets of reinjected droplets.

From: Self-synchronization of reinjected droplets for high-efficiency droplet pairing and merging

Fig. 2: Synchronization, spacing, and merging of two sets of reinjected droplets.The alternative text for this image may have been generated using AI.

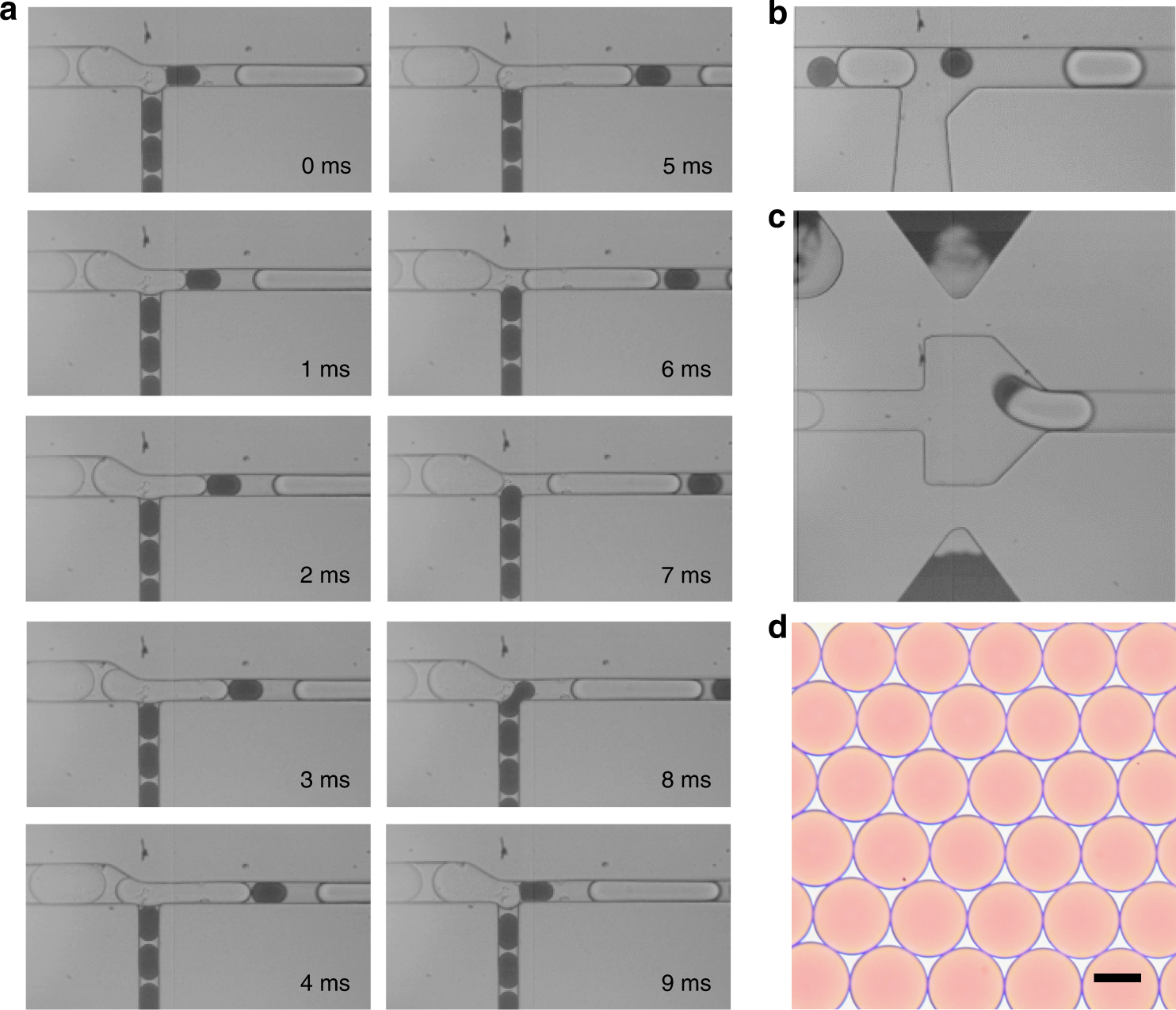

a Frame-by-frame micrographs showing the process of droplet synchronization in the constriction channel. b The synchronized droplets are spaced by the oil flow introduced from the T-junction. c Pairs of droplets are in close contact in the expansion chamber and coalesce under the electric field. d Optical micrograph showing merged droplets with uniform size and color distribution. Scale bar: 50 μm
