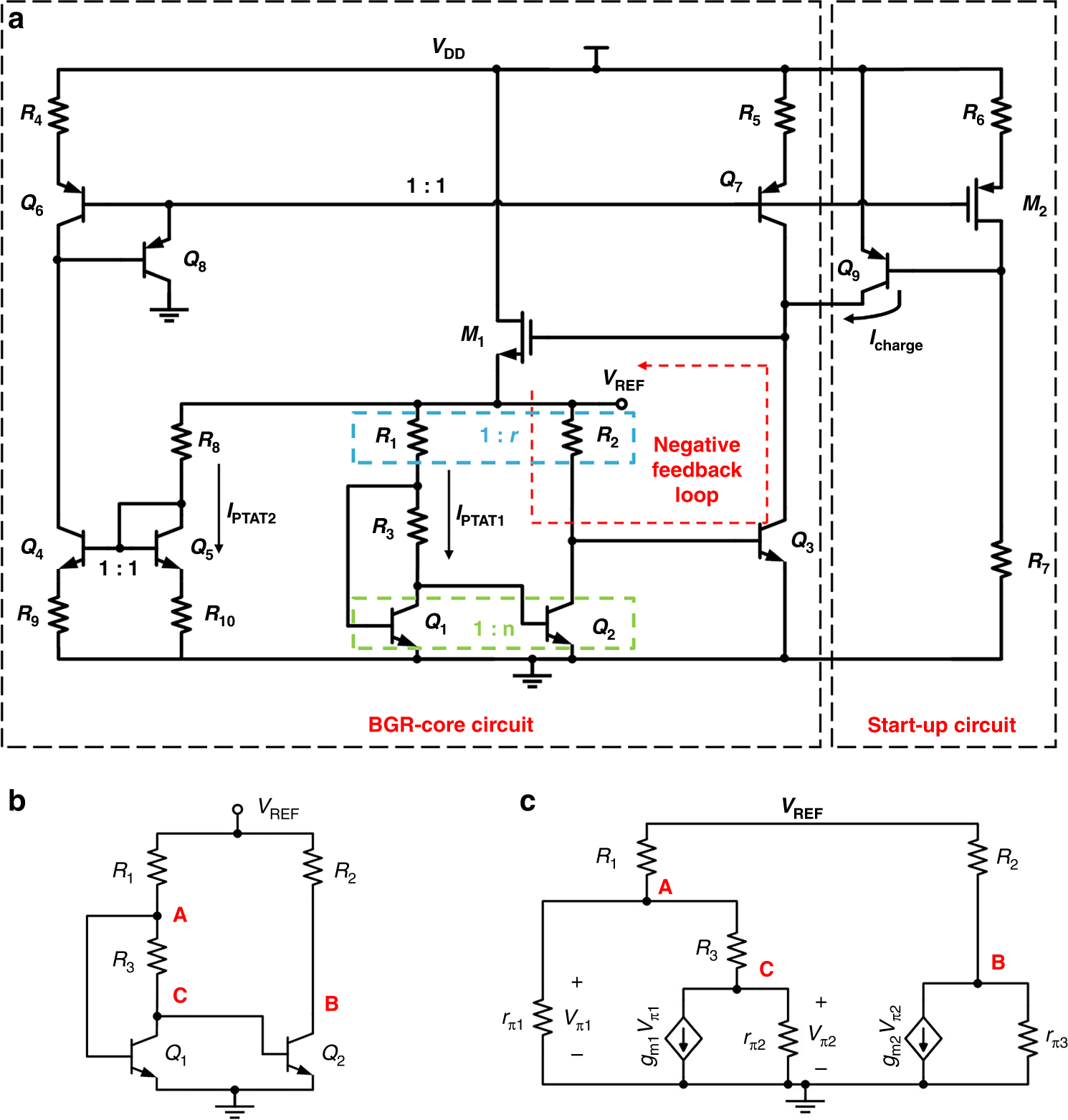

Fig. 3: Specific topology of proposed BGR.
From: A 0.82 μVrms ultralow 1/f noise bandgap reference for a MEMS gyroscope
a Schematic of the proposed BGR. b Simplified circuit of the proposed BGR. c Corresponded small-signal model of the simplified circuit
