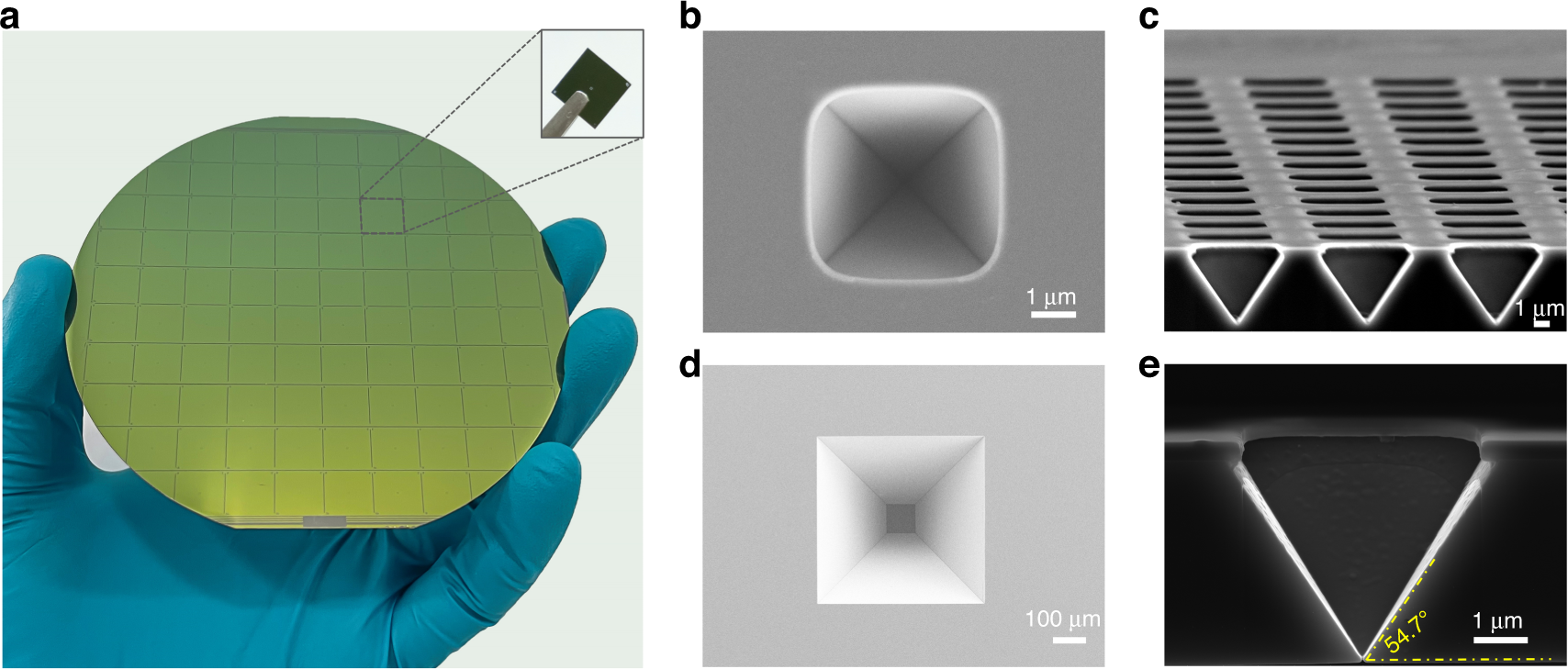

Fig. 3: Photograph and SEM images of the chip during fabricaiton.

a Photograph of a wafer after the first step. b SEM micrograph of a pyramid pit. c Cross-sectional SEM image of a pyramid pit array. d SEM micrograph of the back etching window. e Cross-sectional SEM image of an individual nanopore with a size of 15 nm
