Fig. 5: Single-projection (1 × 1 mm) parts. | Microsystems & Nanoengineering

Fig. 5: Single-projection (1 × 1 mm) parts.

From: Ultra-resolution scalable microprinting

Fig. 5

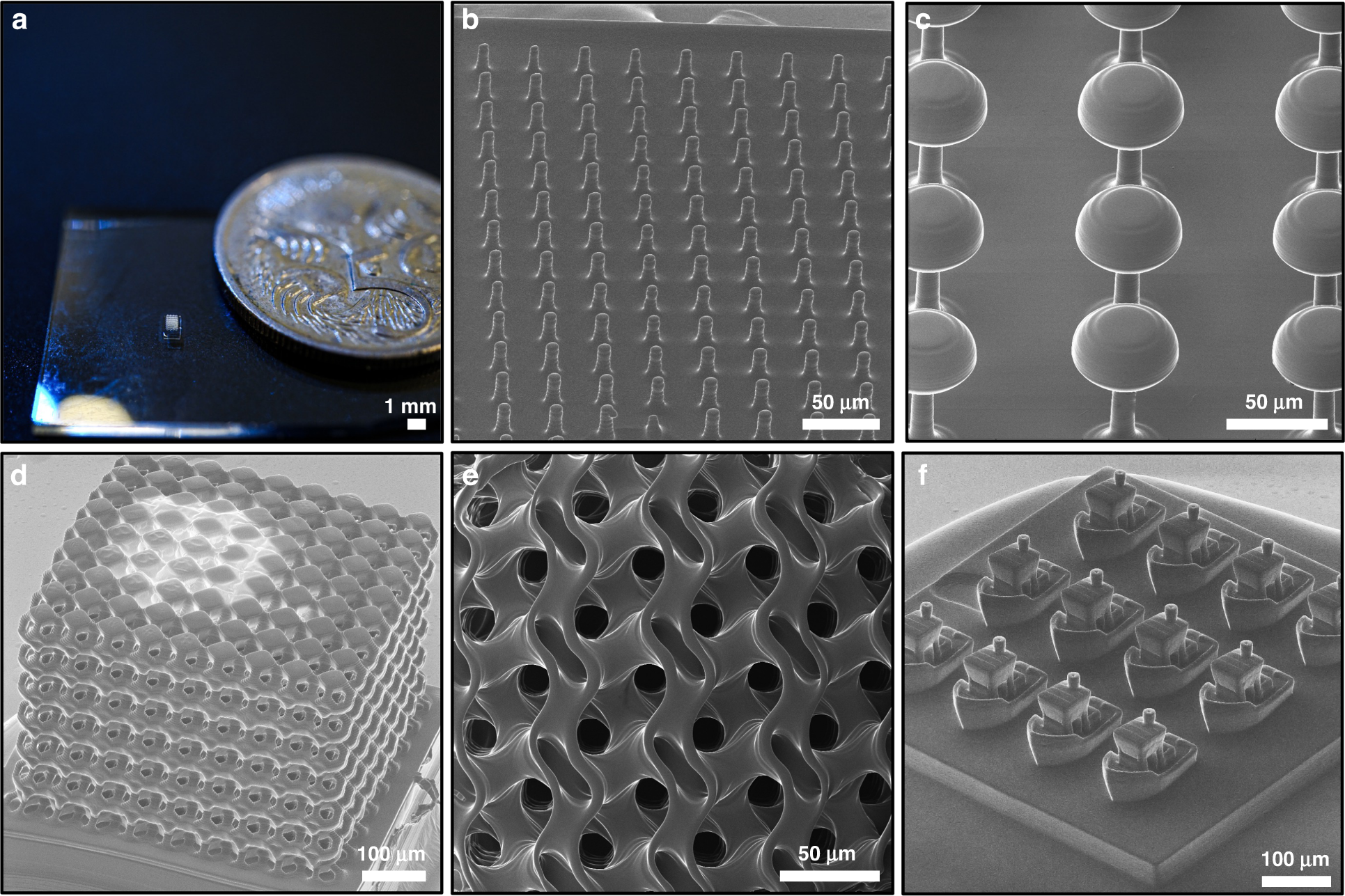

Parts imaged using DLSR (a) and HIM (b–f). a Kelvin-cell lattice imaged next to an Australian 5c coin, scale bar 1 mm. b Array of micropillars 10 μm in diameter and 40 μm tall. Scale bar 50 μm. c Bio-inspired mushroom structures, scale bar 50 μm. d Kelvin-cell lattice as shown in (a), scale bar 100 μm. e Top-down view of gyroid lattice, scale bar 50 μm. d 3DBenchy boat array, scale bar 100 μm
