Fig. 2: Schematic illustration of the trap-and-release process.

From: On-demand light-driven release of droplets stabilized via a photoresponsive fluorosurfactant

Fig. 2: Schematic illustration of the trap-and-release process.The alternative text for this image may have been generated using AI.

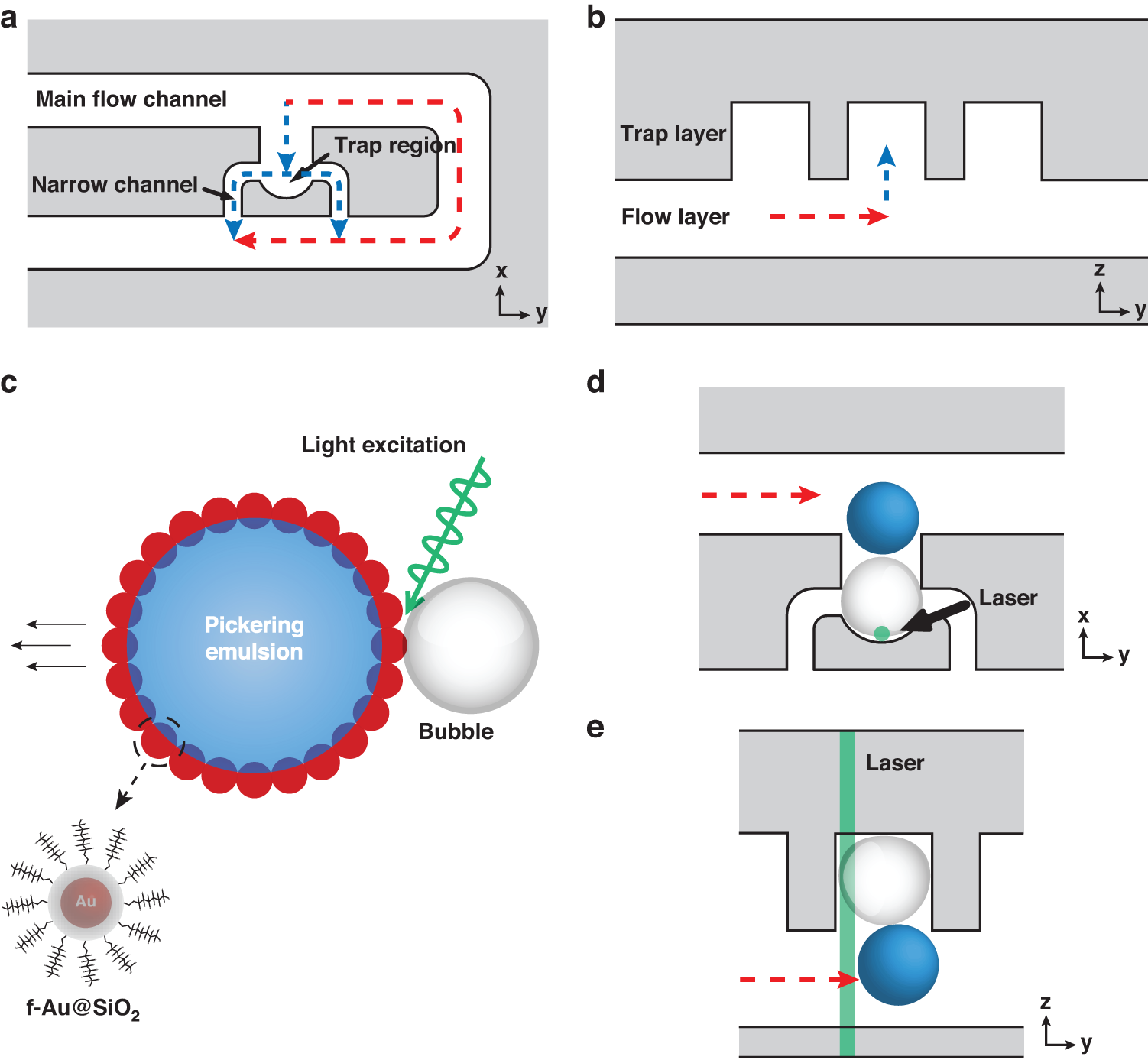

a Hydrodynamic trap (top view). b Floating trap (side view). c Light-induced bubble generation for droplets stabilized by f-Au@SiO2. The photothermal response of f-Au@SiO2 vaporizes the oil phase under laser illumination. The laser propagates along the +z direction. The expansion of the vapor bubble transferring momentum to push the droplet in a designated direction is applied to release the droplet trapped in a d hydrodynamic trap and e floating trap
