Fig. 6: Porous PDMS membrane fabrication via high-pressure saturated steam method proposed by Jang et al. (2019).

From: Polymeric and biological membranes for organ-on-a-chip devices

Fig. 6

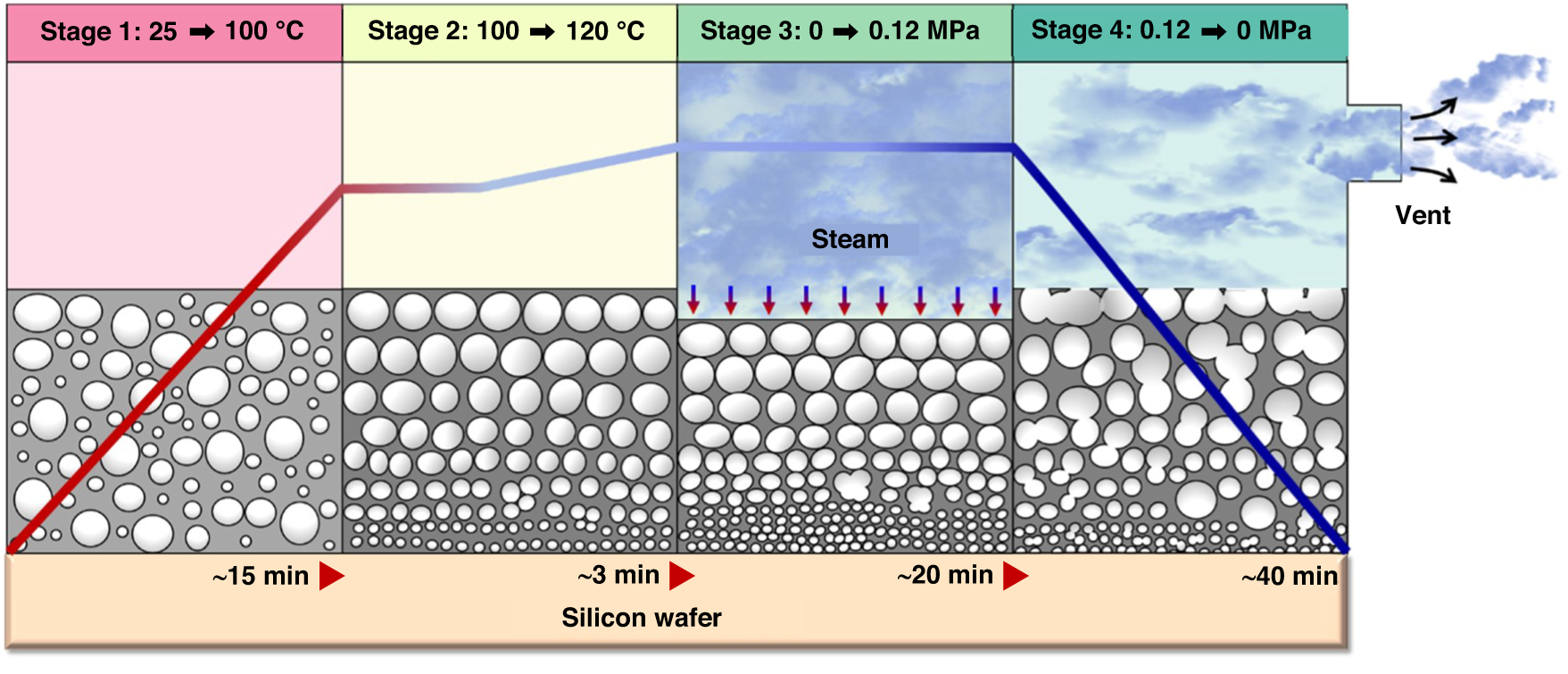

Schematic illustration of 4 stages: 1st—initial heating process to 100 °C, 2nd—temperature increase from 100 °C to 120 °C for pressurization, 3rd—pressurization at 0.12 MPa for 20 min, 4th—pressure release for 40 min. Image from Fig. 1 reference79
