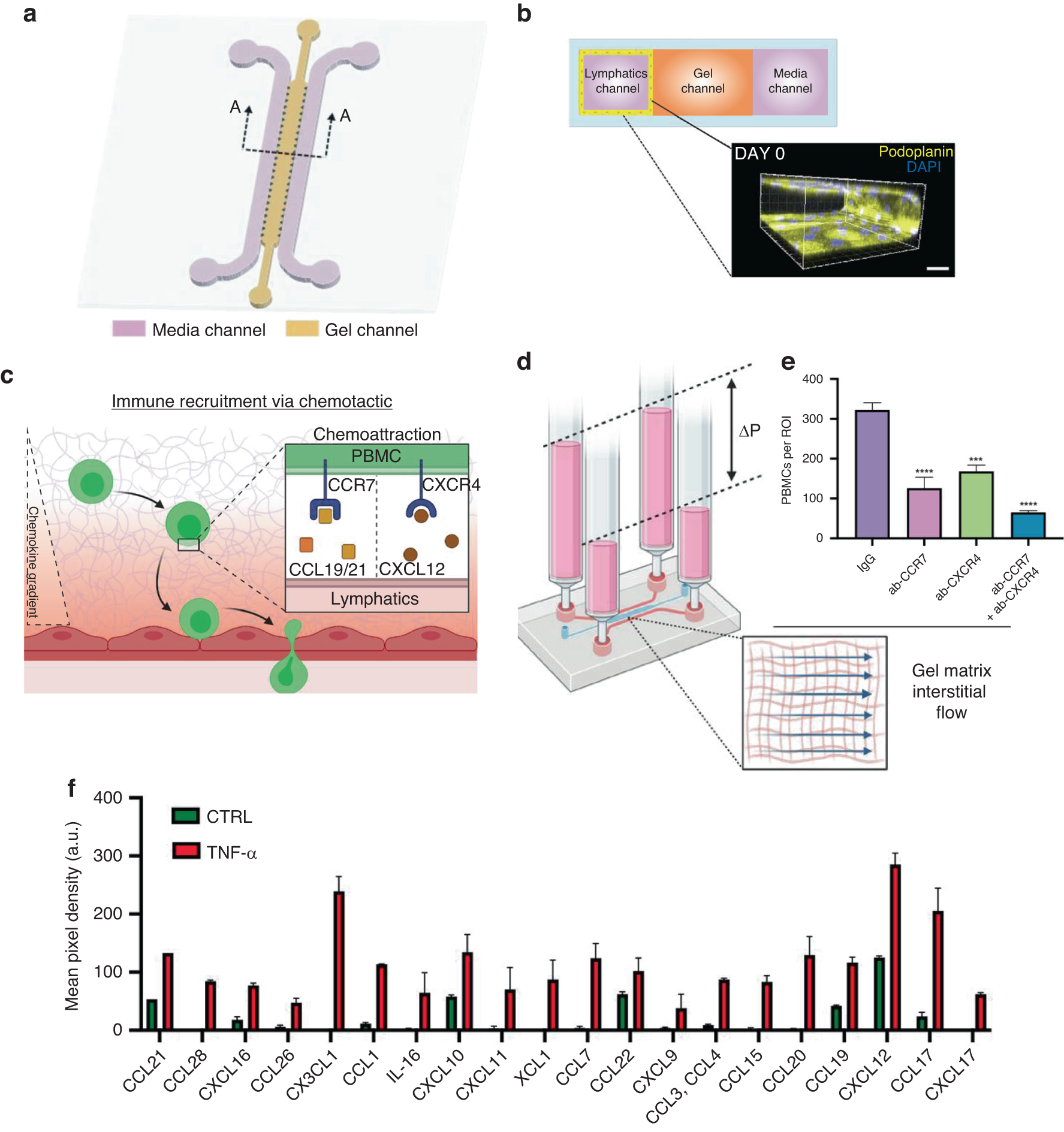

Fig. 12: Microfluidic system mimicking human lymphatic microvasculature for physio-/pathological transport studies.
