Fig. 2: Deformability measurement of breast cancer cell lines with various level of invasiveness. | Microsystems & Nanoengineering

Fig. 2: Deformability measurement of breast cancer cell lines with various level of invasiveness.

From: Experimental measurement and numerical modeling of deformation behavior of breast cancer cells passing through constricted microfluidic channels

Fig. 2

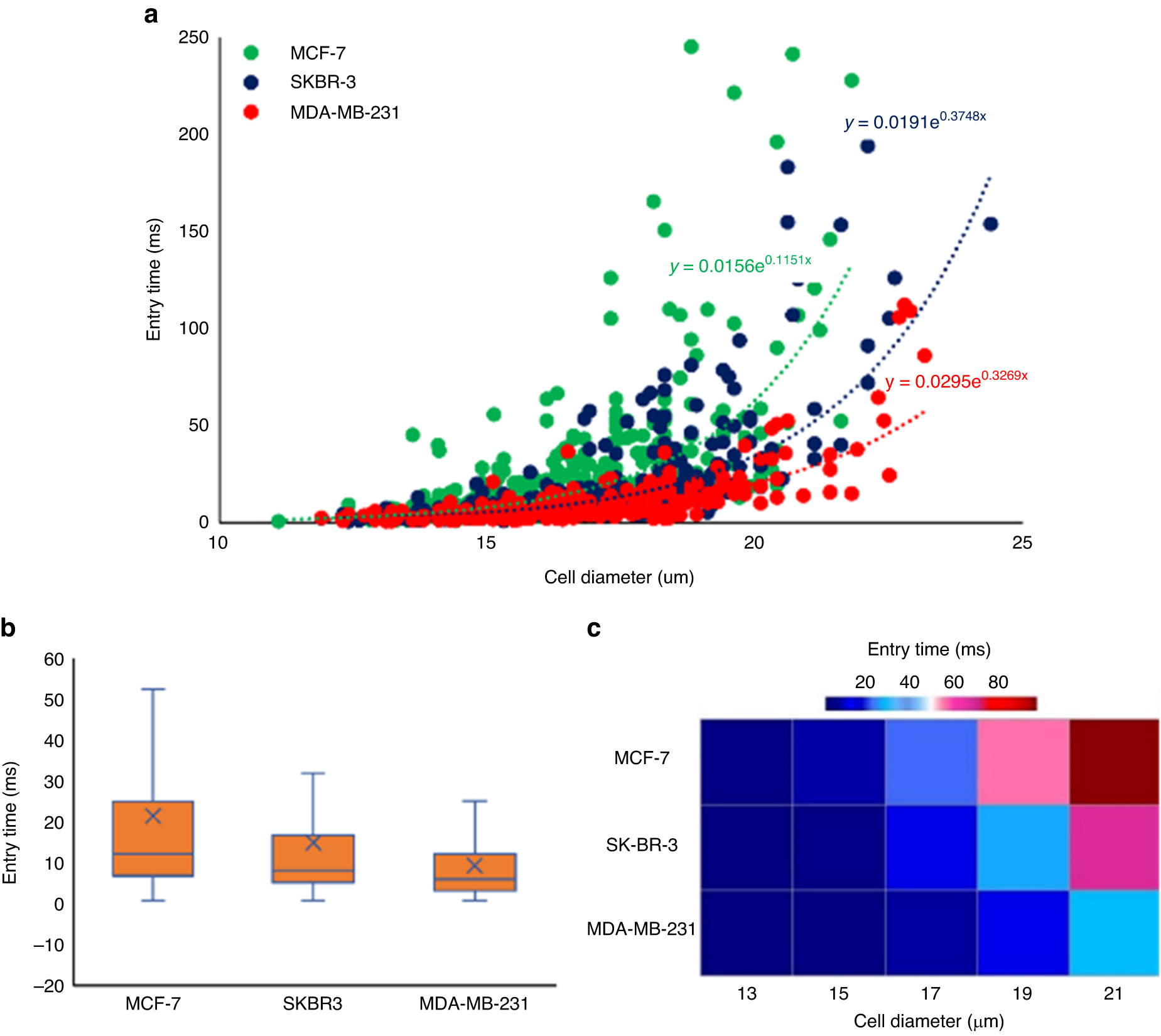

Comparison of the deformability of breast cancer cell lines (MCF-7, SK-BR-3, and MDA-MB-231) using device #2 by illustrating the measured data with a scatter graph showing all points of entry time vs cell diameter for every single cell, b box plot of entry time of all captured data in the three cell lines, and c the heat map for average entry time in various cell diameter
