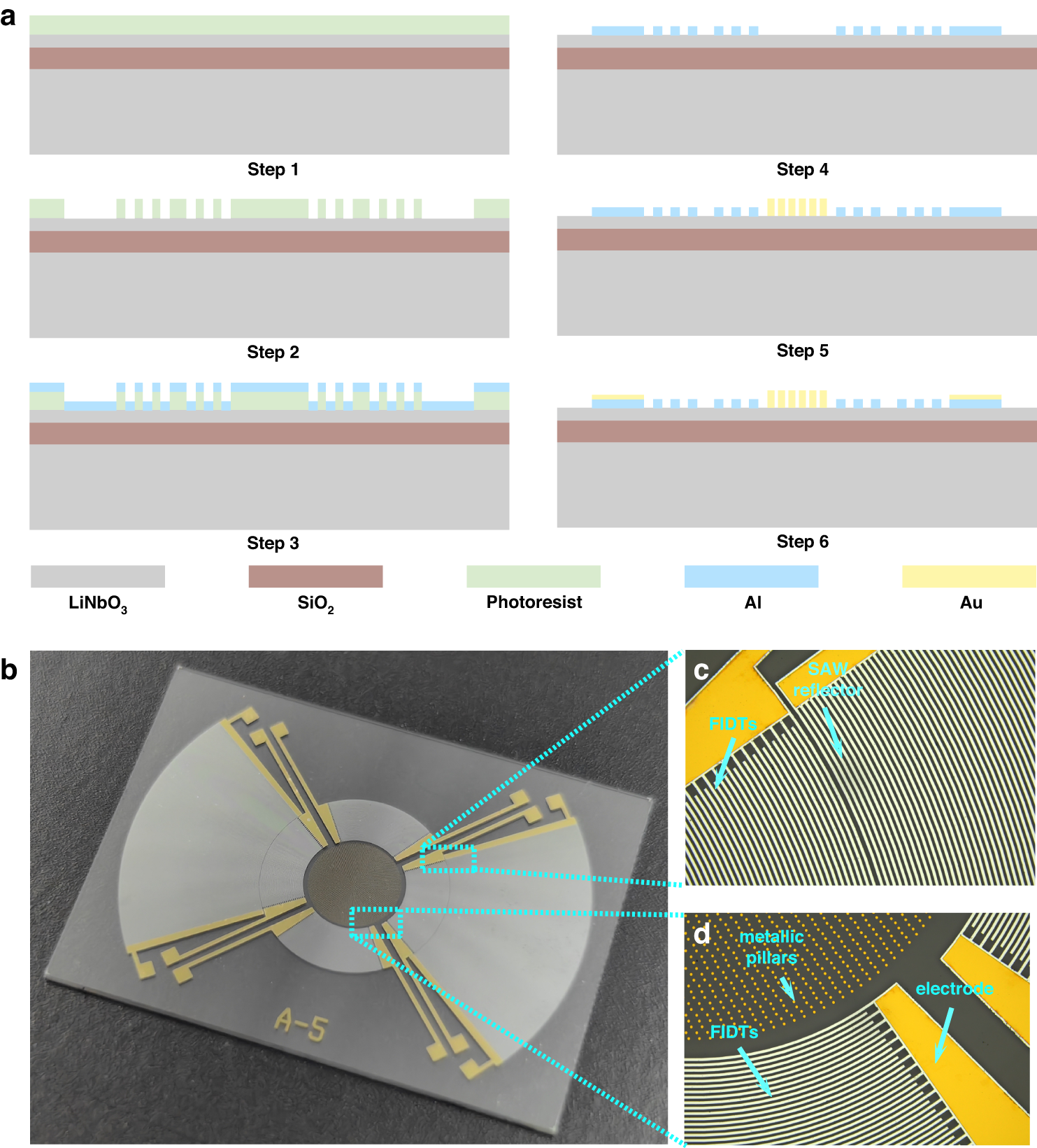

Fig. 3: Fabrication process.
From: A toroidal SAW gyroscope with focused IDTs for sensitivity enhancement
a A lift-off process is used to manufacture the required structures. Micrograph of b the SAW gyroscope. c Zoomed-in image of the FIDTs and SAW reflectors. d Zoomed-in view of the metallic pillars, FIDTs, and electrodes
