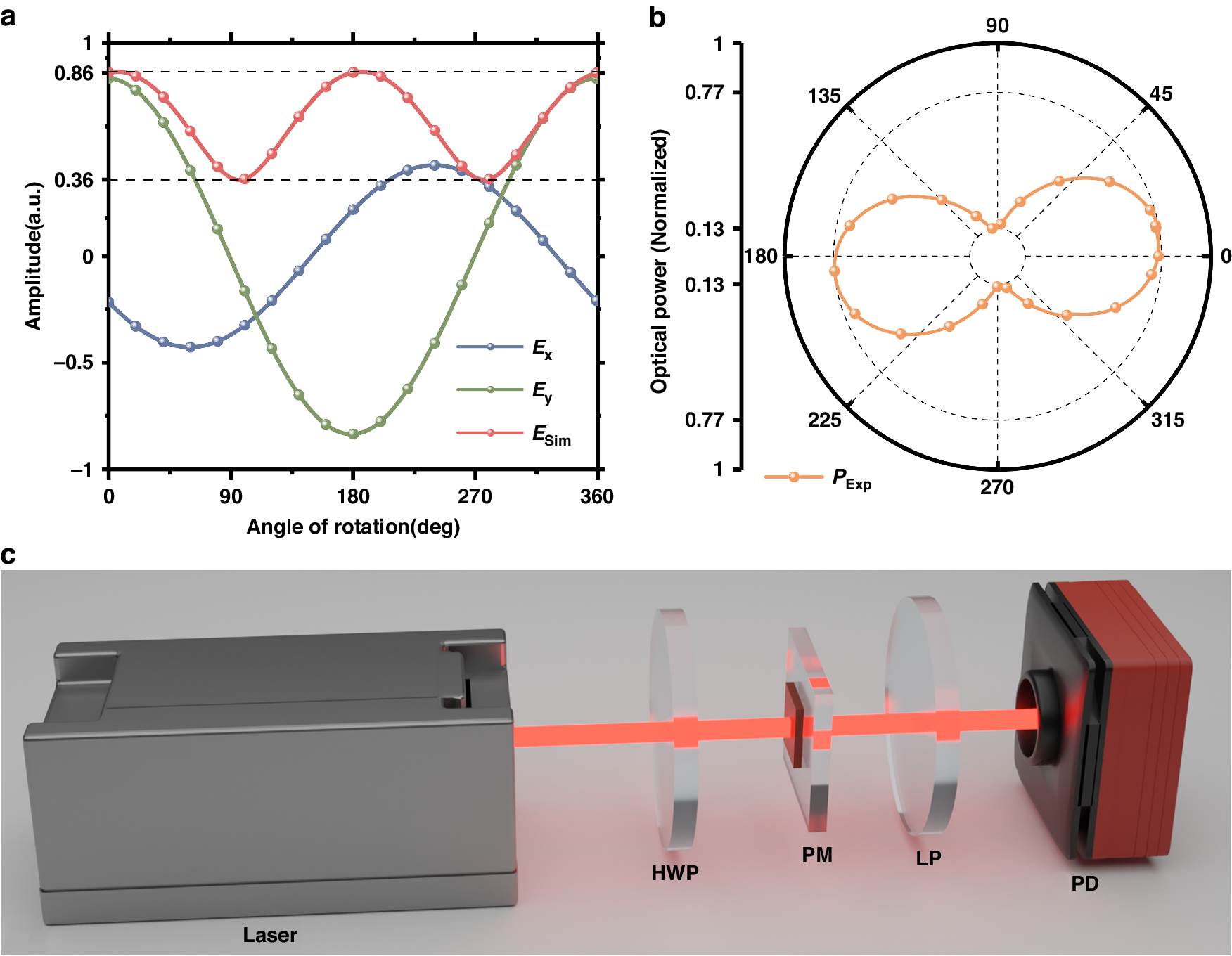

Fig. 3: Simulation results and experimental tests for the polarization-transformation metasurface.
From: Metasurface-integrated elliptically polarized laser-pumped SERF magnetometers
a Simulation results for the polarization-transformation metasurface. The red line illustrates the amplitude of the transmitted beam at various angles, while the blue and green lines correspond to the x and y polarization components of the beam amplitude, respectively. b Experimental results for the optical power. c Schematic diagram of the testing process for the polarization-transformation metasurface
