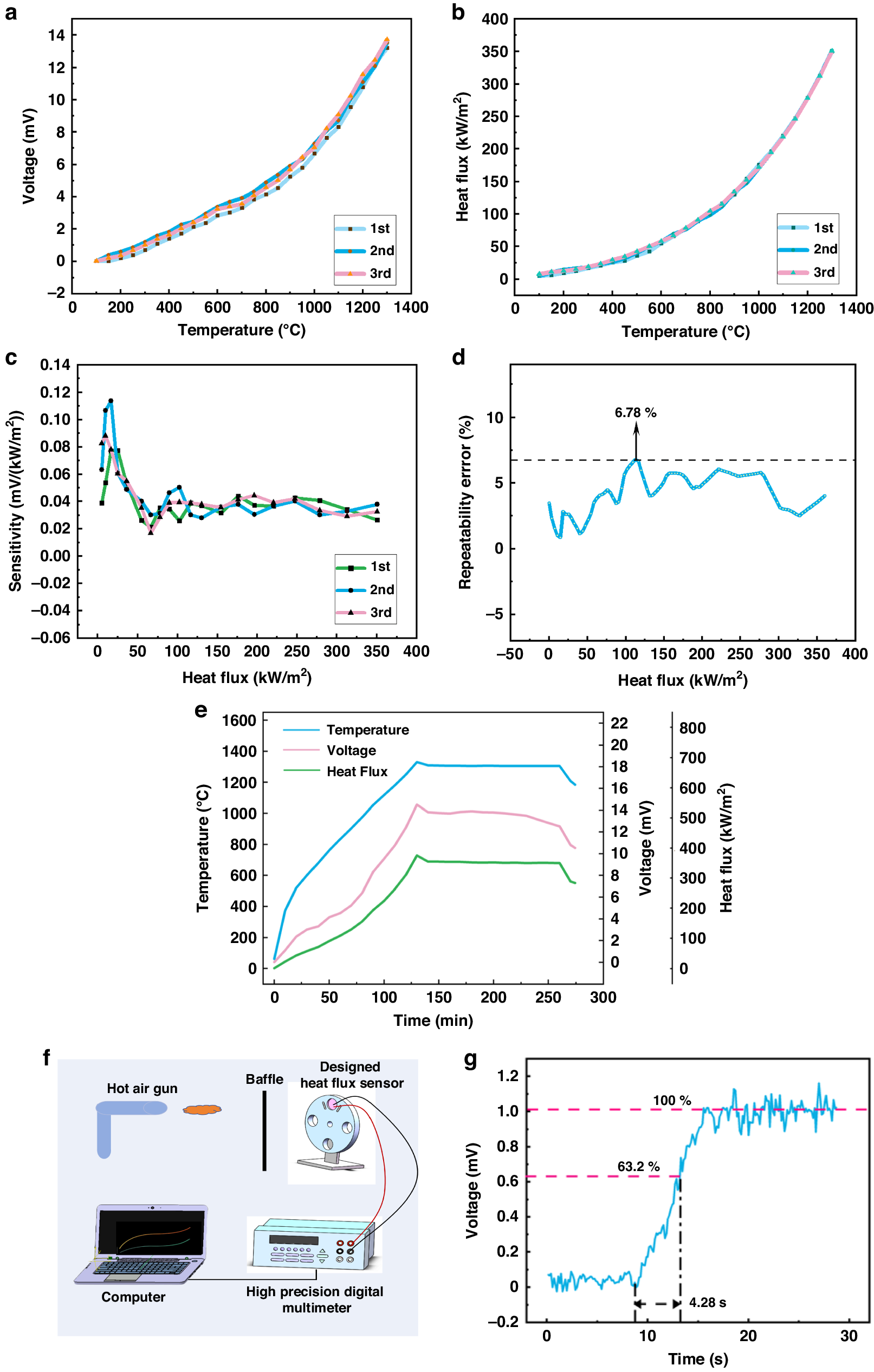

Fig. 7: Repeatability testing, durability testing, and dynamic testing of HFSs.
From: High temperature heat flux sensor with ITO/In2O3 thermopile for extreme environment sensing
a and b Designed and standard HFS repeatability curves. c Sensitivity distribution curve of the designed HFS. d Percentage error of repeatability testing. e High-temperature holding experiment. f Dynamic test platform. g Dynamic response results
