Fig. 12: Electrochemical performance results (CV). | Microsystems & Nanoengineering

Fig. 12: Electrochemical performance results (CV).

From: Sustainability inspired fabrication of next generation neurostimulation and cardiac rhythm management electrodes via reactive hierarchical surface restructuring

Fig. 12: Electrochemical performance results (CV).

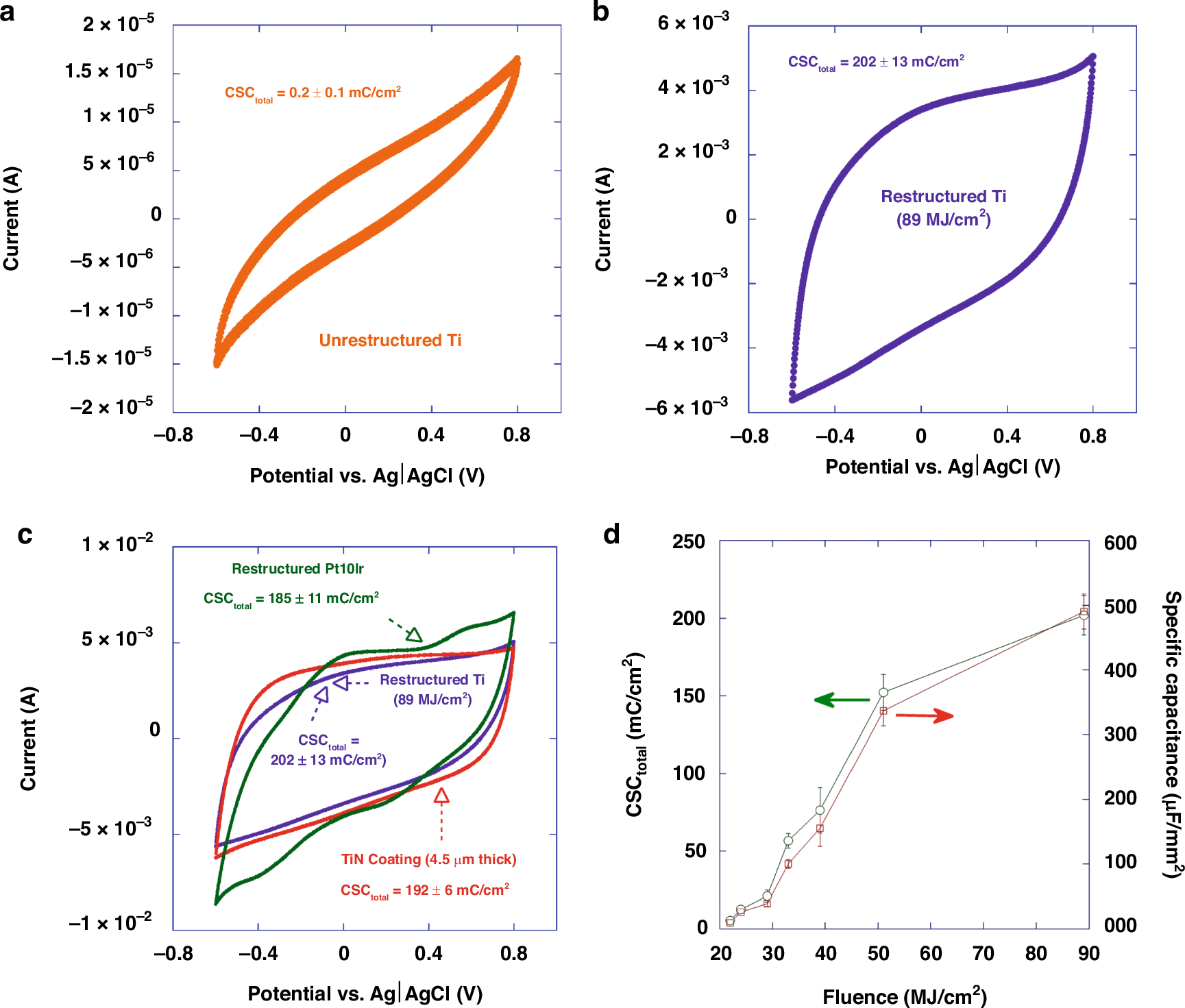

Representative cyclic voltammograms in room temperature PBS of a an un-restructured Ti electrode, b a Ti electrode restructured at 89 MJ/cm2 fluence, c a 4.5 µm-thick TiN coating, restructured Pt10Ir17 and Ti electrode restructured at 89 MJ/cm2 fluence for the sake of comparison and d plot of CSCtotal and specific capacitance of reactively restructured Ti electrodes as a function of fluence
