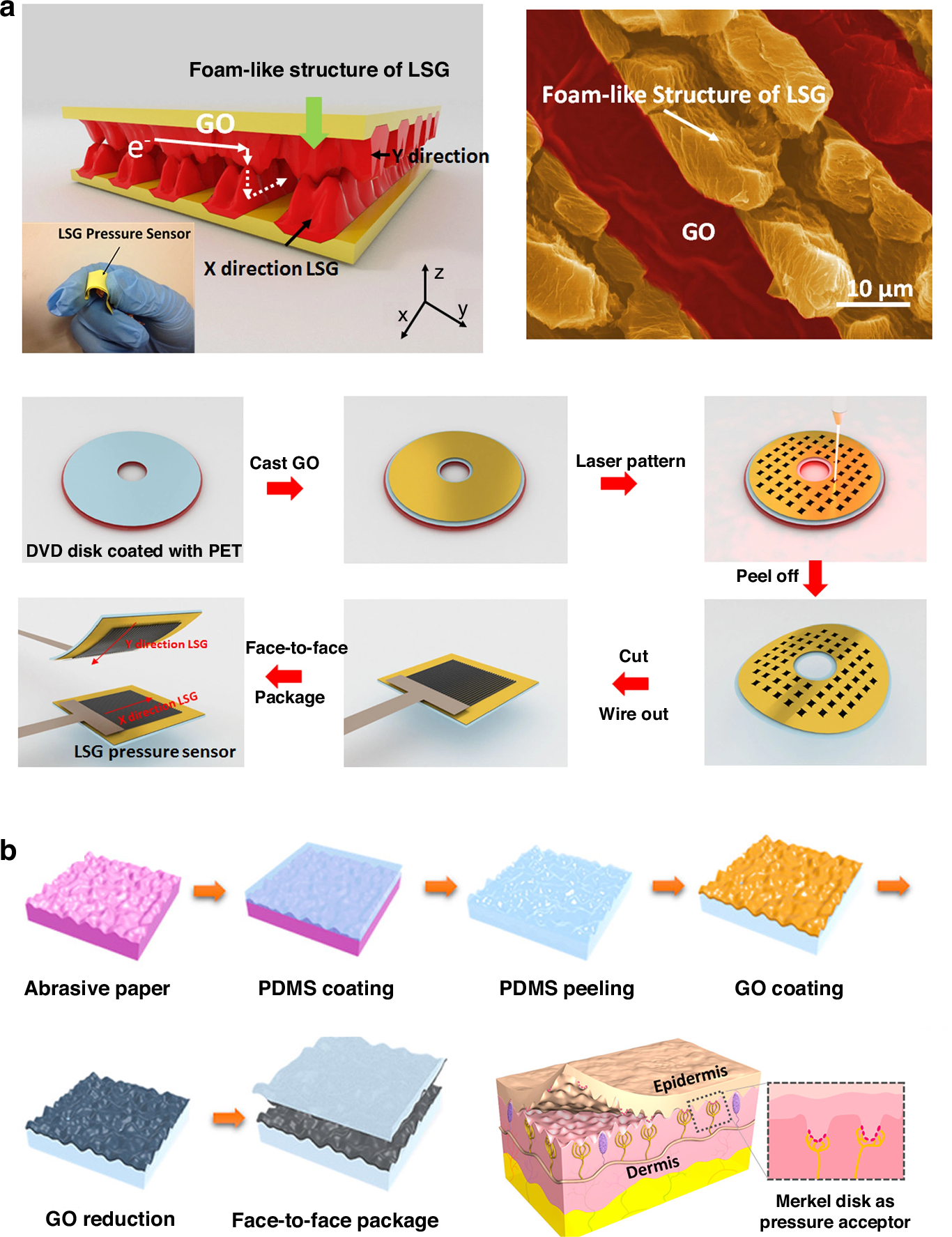

Fig. 16: Flexible pressure sensors.
From: Graphene MEMS and NEMS
a A laser-scribed graphene-based pressure sensor. This figure part shows a schematic and SEM image of the foam-like structure of laser-scribed graphene and the fabrication process289. b The fabrication process of a bioinspired graphene pressure sensor with a randomly distributed spinosum microstructure291. Figures reproduced with permission from refs. 289,291
